Storage Devices, Mouse, & Audio
2

Power Safety
Before attempting to ac-
cess any of the internal
components of
computer please ensure
that the machine is not
connected to the AC
power, and that the ma-
chine is turned off. Also
ensure that all peripher-
al cables, including
phone lines, are discon-
nected from the comput-
er.

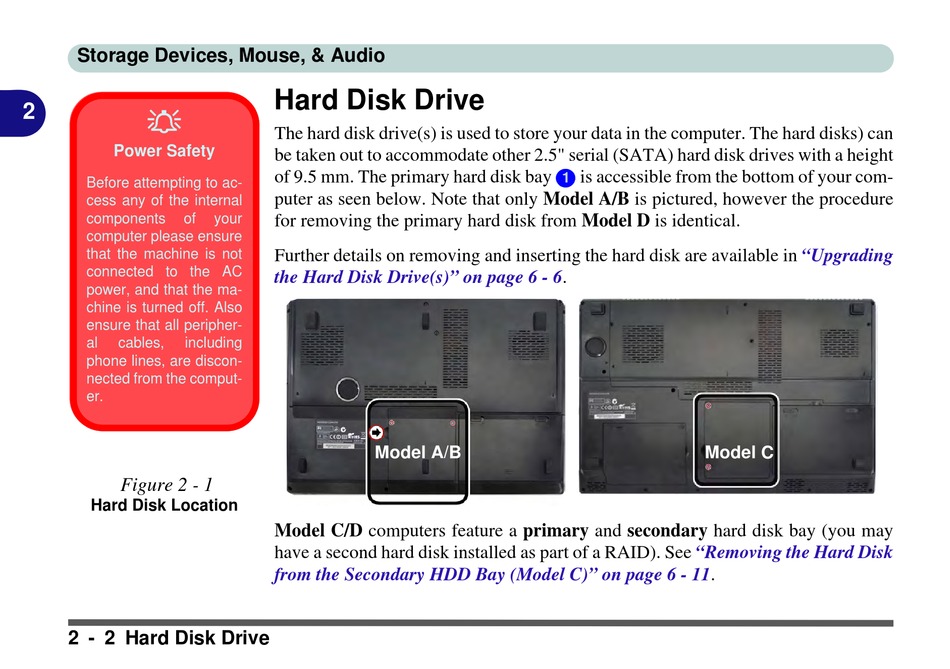

Figure 2 - 1
Hard Disk Location

2 - 2 Hard Disk Drive

Hard Disk Drive
The hard disk drive(s) is used to store your data in the computer. The hard disks) can
be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height
of 9.5 mm. The primary hard disk bay
puter as seen below. Note that only Model A/B is pictured, however the procedure
your
for removing the primary hard disk from Model D is identical.
Further details on removing and inserting the hard disk are available in
the Hard Disk Drive(s)" on page 6 -
Model A/B
Model C/D computers feature a primary and secondary hard disk bay (you may
have a second hard disk installed as part of a RAID). See
from the Secondary HDD Bay (Model C)" on page 6 -
is accessible from the bottom of your com-
1
6.
Model C
"Removing the Hard Disk
11.
"Upgrading
