System Map: Bottom View - Models A & B - EUROCOM Notebook V12.2.00 User Manual

Quick Start Guide
1

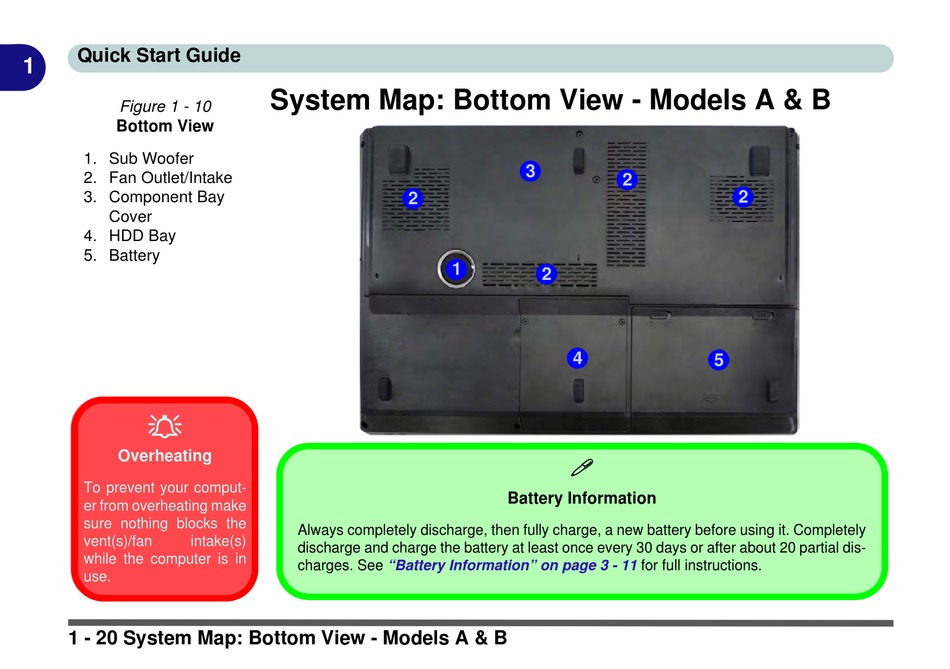

Figure 1 - 10
Bottom View
1. Sub Woofer
2. Fan Outlet/Intake
3. Component Bay
Cover
4. HDD Bay
5. Battery

Overheating
To prevent your comput-
er from overheating make
sure nothing blocks the
vent(s)/fan intake(s)
while the computer is in
use.
1 - 20 System Map: Bottom View - Models A & B
System Map: Bottom View - Models A & B
2
1
Always completely discharge, then fully charge, a new battery before using it. Completely
discharge and charge the battery at least once every 30 days or after about 20 partial dis-
charges. See "Battery Information" on page 3 - 11
3
2
2
4

Battery Information
for full instructions.
2
5
