Removing the Battery

If you are confident in undertaking upgrade procedures yourself, for safety reasons
it is best to remove the battery. Before removing the battery disconnect the AC/
DC adapter from the computer first. Note that only Model A/B is pictured, how-
ever the procedure for removing the battery from Model C is the same.
1. Turn the computer off, remove the AC/DC adapter and turn it over.
2. Slide the latch in the direction of the arrow.
1
3. Slide the latch in the direction of the arrow, and hold it in place.
2
4. Slide the battery in the direction of the arrow
levered up at point
4
5. Lift the battery out of the compartment
Battery
3
)
.
.
5
1
3
4
1
(note the Model C battery may be
2
5
2
Upgrading The Computer

Warranty Warning
Please check with your
service representative
before undertaking any
upgrade procedures to
find out if this will VOID
your warranty.

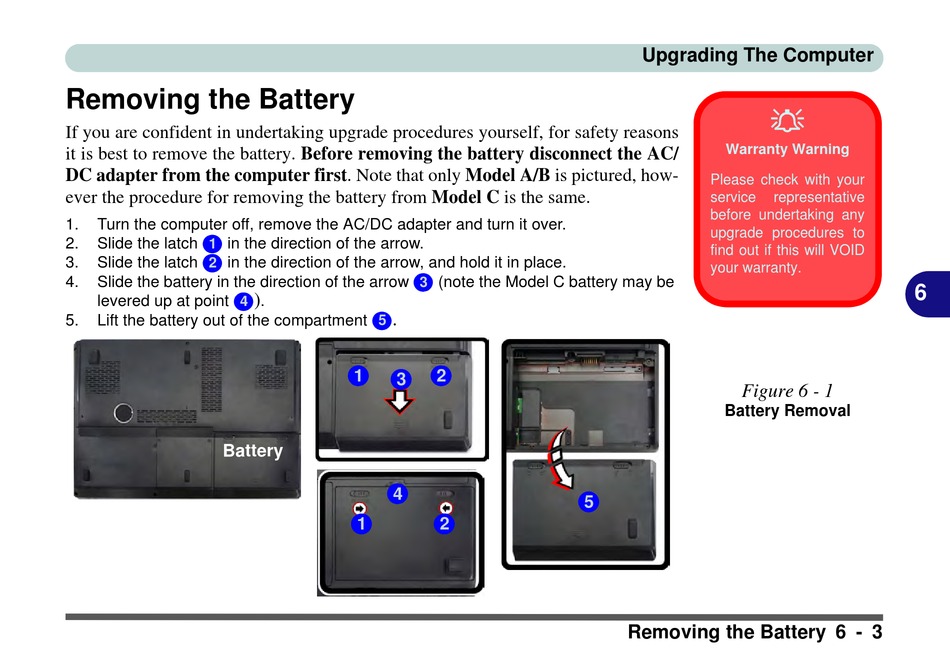

Figure 6 - 1
Battery Removal
Removing the Battery 6 - 3
