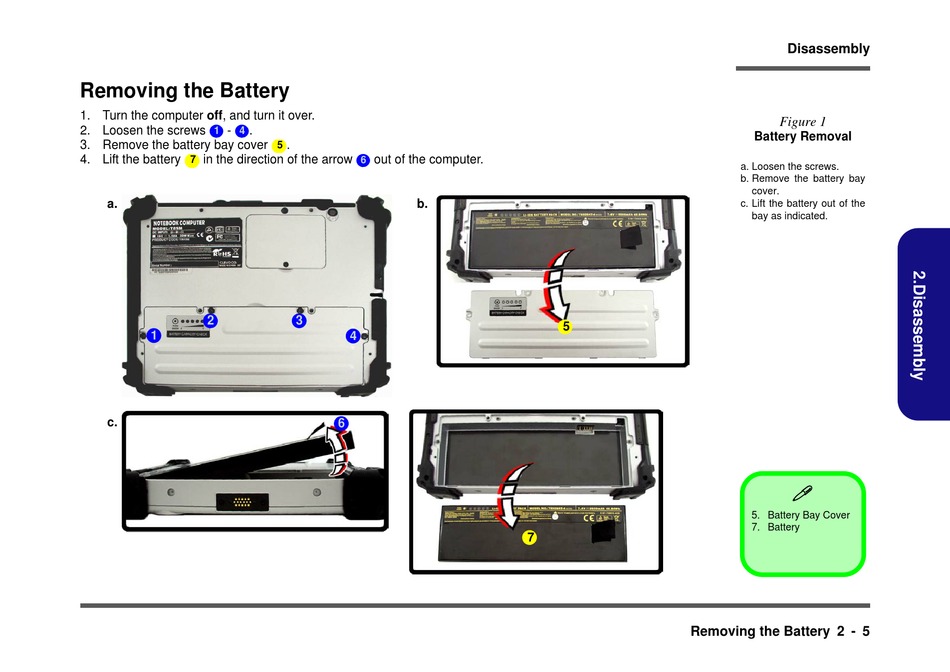

Removing the Battery

1. Turn the computer off, and turn it over.
2. Loosen the screws - .
1 4
3. Remove the battery bay cover
4. Lift the battery in the direction of the arrow
7
6
a.
2
1
c.
.
6 5
out of the computer.
6
b.
3
4
6
5
7
Removing the Battery 2 - 5
Disassembly
Figure 1
Battery Removal
a. Loosen the screws.
b. Remove the battery bay
cover.
c. Lift the battery out of the
bay as indicated.

5. Battery Bay Cover
7. Battery
