External Locator - Top & Right side Views 1 - 5
Introduction

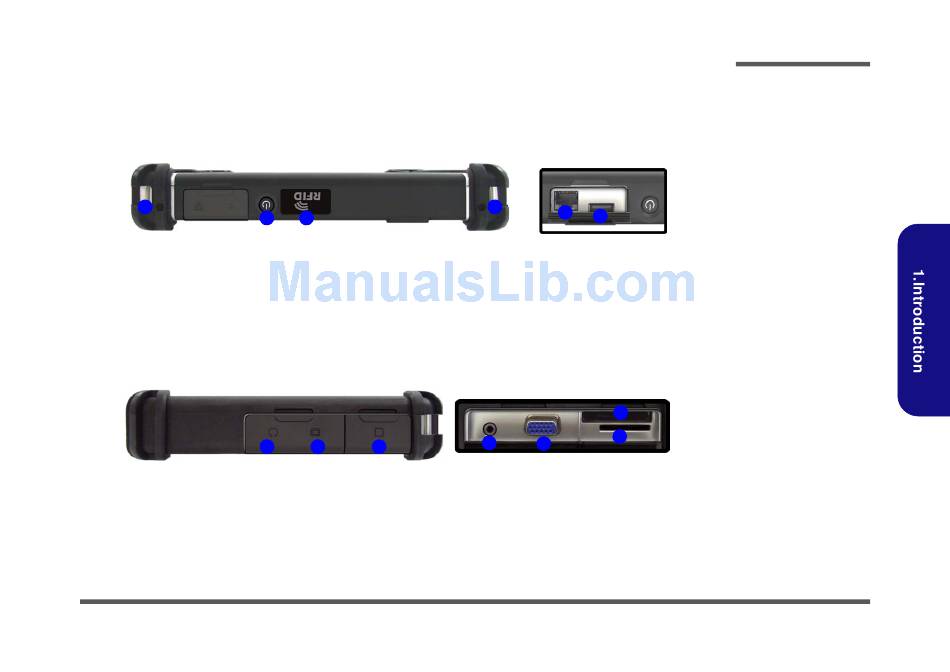

Figure 2
Front Views
1. Strap Holders (for
Carrying Strap)
2. Power Button
3. RFID (Radio
Frequency
Identification)
Reader (Factory
Option)
4. RJ-45 LAN Jack
5. 1 * USB 2.0 Ports
Figure 3
Right Side Views
1. Headphone-Out
Jack
2. External Monitor
Port
3. Card Reader
Cover
4. ExpressCard 34
Slot (see below)
5. 5-in-1 Card
Reader
