Disassembly

Removing the System Memory (RAM)

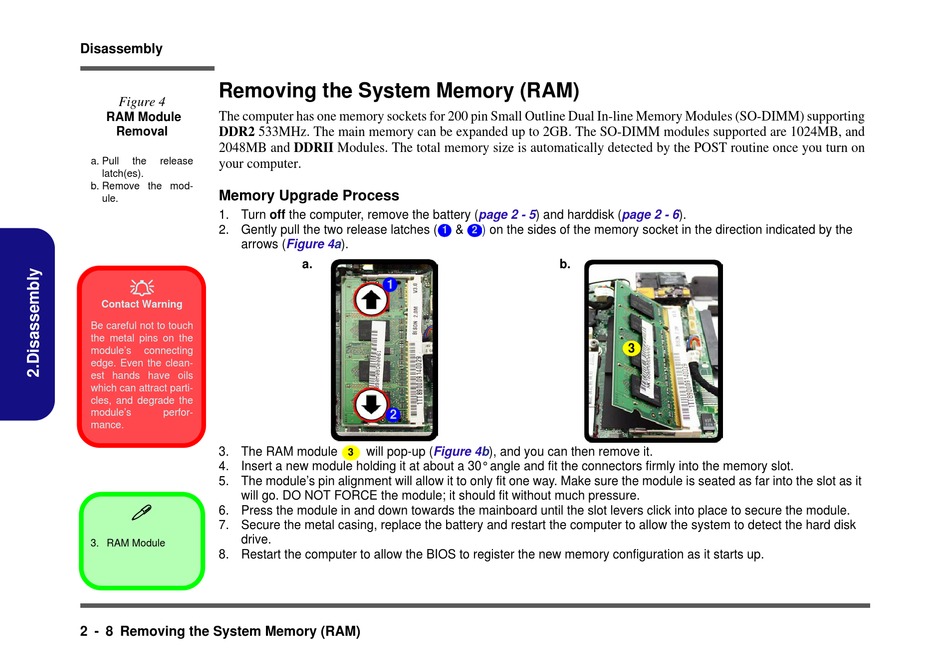

Figure 4
RAM Module The computer has one memory sockets for 200 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting
Removal DDR2 533MHz. The main memory can be expanded up to 2GB. The SO-DIMM modules supported are 1024MB, and
2048MB and DDRII Modules. The total memory size is automatically detected by the POST routine once you turn on
a. Pull the release
your computer.
latch(es).
b. Remove the mod-
Memory Upgrade Process
ule.
1. Turn off the computer, remove the battery
2. Gently pull the two release latches (
arrows

Contact Warning
Be careful not to touch
the metal pins on the
module's connecting
edge. Even the clean-
est hands have oils
which can attract parti-
cles, and degrade the
module's perfor-
mance.
3. The RAM module
4. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.
5. The module's pin alignment will allow it to only fit one way. Make sure the module is seated as far into the slot as it
will go. DO NOT FORCE the module; it should fit without much pressure.

6. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.
7. Secure the metal casing, replace the battery and restart the computer to allow the system to detect the hard disk
drive.
3. RAM Module
8. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.
2 - 8 Removing the System Memory (RAM)
&
