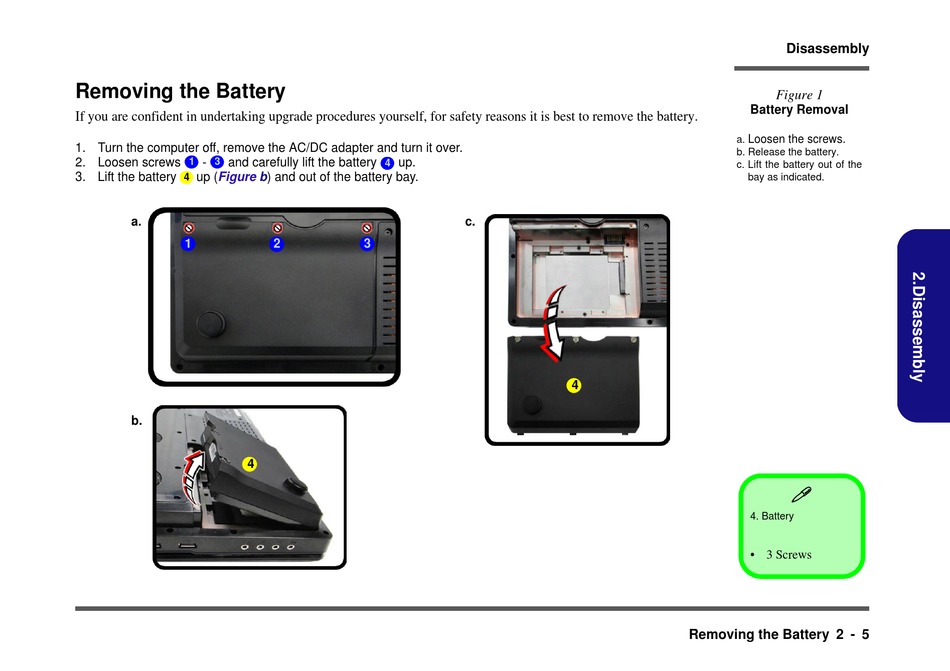

Removing the Battery

If you are confident in undertaking upgrade procedures yourself, for safety reasons it is best to remove the battery.
1. Turn the computer off, remove the AC/DC adapter and turn it over.
2. Loosen screws 1 - 3 and carefully lift the battery
3. Lift the battery 4 up (Figure
a.
1
b.
4
up.
4
b) and out of the battery bay.
2 3
c.
4
Disassembly
Figure 1
Battery Removal
Loosen the screws.
a.
b. Release the battery.
c. Lift the battery out of the
bay as indicated.

4. Battery
• 3 Screws
Removing the Battery 2 - 5
