Avid Technology MC Control User Manual page 47

Double-click the Jog label. The Jog Wheel Command Editor opens.
2

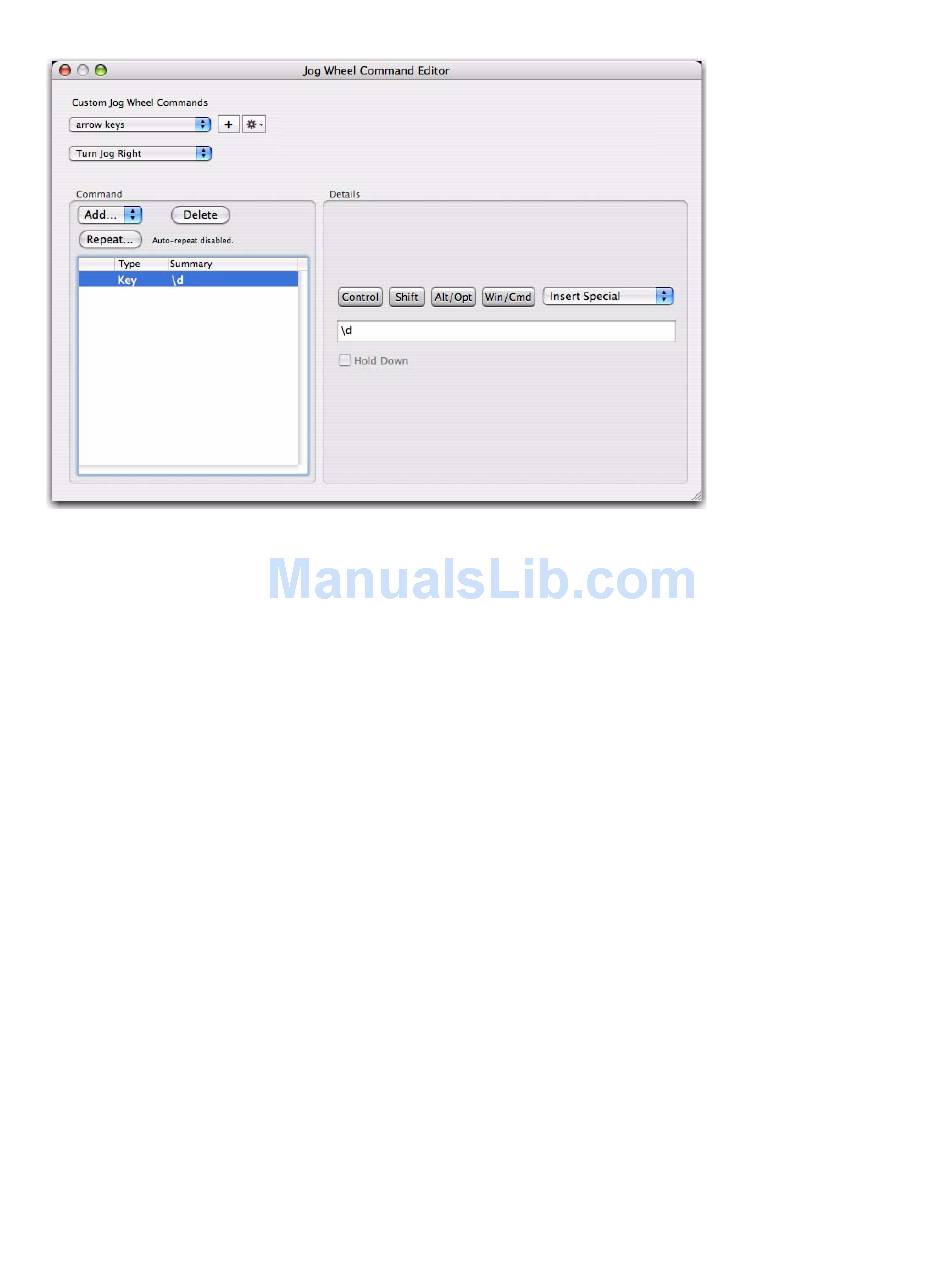

Jog Wheel command editor
Click the + and enter arrow keys as the name for the command. Note that the lower pop-up is set to Turn Jog Right. The Jog
3
Wheel must be programmed to turn right and left.
Select the Key command type from the Add pop-up menu.
4
Select Down Arrow from the Insert Special pop-up menu. You have assigned the command for the Jog Wheel to turn right, now
5
assign it to turn left.
Select Turn Jog Left and select the Key command type from the Add pop-up menu.
6
Select Up Arrow from the Insert Special pop-up menu.
7
Close the Jog Wheel Command Editor. You can now select a Soft Key to press to assign it to the Jog Wheel.
8
Chapter 7: Soft Keys 45
