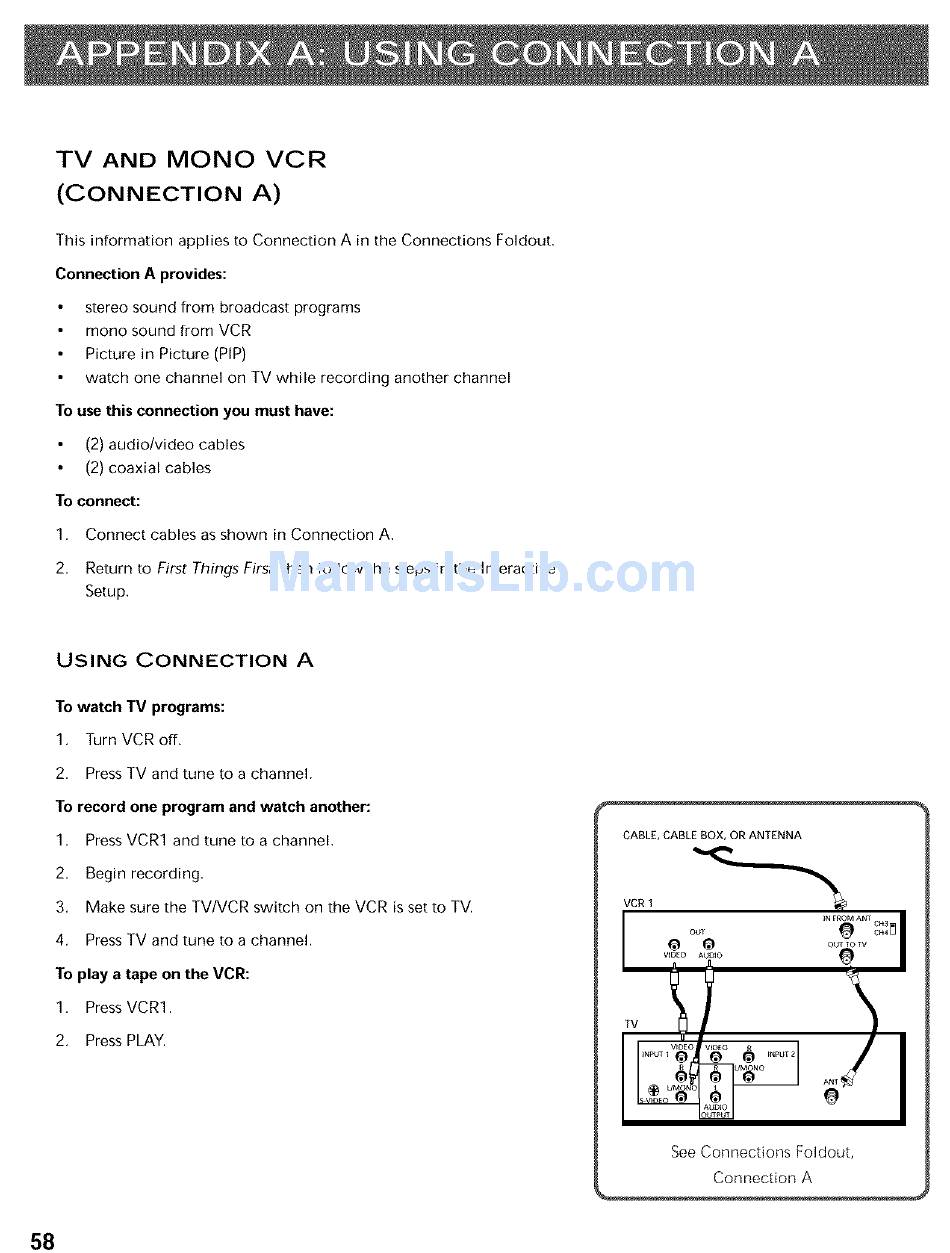

TV AND MONO VCR
(CONNECTION A)
This information applies to Connection A in the Connections Foldout.
Connection A provides:
stereo sound from broadcast programs
mono sound from VCR
Picture in Picture (PIP)
watch one channel on TV while recording another channel
To use this connection you must have:
(2) audio/video cables
(2) coaxial cables
To connect:
1. Connect cables as shown in Connection A.
2. Return to First Things First, then follow the steps in the Interactive
Setup.
USING CONNECTION
A
To watch TV programs:
1. Turn VCR off.
2. Press TV and tune to a channel.
To record one program and watch another:
1. Press VCR1 and tune to a channel.
2. Begin recording.
3. Make sure the TVNCR switch on the VCR is set to TV.
4. Press TV and tune to a channel.
To play a tape on the VCR:
1. PressVCR1.
2. Press PLAY.
58
