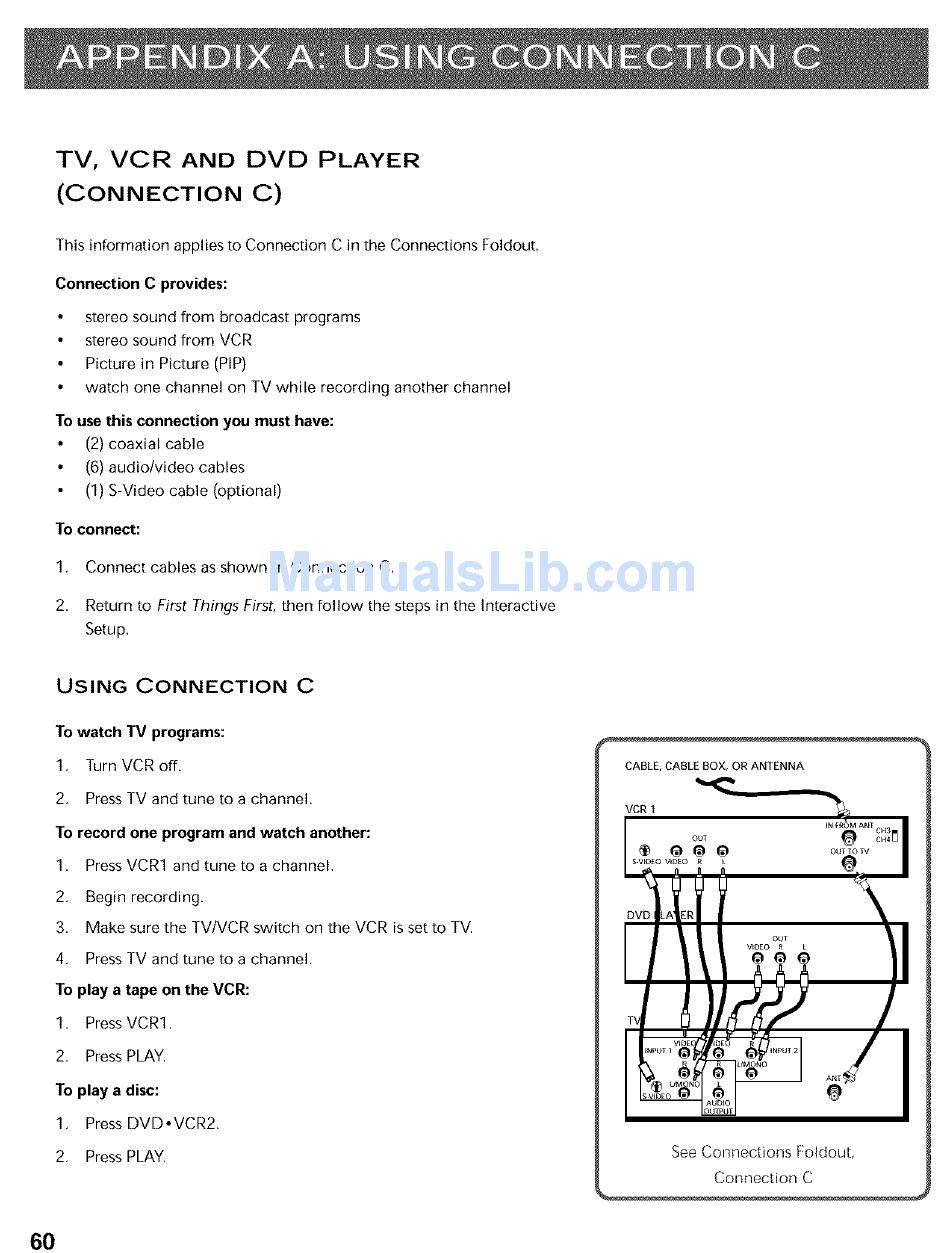

TV, VCR AND DVD PLAYER
(CONNECTION C)
This information applies to Connection C in the Connections Foldout.
Connection C provides:
stereo sound from broadcast programs
stereo sound from VCR
Picture in Picture (PIP)
watch one channel on TV while recording another channel
To use this connection you must have:
(2) coaxial cable
(6) audio/video cables
(1) S-Video cable (optional)
To conneet:
1. Connect cables as shown in Connection C.
2. Return to First Things First, then follow the steps in the Interactive
Setup.
USING CONNECTION C
To watch TV programs:
1. Turn VCR off.
2. Press TV and tune to a channel.
To record one program and watch another:
1. Press VCR1 and tune to a channel.
2. Begin recording.
3. Make sure the TVNCR switch on the VCR is set to TV.
4. Press TV and tune to a channel.
To play a tape on the VCR:
1. PressVCR1.
2. Press PLAY.
To play a disc:
1. Press DVD-VCR2.
2. Press PLAY.
CABLE, CABLE BOX, OR ANTENNA
VCR 1
H
60
