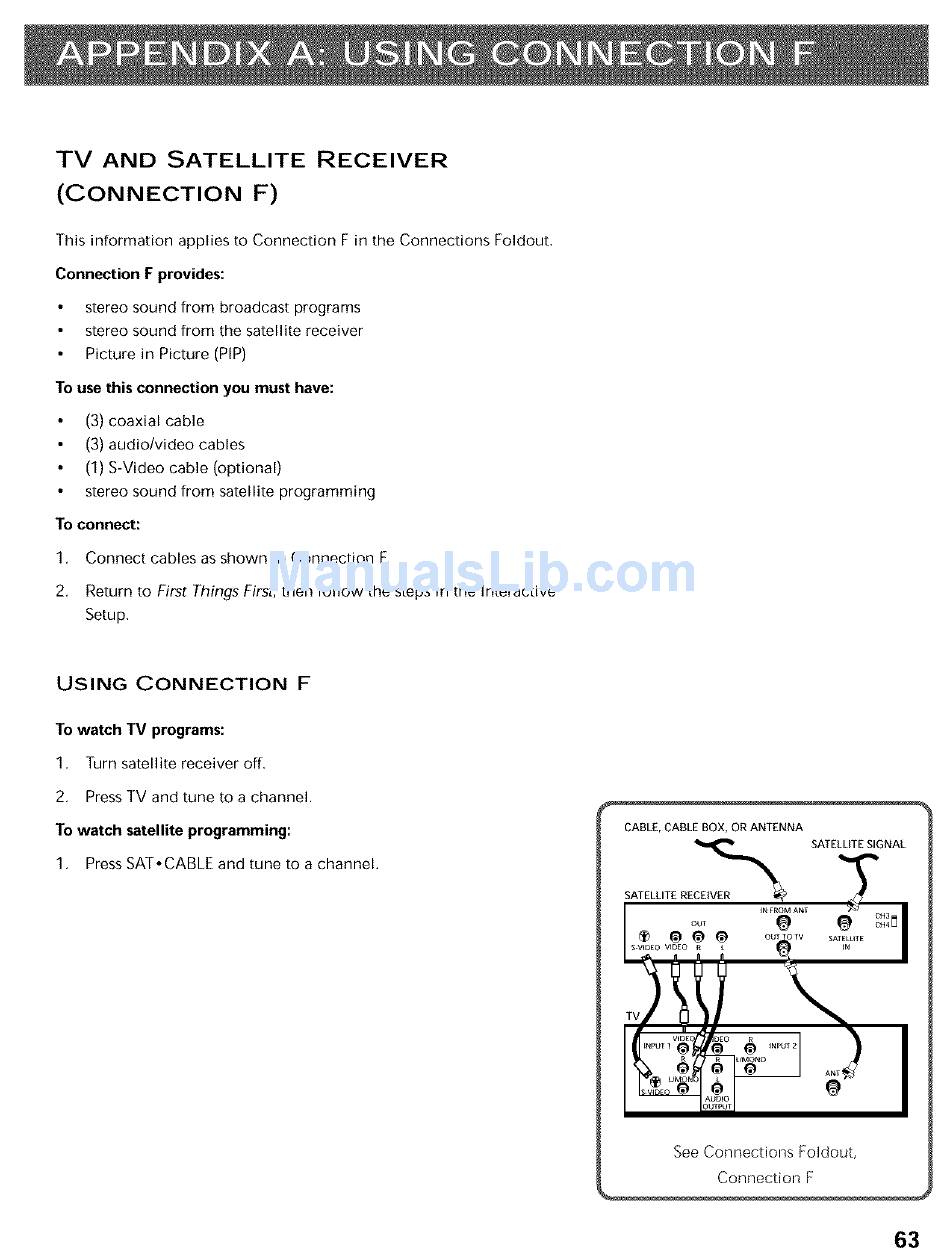

TV AND SATELLITE RECEIVER
(CONNECTION F)
This information applies to Connection F in the Connections Foldout.
Connection F provides:
stereo sound from broadcast programs
stereo sound from the satellite receiver
Picture in Picture (PIP)
To use this connection you must have:
(3) coaxial cable
(3) audio/video cables
(1) S-Video cable (optional)
stereo sound from satellite programming
To connect:
1. Connect cables as shown in Connection
F.
2. Return to First Things First, then follow the steps in the Interactive
Setup.
USING CONNECTION
F
To watch TV programs:
1. Turn satellite receiver off.
2. Press TV and tune to a channel,
To watch satellite programming:
1. Press SAT-CABLE and tune to a channel.
CABLE, CABLE BOX, OR ANTENNA
SATELLITE SIGNAL
SATELLITE RECEIVER_ T_
_NFROM ANT CH 3
oo, e #
_ ANT
,_g?gq
See Connections Foldout,
Connection F
63
