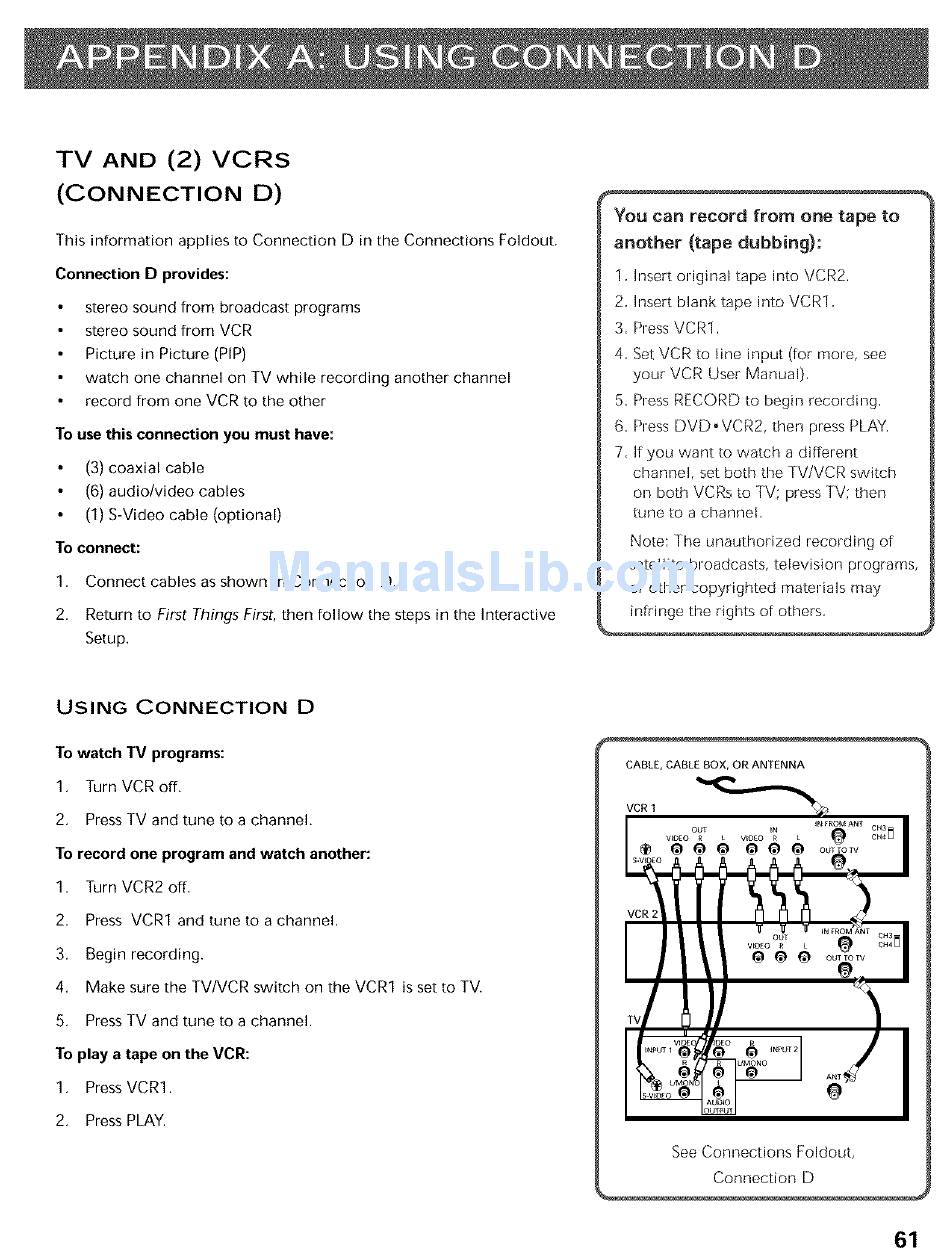

TV AND (2) VCRS
(CONNECTION D)
This information applies to Connection D in the Connections Foldout.
Connection D provides:
stereo sound from broadcast programs
stereo sound from VCR
Picture in Picture (PIP)
watch one channel on TV while recording another channel
record from one VCR to the other
To use this connection you must have:
(3) coaxial cable
(6) audio/video cables
(1) S-Video cable (optional)
To connect:
1. Connect cables as shown in Connection D.
2. Return to First Things First, then follow the steps in the Interactive
Setup.
You can record from one tape to
another (tape dubbing):
1. insert original tape into VCR2.
2. insert blank tape into VCR1.
3. Press VCR1.
4. Set VCR to line input (for more, Bee
your VCR User Manual).
5. Press RECORD to begin recording.
6. Press DVDoVCR2, then press PLAY.
7. if you want to watch a different
channel, set both the ] V/VCR switch
oil both VCRs to ]V; press IV; then
tune to a channel.
Note: ]he unauthorized recording of
satellite bl-oadcasts, television prog_-ams,
or other copyrighted materials may
infringe the rights of others.
USING CONNECTION
D
To watch TV programs:
1. Turn VCR off.
2. Press TV and tune to a channel.
To record one program and watch another:
1. Turn VCR2 off.
2. Press VCR1 and tune to a channel.
3. Begin recording.
4. Make sure the TVNCR switch on the VCR1 is set to TV.
5. Press TV and tune to a channel.
To play a tape on the VCR:
1. PressVCR1.
2. Press PLAY.
CABLE, CABLE BOX, OR ANTENNA
VCR 2
"_ OU'_T 1[ JN FROM ANT CH3
I See Connections Foldout,
61
