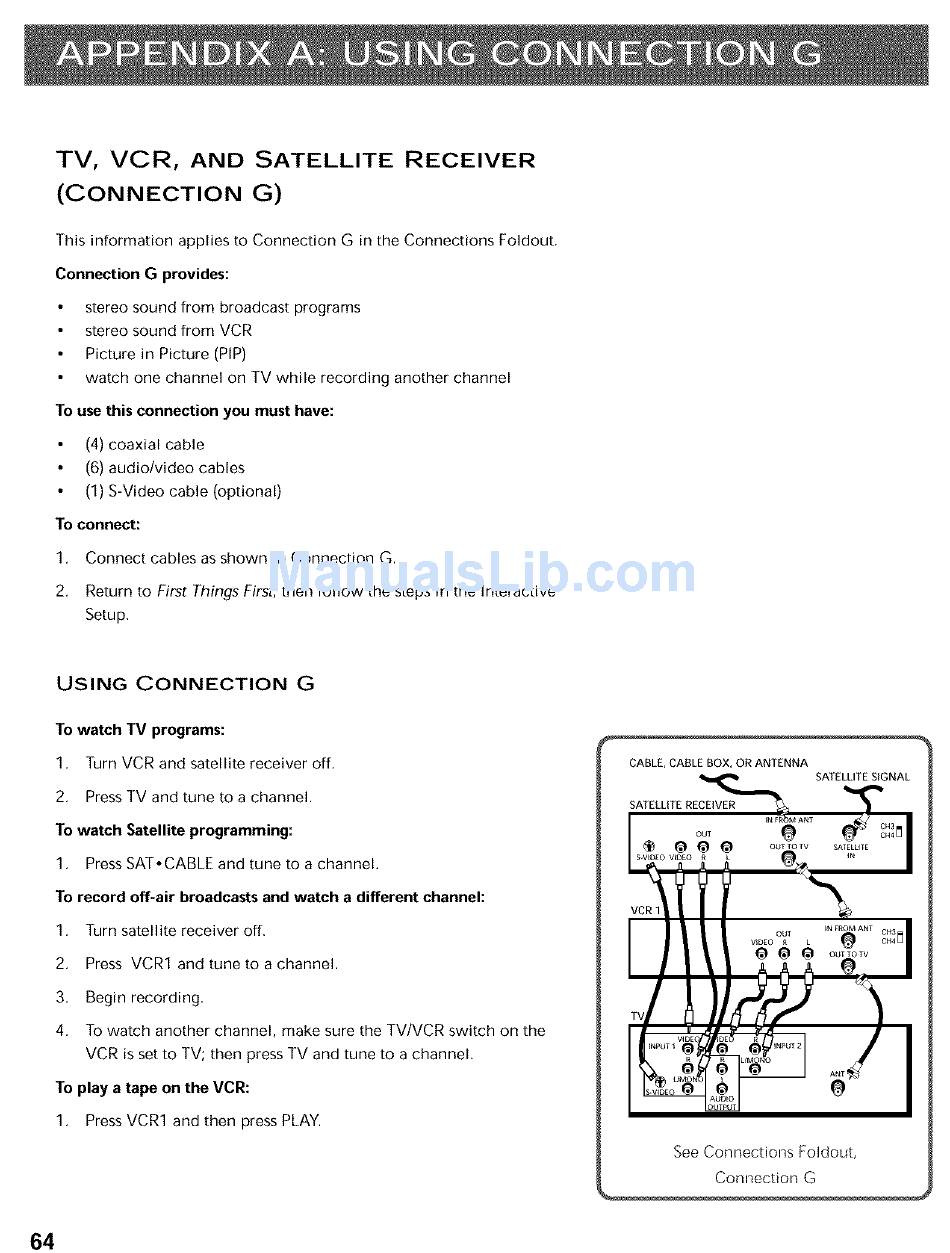

TV, VCR, AND SATELLITE RECEIVER
(CONNECTION G)
This information applies to Connection G in the Connections Foldout.
Connection G provides:
stereo sound from broadcast programs
stereo sound from VCR
Picture in Picture (PIP)
watch one channel on TV while recording another channel
To use this connection you must have:
(4)
coaxial cable
(6) audio/video cables
(1) S-Video cable (optional)
To connect:
1. Connect cables as shown in Connection G.
2. Return to First Things First, then follow the steps in the Interactive
Setup.
USING CONNECTION
G
To watch TV programs:
1. Turn VCR and satellite receiver off.
2. Press TV and tune to a channel.
To watch Satellite programming:
1. Press SAT-CABLE and tune to a channel.
To record off-air broadcasts and watch a different channel:
1. Turn satellite receiver off.
2. Press VCR1 and tune to a channel.
3. Begin recording.
4. To watch another channel, make sure the TV/VCR switch on the
VCR is set to
TV;
then press TV and tune to a channel.
To play a tape on the VCR:
1. Press VCR1 and then press PLAY.
CABLE, CABLE BOX, OR ANTENNA
SATELLITE SIGNAL
SATELLITE RECEIVER
See Connections Foldout,
Connection G
64
