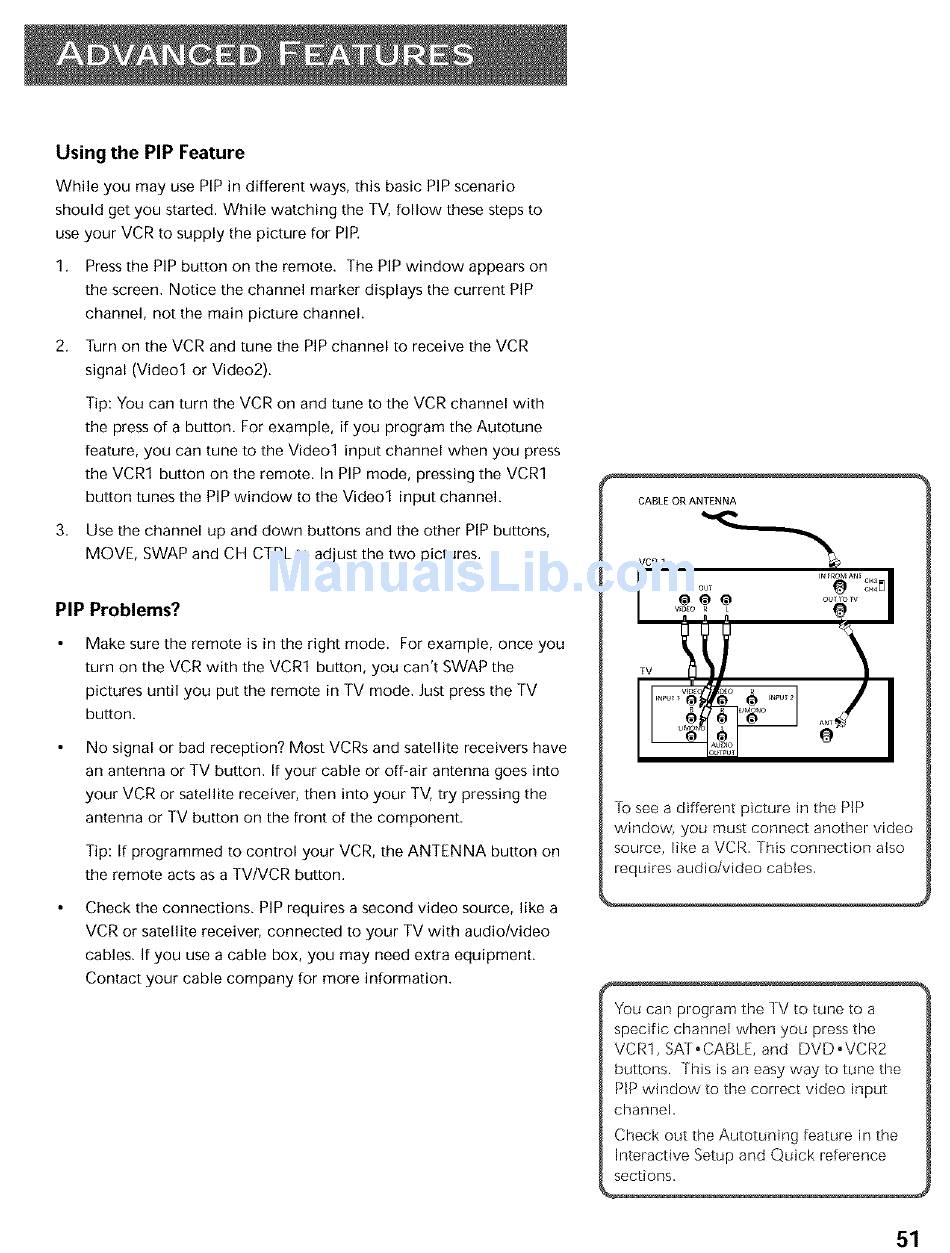

Using the PIP Feature
While you may use PIP in different ways, this basic PIP scenario
should get you started, While watching the TV, follow these steps to
use your VCR to supply the picture for PIE
1. Press the PIP button on the remote. The PIP window appears on
the screen. Notice the channel marker displays the current PIP
channel, not the main picture channel.
2. Turn on the VCR and tune the PIP channel to receive the VCR
signal (Video1 or Video2).
Tip: You can turn the VCR on and tune to the VCR channel with
the press of a button. For example, if you program the Autotune
feature, you can tune to the Video1 input channel when you press
the VCR1 button on the remote. In PIP mode, pressing the VCR1
button tunes the PIP window to the Video1 input channel.
3. Use the channel up and down buttons and the other PIP buttons,
MOVE, SWAP and CH CTRL to adjust the two pictures.
PIP Problems?
Make sure the remote is in the right mode. For example, once you
turn on the VCR with the VCR1 button, you can't SWAP the
pictures until you put the remote in TV mode. Just press the TV
button.
No signal or bad reception? Most VCRs and satellite receivers have
an antenna or TV button. If your cable or off-air antenna goes into
your VCR or satellite receiver, then into your TV, try pressing the
antenna or TV button on the front of the component.
Tip: If programmed to control your VCR, the ANTENNA button on
the remote acts as a TVNCR button.
Check the connections. PIP requires a second video source, like a
VCR or satellite receiver, connected to your TV with audio/video
cables. If you use a cable box, you may need extra equipment.
Contact your cable company for more information.
CABLE OR ANTENNA
VCR 1
IN _ROM AI_T C_B I
vllJ_o _ _ rv c_4[_
TV _
1o see a different picture in the PiP
window, you must connect another video
source, like a VCR. ]his connection also
requires audio/video cables.
You can program the TV to tune to a
specific channel when you press the
VCR1, SAT,CABLE, and DVD,VCR2
buttons. ]his is an easy way to tune the
PiP window to the correct video input
channel.
Check out the Autotuning feature in the
Interactive Setup and Quick reference
sections.
