Search

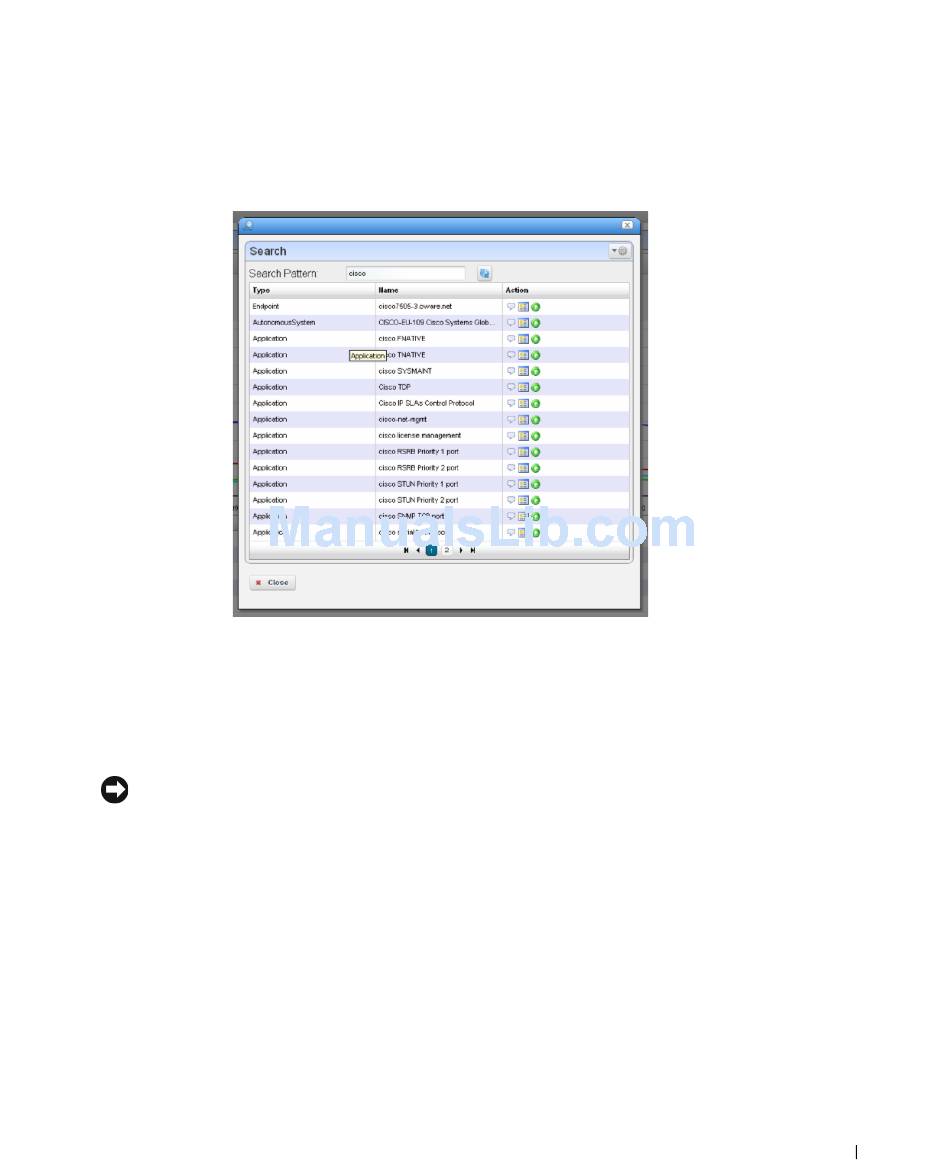

Search by clicking on the Search (magnifying glass) icon in the title bar. Type any string in the next
screen to search through the traffic data. A list of all entities found matching the string appears
below it.
Entity found in the search support the following actions:
View Top Conversations—Displays the top n conversations for the selected entity.
Show Detail View—Displays a top level detail view of the selected entity.
Add to Current View— Adds the entity to the current view and drills down to it.
Tip
The Settings button (the gear in the upper right corner) lets you confine the search by types (All,
Applications, Protocols, and so on).

Traffic Flow Analyzer - Example

The following describes typical situations where flow is useful. When ports are over-utilized
because of intermittent performance problems diagnosis of the problem sometimes difficult. Turn
on flow traffic data collection to evaluate who, what applications, and so on, are responsible for the
traffic on the affected ports. This avoids getting overwhelmed with collection of traffic going in all
directions. Follow these steps to do this:
From the Resources monitor, select a desired router that has support for NetFlow
1
