How To: Create A Custom Dashboard View - Dell OpenManage Network Manager Client Manual

How To:
Create a Custom Dashboard View
The following steps create a custom dashboard view:

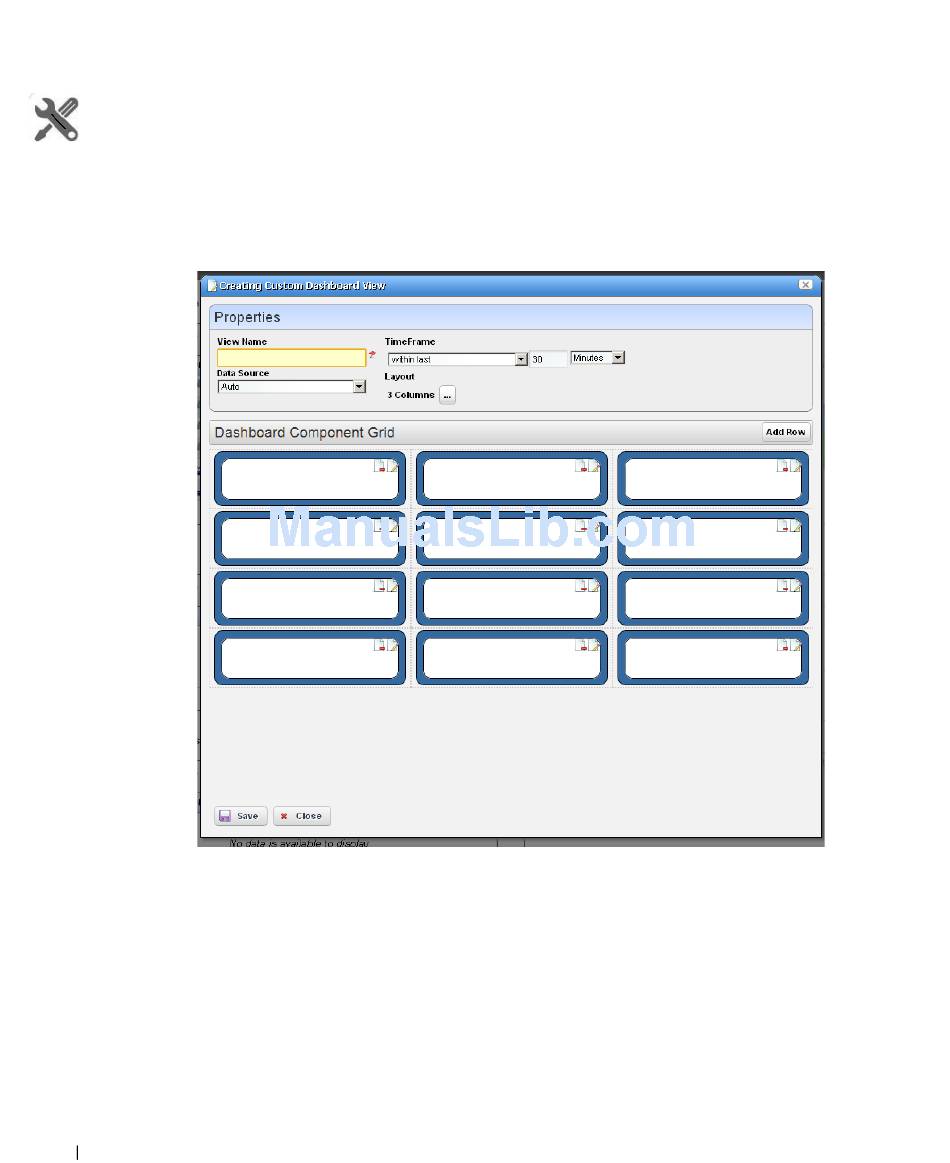

In the Dashboard Views portlet, select the New Custom Dashboard command. An empty
1
default view with twelve components appears.
The Properties panel contains the following controls:
View Name—The name of the dashboard view (Required)
Time Frame—The period over which to display the data. May be either relative (like last 30
minutes) or absolute (between specific dates and times). The specified frame applies to
all charts in the dashboard.
Data Source—Source for the data. Current displays current (raw) data. Hourly displays
rolled up hourly data. Daily displays rolled up daily data. Auto (default) determines
which data source to use based on the selected time frame.
282
Dashboard Views | Monitoring
