This panel lets you specify filter attributes for the port or interface filters you want to monitor. For
example, if you select a device but only want to monitor active interfaces created by a particular
user, then these filters do the job.
The SNMP Attributes panel is the same as described in SNMP on page 270.

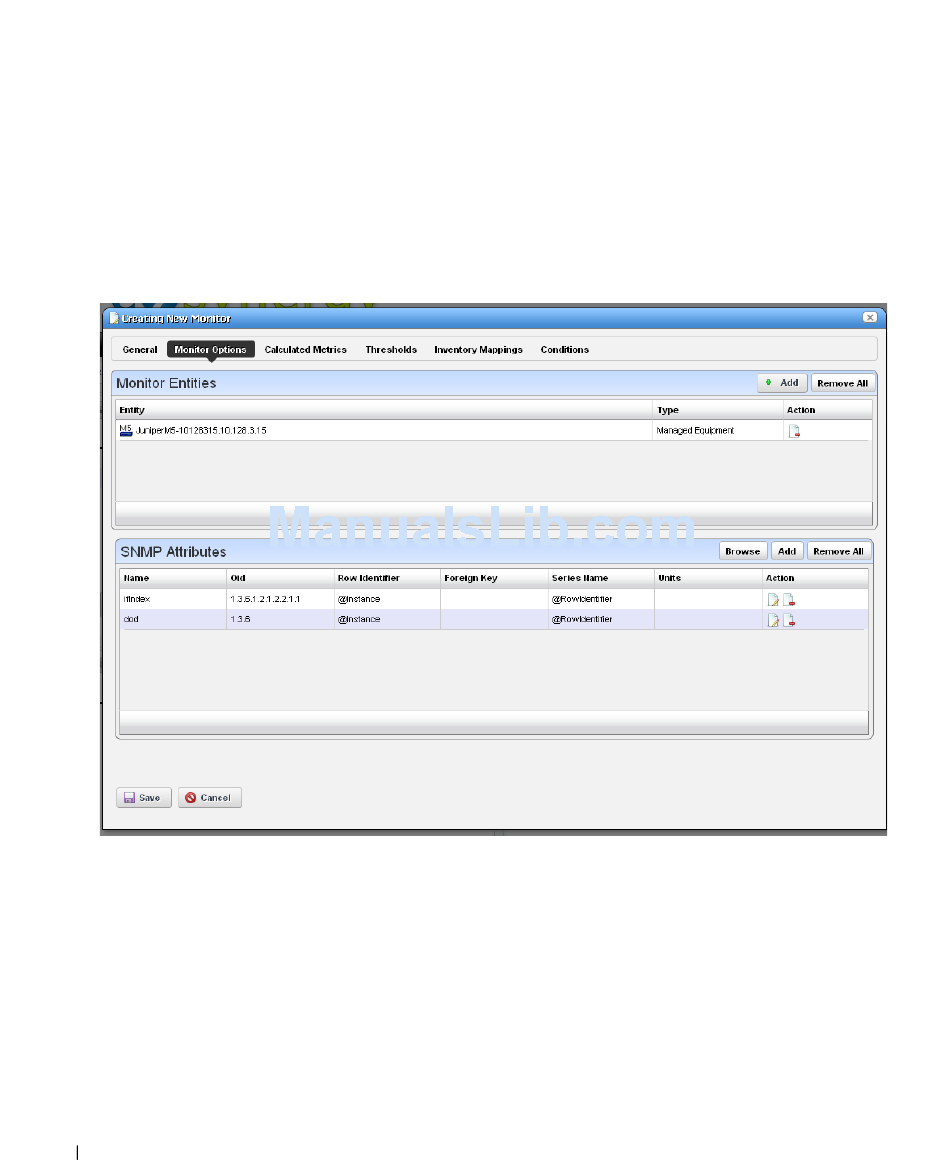

SNMP Table Monitor
This panel appears if you are creating an SNMP Table monitor. The application stores not absolute
numbers from counters but the counter's change since its last measurement.
Columns include the SNMP Attribute Name, OID, Row Identifier, Foreign Key, Series Name, Meta
Syntax, Units, and Action.
If you check the Collect from ifXTable checkbox, then OpenManage Network Manager attempts to
fetch attributes from the ifXTable. These attributes are ifHighSpeed, ifHCInOctets,
ifHCInUcastPkts, ifHCOutOctets and ifHCOutUcastPkts. If any of these attributes are not
available, then it fetches from ifTable.
Clicking the Add or the Edit button to the right opens either a MIB Browser where you can retrieve
these attributes, or an Add / Edit SNMP Attributes editor at the bottom of the screen, See the
following sections for details.
