Installation
The Extron P/2 DA1 USB is a one input, one output VGA line driver.
It boosts the video signal between a laptop or desktop computer (in-
put device) and a monitor or large screen projector (output device).
Features
• The P/2 DA1 USB accepts and outputs SVGA, VGA, XGA
RGBHV, RGBS, RGsB, and RsGsBs signals.
• The gain/peaking switch increases video signal voltage to
compensate for signal degradation caused by long cables.
Installation
To install the P/2 DA1 USB, do the following:
1. Turn off power to the input and output devices, and unplug
their power cords.
2. Connect the computer to the 15-pin HD male input
connector (see
1
3. Connect the output device to the 15-pin HD female output
connector (see
5
4. Plug the P/2 DA1 USB's power connector into the
computer's USB port.
5. Reattach power cords, and apply power to the the input
and output devices.
Many laptop computers have an external video port, but they
require special commands to output the video to that
connector. Also, many laptops' screens shut off after the port
is activated. See the computer's user's guide for details, or
contact Extron for a list of laptop keyboard commands.

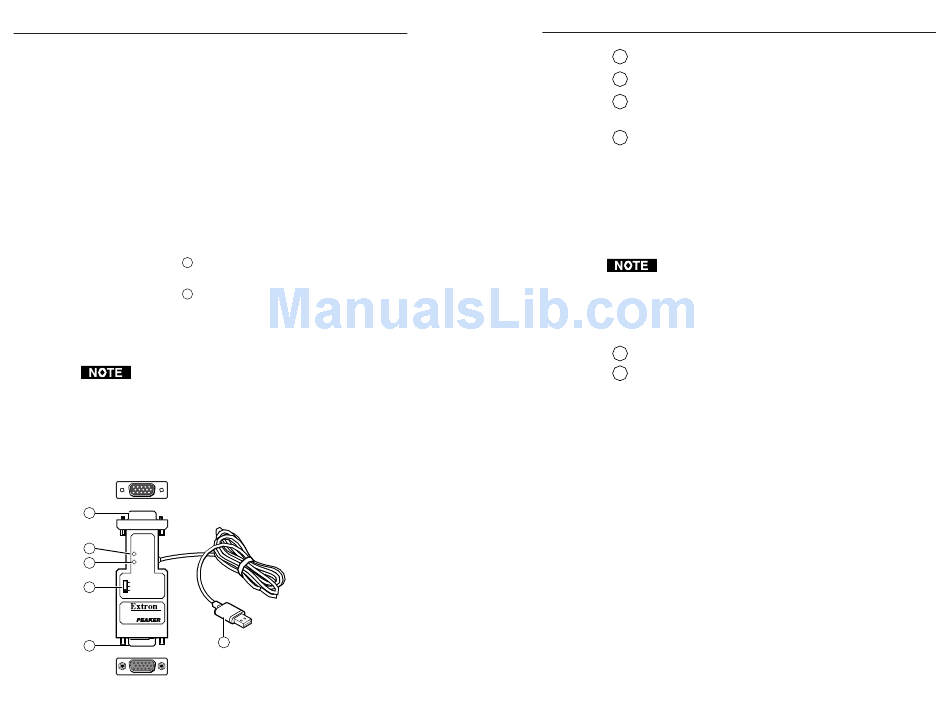

Operation
To computer
VGA IN
1
2
POWER
3 SIGNAL
GAIN/PEAKING
NORMAL
4 MEDIUM
MAXIMUM
P/2 DA1
5
VGA OUT
To display device
2 P/2 DA1 • Installation and Operation
in the "Operation" illustration below).
in the "Operation" illustration below).
6
15-pin HD input connector (male)
1
Power LED — Lights to indicate that the P/2 DA1 USB is on.
2
Signal LED — Lights to indicate that an input signal is
3
being received.
Gain/peaking switch — Compensates for cable resistance
4
and capacitance.
Normal — Output is the same level as input.
Medium — 50% of the total gain is applied. Peaking is
applied.
Maximum — 100% of the total gain is applied. Peaking is
applied.
If the signal cable between the P/2 DA1 USB and the
output device is shorter than approximately 125 feet, and
the gain switch is set 50% or 100%, the image may be
overcompensated. If the edges of the image seem to exceed
their boundaries, or if thin lines and sharp edges look thick
and fuzzy, try changing the gain/peaking setting.
15-pin HD output connector (female)
5
USB power connector — Plug this into a computer's USB
6
port to provide power to the P/2 DA1 USB.

Specifications

Video
Gain ............................................... Selectable: .. Unity (Normal),
Bandwidth .................................... 300 MHz (-3dB)
Video input
Number/signal type ................... 1 VGA/SVGA/XGA/SXGA RGBHV,
Connectors .................................... 1 15-pin male
Minimum/maximum levels ...... Analog ....... 0.3V to 1.5V p-p with
Impedance .................................... 75 ohms
Horizontal frequency .................. 15 kHz to 135 kHz
Vertical frequency ....................... 30 Hz to 170 Hz
Maximum DC offset .................... 200mV
P/2 DA1 • Operation and Specifications
(0.75V) 50% (Medium),
(0.8V) 100% (Maximum)
Note: ID bits will be passed through
RGBS, RGsB, RsGsBs
no offset at unity gain
