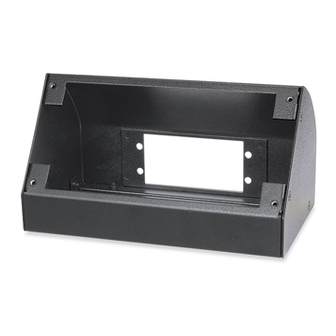

Specifications — SMB 200 Series
General
Mounting ...................................... Surface mountable or mountable to furniture including lecterns and tabletops
Enclosure type .............................. Metal
Enclosure dimensions
SMB 203 L ......................... 3.6" H x 6.5" W x 3.8" D
SMB 205 L ......................... 3.6" H x 10.0" W x 3.8" D
Faceplate compatibility
SMB 203 L ......................... Mounts a low-profile, 3.2" high, 6.5" wide, L-type faceplate
SMB 205 L ......................... Mounts a low-profile, 3.2" high, 10.0" wide, L-type faceplate
The SMB 200 Series does not accommodate products with US gang-sized faceplates; they mount only
low-profile, L-type faceplates, including those of the MLC 226 IP L and MLM 104 LAAP.
Number of accessible AAP openings
SMB 203 L ......................... 1 double-space (back), 1 double-space (bottom)
SMB 205 L ......................... 2 double-space (back), 2 double-space (bottom)
Included blank AAP plates
SMB 203 L ......................... 1 double-space
SMB 205 L ......................... 2 double-space
Furniture mounting holes .......... 4 (2 are slotted)
Cable management lance punches
SMB 203 L ......................... 2
SMB 205 L ......................... 3
Front angle .................................... 36° from vertical, 54° from horizontal
Product weight
SMB 203 L ......................... 1.1 lbs (0.5 kg)
SMB 205 L ......................... 1.6 lbs (0.7 kg)
1-2
Extron SMB 203 L, SMB 205 L Surface Mount Boxes • Specifications

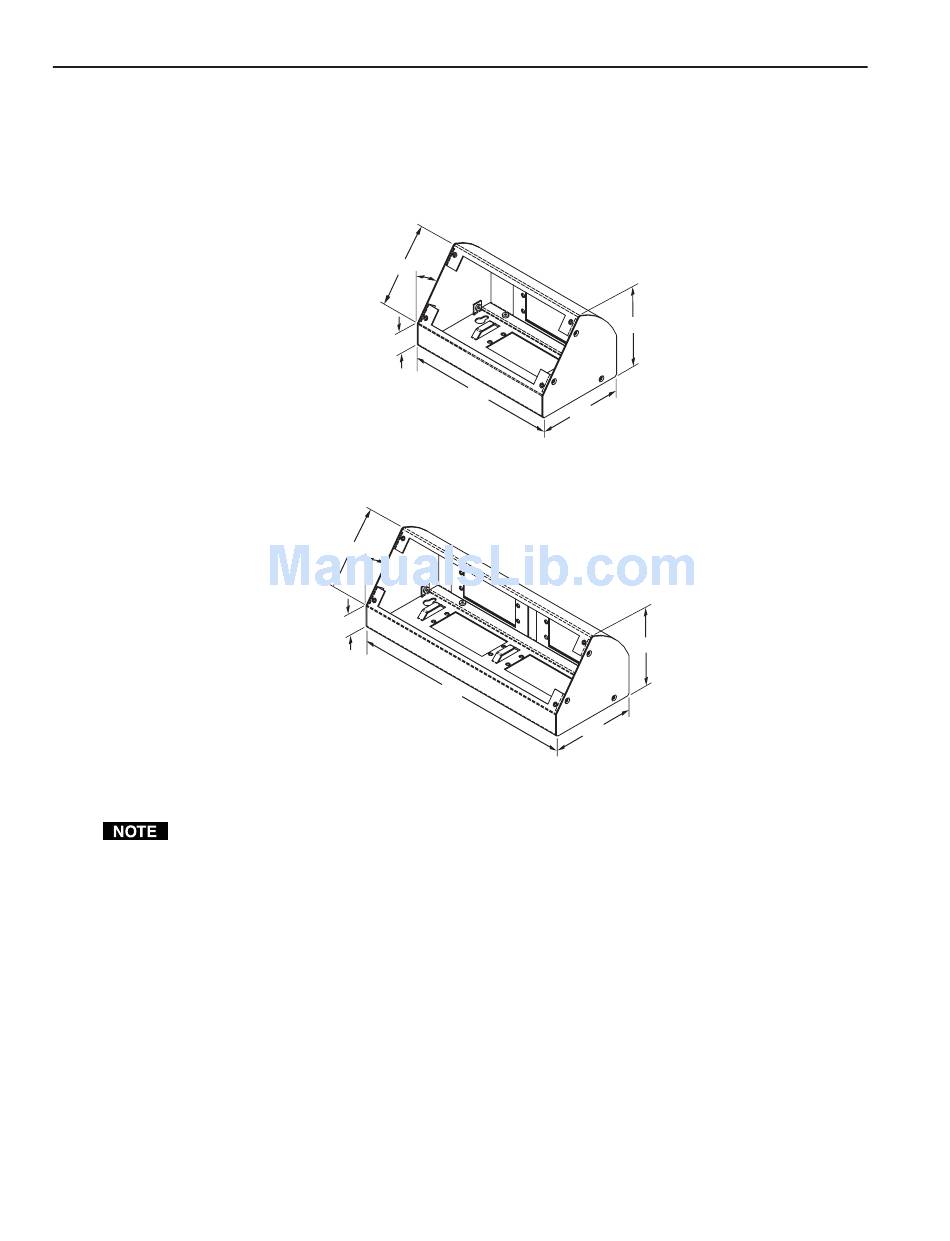

9.2 cm H x 16.5 cm W x 9.7 cm D
3.20" 36°
1.00"
6.51"
9.2 cm H x 25.4 cm W x 9.7 cm D
3.20" 36°
1.00"
10.00"
3.60"
3.82"
3.60"
3.82"
