GLI 2000 Series
Extron
RGB 109xi
Interface
PC

sPecIFIcaTIons

VIdeo
Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Unity
Core saturation voltage . . . . . . . . >10 V, See the Extron Web site for details on core saturation test conditions.
Bandwidth
GLI 2000 5BNC . . . . . . . . . . . . . . . . . . . >425 MHz (-3 dB) for RGB, >200 MHz (-3 dB) for HV
GLI 2000 2BNC . . . . . . . . . . . . . . . . . . . >100 MHz (-3 dB)
CMRR
GLI 2000 5BNC . . . . . . . . . . . . . . . . . . . >58 dB @ 50 Hz or 60 Hz
GLI 2000 2BNC . . . . . . . . . . . . . . . . . . . >53 dB @ 50 Hz or 60 Hz
VIdeo InPuT
Number / Signal type
GLI 2000 5BNC . . . . . . . . . . . . . . . . . . . 1 VGA–UXGA RGBHV, RGBS, RGsB, RsGsBs
GLI 2000 2BNC . . . . . . . . . . . . . . . . . . . 1 S-video or 2 composite video
Connectors
GLI 2000 5BNC . . . . . . . . . . . . . . . . . . . 5 female BNC
GLI 2000 2BNC . . . . . . . . . . . . . . . . . . . 2 female BNC
Nominal level . . . . . . . . . . . . . . . . . . . . 1 Vp-p for Y of S-video, and for composite video
0.7 Vp-p for RGB
0.3 Vp-p for C of S-video
Minimum / Maximum levels . . . Analog: -15 V to +15 Vp-p with no offset
Impedance . . . . . . . . . . . . . . . . . . . . . . . . 75 ohms
Horizontal frequency. . . . . . . . . . . . 10 kHz to 2000 kHz
Vertical frequency . . . . . . . . . . . . . . . 15 Hz to 180 Hz
reTurn Loss
GLI 2000 5BNC . . . . . . . . . . . . . . . . . . . <-27 dB @ 1 MHz to 100 MHz
GLI 2000 2BNC . . . . . . . . . . . . . . . . . . . <-28 dB @ 1 MHz to 100 MHz
VIdeo ouTPuT
Number / Signal type
GLI 2000 5BNC . . . . . . . . . . . . . . . . . . . 1 VGA–UXGA RGBHV, RGBS, RGsB, RsGsBs
GLI 2000 2BNC . . . . . . . . . . . . . . . . . . . 1 S-video or 2 composite video
Connectors
GLI 2000 5BNC . . . . . . . . . . . . . . . . . . . 5 female BNC
GLI 2000 2BNC . . . . . . . . . . . . . . . . . . . 2 female BNC
Nominal level . . . . . . . . . . . . . . . . . . . . 1 Vp-p for Y of S-video, and for composite video
0.7 Vp-p for RGB
0.3 Vp-p for C of S-video
Minimum / Maximum levels . . . Analog: -15 V to +15 Vp-p with no offset
Impedance . . . . . . . . . . . . . . . . . . . . . . . . 75 ohms
Horizontal frequency. . . . . . . . . . . . 10 kHz to 2000 kHz
Vertical frequency . . . . . . . . . . . . . . . 15 Hz to 180 Hz
Return loss . . . . . . . . . . . . . . . . . . . . . . . <-30 dB @ 0 to 100 MHz
DC offset . . . . . . . . . . . . . . . . . . . . . . . . . . ±10 mV maximum
europe europe dubai dubai
+31.33.453.4040 / +800.3987.6673 +31.33.453.4040 / +800.3987.6673 +971.4.2991800 +971.4.2991800
+31.33.453.4050 FAX +31.33.453.4050 FAX +971.4.2991880 FAX +971.4.2991880 FAX
IN PU
T
BU
FF
M ON ER
IT OR ED
LO
OU CA
TP L
UT
H.
SH IF T
VG
A IN
TE
RF RG B 10
AC
E W 9 xi
/A DS
P
Extron
GLI 2000 2BNC
Ground Loop
Inhibitor
E O
V ID
IN
asia asia
+65.6383.4400 / +800.7339.8766 +65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX +65.6383.4664 FAX
U T
IN P
H
B
G
U T
R T P
O U
Extron
/C
E O
V ID
GLI 2000 5BNC
T
/Y
O U
Ground Loop Inhibitor
IN
T
O U
sync
(GLI 2000 5BNC, uNLess otherwIse INdICated)
Input type . . . . . . . . . . . . . . . . . . . . . . . . . RGBHV, RGBS, RGsB, RsGsBs
Output type . . . . . . . . . . . . . . . . . . . . . . . RGBHV, RGBS, RGsB, RsGsBs
Standards (GLI 2000 2BNC) . . . . NTSC 3.58, NTSC 4.43, PAL, SECAM
Input level . . . . . . . . . . . . . . . . . . . . . . . . -15 V to +15 Vp-p
Output level . . . . . . . . . . . . . . . . . . . . . . -15 V to +15 Vp-p, unterminated
Input impedance . . . . . . . . . . . . . . . . 75 ohms
Output impedance . . . . . . . . . . . . . . 75 ohms
Max. propagation delay
GLI 2000 5BNC . . . . . . . . . . . . . . . . . . . 26 ns
GLI 2000 2BNC . . . . . . . . . . . . . . . . . . . 52 ns
Polarity . . . . . . . . . . . . . . . . . . . . . . . . . . . . Positive or negative (follows input)
GeneraL
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Not powered
Temperature / Humidity . . . . . . . . Storage: -40° to +158°F (-40° to +70°C) / 10% to 90%, non-condensing
Rack mount . . . . . . . . . . . . . . . . . . . . . . Yes, with optional 2U rack shelf
Enclosure type . . . . . . . . . . . . . . . . . . . Metal
Enclosure dimensions
GLI 2000 5BNC . . . . . . . . . . . . . . . . . . . 3.4" H x 8.6" W x 5" D (2U high, half rack wide)
GLI 2000 2BNC . . . . . . . . . . . . . . . . . . . 3.4" H x 4.3" W x 5" D (2U high, one quarter rack wide)
Product weight
GLI 2000 5BNC . . . . . . . . . . . . . . . . . . . 6.2 lbs (2.8 kg)
GLI 2000 2BNC . . . . . . . . . . . . . . . . . . . 3.1 lbs (1.4 kg)
Shipping weight
GLI 2000 5BNC . . . . . . . . . . . . . . . . . . . 10 lbs (5 kg)
GLI 2000 2BNC . . . . . . . . . . . . . . . . . . . 5 lbs (3 kg)
Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . ISTA 1A in carton (International Safe Transit Association)
Listings . . . . . . . . . . . . . . . . . . . . . . . . . . . . UL, CUL
Compliances . . . . . . . . . . . . . . . . . . . . . CE
MTBF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30,000 hours
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 3 years parts and labor
NOTE: All nominal levels are at ±10%. Specifications are subject to change without notice.
China China
+86.21.3760.1568 / +400.883.1568 +86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX +86.21.3760.1566 FAX

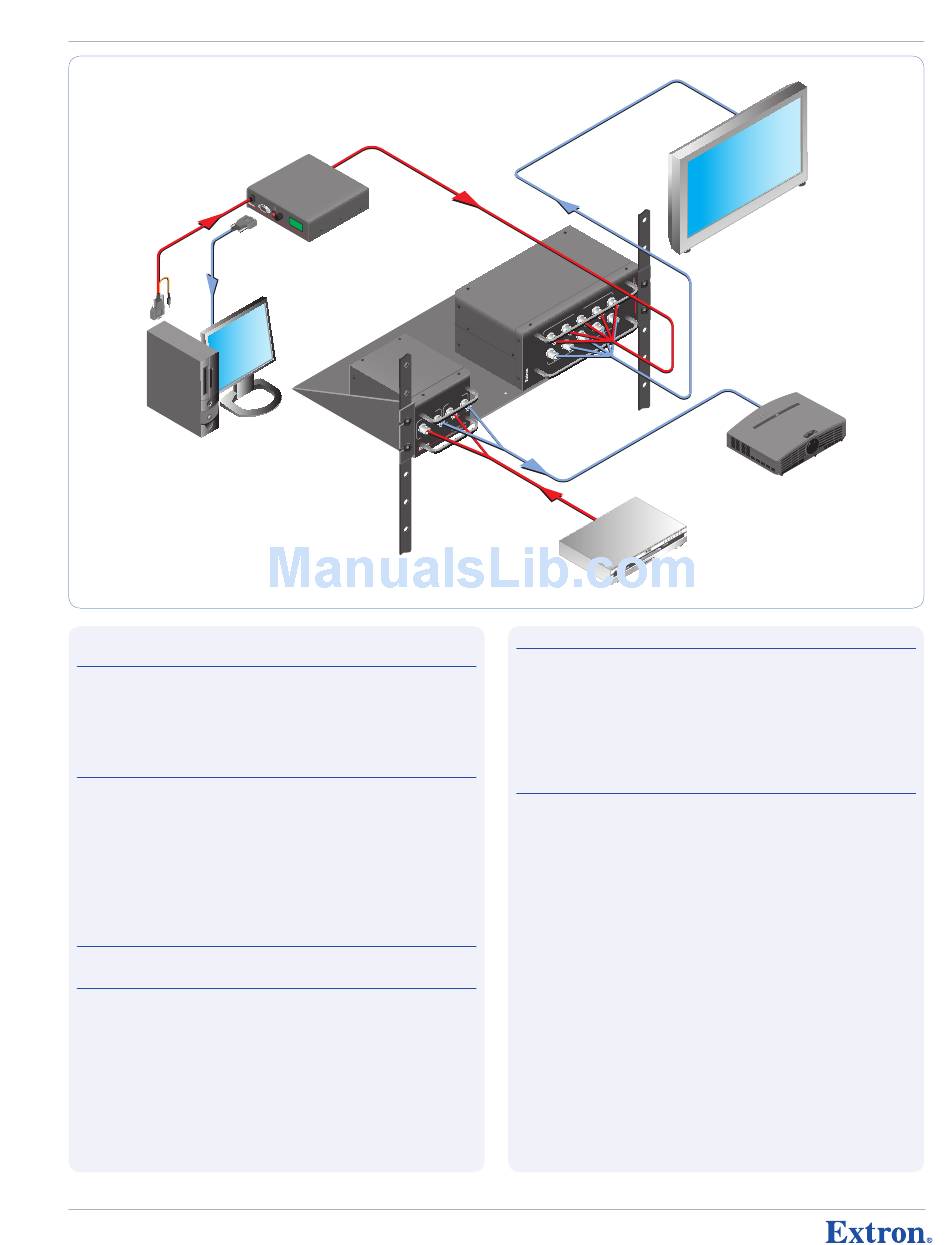

G r o u n d l o o p i n h i b i t o r S & i S o l a t o r S
Plasma/LCD Display
V
DVD
Operating: +32° to +122°F (0° to +50°C) / 10% to 90%, non-condensing
8.6 cm H x 21.8 cm W x 12.7 cm D
8.6 cm H x 10.9 cm W x 12.7 cm D
(Depth excludes connectors/guards and handles)
Japan Japan
+81.3.3511.7655 +81.3.3511.7655
+81.3.3511.7656 FAX +81.3.3511.7656 FAX
Projector
