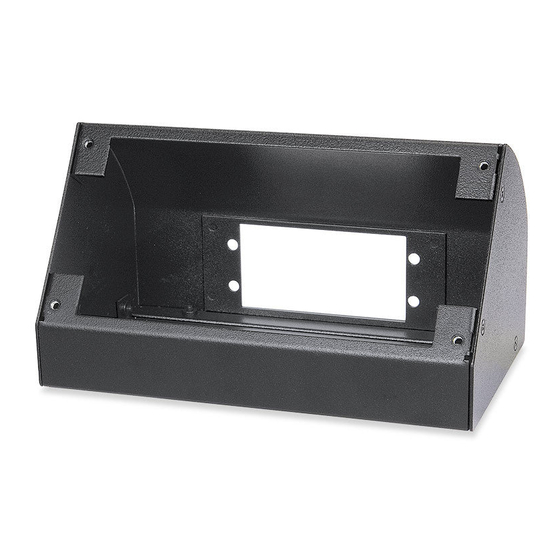

Extron electronics Surface Mount Boxes SMB 205 L Installation Manual

Number of accessible AAP openings
SMB 203 L ........................... 1 double-space (back), 1 double-space (bottom)
SMB 205 L ........................... 2 double-space (back), 2 double-space (bottom)
Included blank AAP plates
SMB 203 L ........................... 1 double-space
SMB 205 L ........................... 2 double-space
Furniture mounting holes ............ 4 (2 are slotted)
Cable management lance punches
SMB 203 L ....................................... 2
SMB 205 L ....................................... 3
Front angle ..................................... 36° from vertical, 54° from horizontal
Product weight
SMB 203 L ........................... 1.1 lbs (0.5 kg)
SMB 205 L ........................... 1.6 lbs (0.7 kg)
Shipping weight ............................ 2 lbs (1 kg)
Vibration ........................................ ISTA 1A in carton (International Safe Transit
Warranty ........................................ 3 years parts and labor
N Specifications are subject to change without notice.
Models
Models
SMB 203 L (black, white)
SMB 205 L (black, white)

Included Parts

These items are included in each order of the SMB 203 L or SMB 205 L.
Included parts
Adhesive rubber feet (4)
Blank double-spaced AAP (1), SMB 203 L only
Blank double-spaced AAP (2), SMB 205 L only
Extron Electronics, USA Extron Electronics, Europe
1230 South Lewis Street Beeldschermweg 6C
Anaheim, CA 92805 3821 AH Amersfoort, The Netherlands
800.633.9876 714.491.1500 +800.3987.6673 +31.33.453.4040
FAX 714.491.1517 FAX +31.33.453.4050
www.extron.com
4 SMB 203 L and SMB 205 L Installation Guide
Association)

Part number

60-942-02, -03
60-943-02, -03
Replacement
part number
70-090-12 (black)
70-090-22 (white)
70-090-12 (black)
70-090-22 (white)
68-1497-01 Rev. A
Extron Electronics, Asia Extron Electronics, Japan
135 Joo Seng Rd. #04-01 Kyodo Building, 16 Ichibancho
PM Industrial Bldg., Singapore 368363 Chiyoda-ku, Tokyo 102-0082
+800.7339.8766 +65.6383.4400 Japan
FAX +65.6383.4664 +81.3.3511.7655 FAX +81.3.3511.7656
SMB 203 L and SMB 205 L Installation Guide
N For illustration purposes, the following steps use the SMB 205 L as an example, but
1. For tabletop placement, the four included adhesive rubber feet may be applied to
the bottom corners of the mounting base.
2. For angled installations, securely mount the SMB using the two keyhole slots
and/or mounting holes in the mounting base.

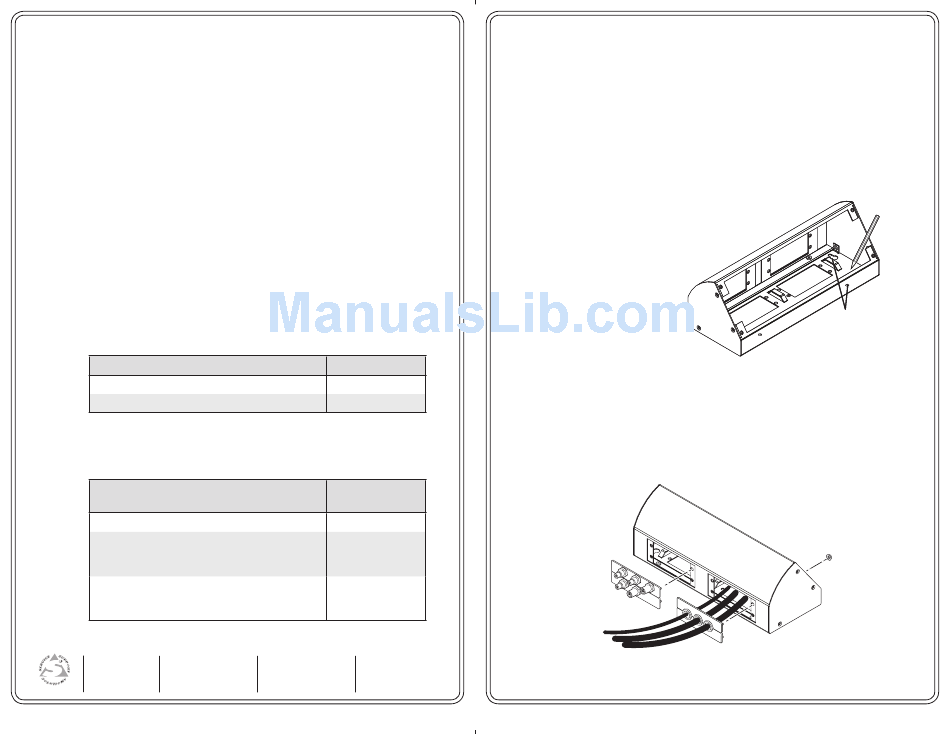

Mount the SMB using the keyhole slots and/or
the mounting holes:
• Position the SMB at the
desired location.
• Mark the holes on the
surface to be drilled. See
the illustration at right.
3. Drill 1/16" pilot holes for
the keyhole slots or the
mounting holes. For the
keyhole slots, insert screws
into the pilot holes, but
do not tighten them down until the SMB is slid into position. For the mounting
holes, position the SMB over the holes and secure the SMB into position.
4. Cables may access the SMB through the AAP openings in the rear panel and the
bottom mounting base.
If cables are to access the SMB through the rear panel, use the rear panel AAP
openings, as shown here. AAP modules are sold separately.
or
or
11 07
the instructions apply to the SMB 203 L as well.
Rear
AAPs
(not included)
Optional Split AAP
SMB 203 L and SMB 205 L Installation Guide
Mark pilot holes Mark pilot holes
for keyhole slot (1/16") for keyhole slot (1/16")
or mounting hole (1/16"). or mounting hole (1/16").
Mounting
Nuts
