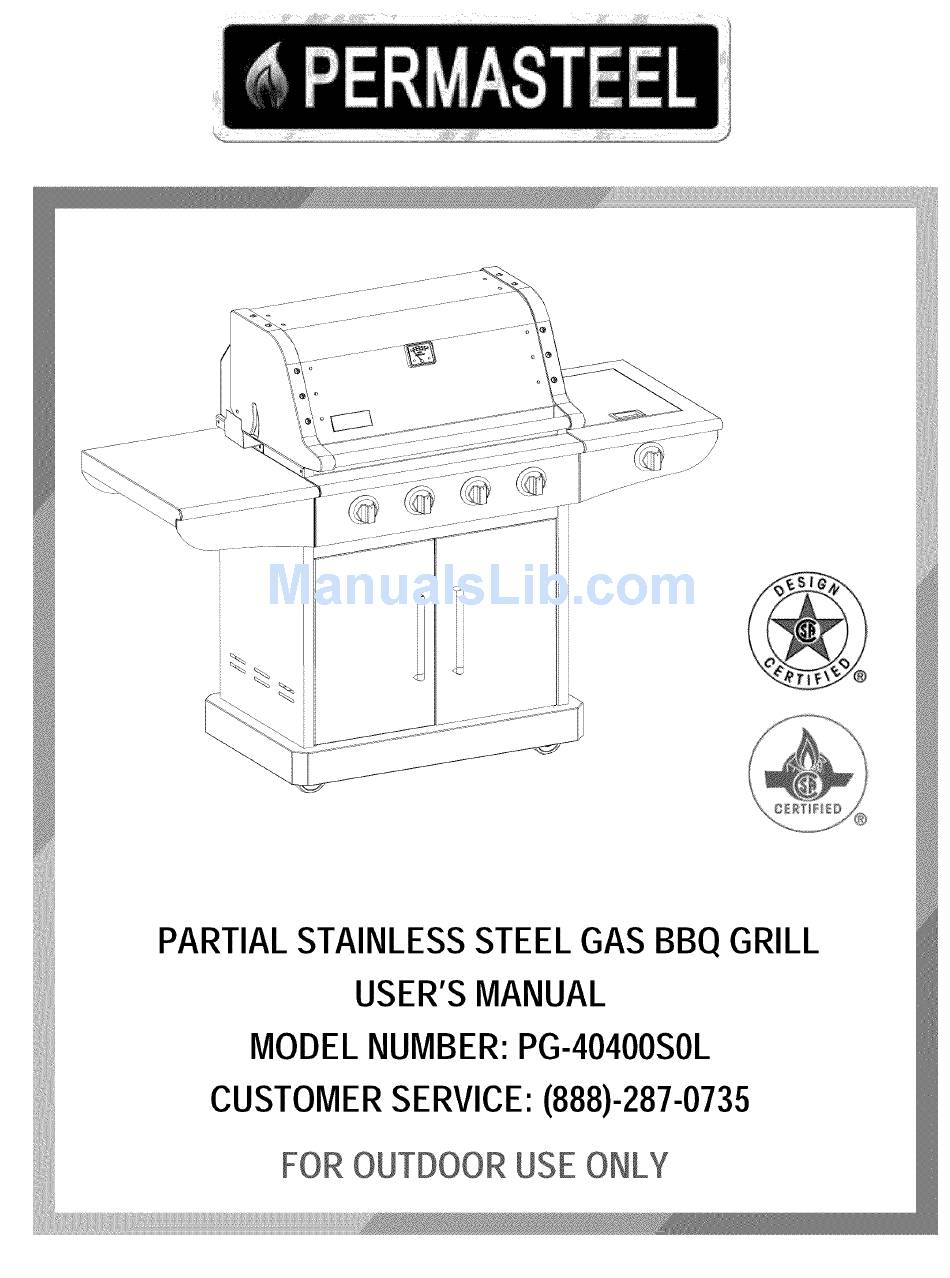

- Page 1 PARTIAL STAINLESS STEEL GAS BBQ GRILL USER'S MANUAL MODEL NUMBER: PG-40400S0L CUSTOMER SERVICE:(888)-287-0735 FOR OUTDOOR USE ONLY...
- Page 2 Product. If your Product is defective or otherwise requires service or parts, please first call PermaSteel Customer Service toll-free at (888)-287-0735, between 8:00 a.m. and 5:00 p.m., PST. Please tell us which model you purchased, the date of purchase, and the problem with your Product.
-
Page 3: Table Of Contents
BEFORE YOU BEGIN MESSAGE TO OUR USERS PAGE 1 SAFETY SYMBOLS PAGE 1 INSTALLATION & SAFETY PRECAUTIONS PAGE 2 PROPANE & GAS WARNING PAGE 2 ASSEMBLY PARTS PAGE 3 STEP I PAGE 5 STEP II PAGE 6 STEP III PAGE 7 SAFETY NOTICE PAGE 8 POST ASSEMBLY... -
Page 4: Message To Our Users
Thank you for your purchase of our Partial Stainless Steel BBQ Gas Grill. We sincerely wish you will enjoy using our fine products. • Please read this User's Manual in its entirety before using the grill. • Please contact our customer service at (888)-287-0735 if you have any questions. -
Page 5: Installation & Safety Precautions
FIRST BEFORE INSTALLING THE GRILL This grill is designed to use LP gas only. Please use the grill with the regulator supplied by PermaSteel. The installation of this appliance must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223. -
Page 6: Parts
REF# DESCRIPTION REF# Q'TY DESCRIPTION Q'TY Double-layer Cross Side Shelf Temp. Gauge Right Side Shelf handle Side Burner Valve Name Plate Side Burner Manifold handle Seats Side Burner Rotary Pins Bracket Side Burner #Varm Rack Side Burner Ignition Electrode Side Burner Base Sooking... - Page 7 /" \\ 31 44j / 4 %/ Notice: This part list is for your reference only, some parts will be different, please subject to the actual appliance in carton.
-
Page 8: Step Ipage
PLEASE READ AND FOLLOW THE INSTRUCTIONS CAREFULLY STEP BY STEP Tools Required: • #2 Philips head screwdriver (not provided) • Hexagon/Allen wrench (provided). • The following hardware bag is attached in left of warming rack packing foam. Item Description Specification Quantity Truss head screw (With Split lock And... - Page 9 STEP I1: Take out side burner hose with attached side burner valve from inside grill cabinet, through square opening of right side panel. Remove the packing materials. Use the provided hexagon wrench (Allen) to loosen (don't remove) the setscrew on the control knob, and pull out the knob. Remove the two M4"6 screws from front of side burner valve.
- Page 10 STEP II1: • Place the warming rack to warming rack brackets. • Attach the motor bracl_et in the left of firebox.
-
Page 11: Safety Notice
Safety Notice: When you move or change the regulator, make sure the regulator hose in the fixed ring, as the figure show below. -
Page 12: Gas Connection
ONLY USE THE REGULATOR AND HOSE ASSEMBLY PROVIDED WITH THIS GRILL. REPLACEMENT PRESSURE REGULATORS HOSE ASSEMBLIES MUST BE THOSE SUPPLIED BY THE MANUFACTURER This is a LP (Liquefied Petroleum Gas) configured grill. Do not attempt to use a natural gas supply unless the grill has been reconfigured for natural gas use. - Page 13 • CONNECT THE REGULATOR TO THE LP TANK VERY IMPORTANT: - THE REGULATOR SHALL NOT BE IN A LOCATION THAT WILL ATTAIN A TEMPERATURE ABOVE 140"F (60°C) - THE REGULATOR SHALL INCORPORATE A PRESSURE RELIEF VALVE OR OVERPRESSURE DEVICE. - THE INLET OF THE PRESSURE REGULATOR SHALL BE FITTED TO...
- Page 14 WARNING Never insert any foreign objects into the valve outlet. It may damage the valve and cause leak, leaking gas may result in fire, explosion, heavy body injury, or even death. Do not connect this grill to the self-contained LP gas system of a motor home or camper trailer.
-
Page 15: Leak Testing
GENERAL Although all gas connections on the grill are leak tested at the factory prior to shipment, a complete gas tightness check must be performed at the installation site due to possible mishandling in shipment, or excessive pressure unknowingly being applied to the unit. -
Page 16: Final Installation Check List
SAFETY TIPS: 1) ALWAYS CHECK FOR LEAKS AFTER EVERY LP TANK CHANGE. 2) ALWAYS CHECK FOR LEAKS BEFORE EACH USE. 3) USE LONG BBQ TOOL TO AVOID BURNS. 4) CHECK ALL GAS SUPPLY FITTINGS FOR LEAKS BEFORE EACH USE. IS HANDY TO KEEP A SPRAY BOTTLE OF SOAPY WATER NEAR THE SHUT-OFF... -
Page 17: Grill Lighting Instruction
VERY IMPORTANT: ALWAYS INSPECT THE HOSE PRIOR TO EACH USE. • BEFORE LIGHTING: Inspect the gas supply hose before turning the gas "ON". If there is evidence of cuts, wear, or abrasion, it must be replaced before use. The replacement hose assembly must be that specified... -
Page 18: Operating Instruction
Usage: Read instructions before lighting. Open the lid during lighting. Simply place a lighted match between the coils on the end of the lighting rod and hold next to the burner to ignite. 4) Push and turn the knob to "HI" position, make sure the burner lights and stays lit. - Page 19 WARNING For your safety: • Keep grill area clear and free from any flammable material. • NEVER let children operate the grill or play near the grill. • This grill is for outdoor use ONLY. NEVER use in an enclosed area such as a carport, porch, covered patio, garage, or under a surface that can catch fire.
- Page 20 1) Make sure the grill has been leak tested and is properly located. 2) Remove any packing material. 3) Light the grill burners using the instructions in this manual. 4) Turn the control knob to "HI" and preheat the grill for 15 minutes. Cautions: Never leave the grill unattended when the grill is on.
-
Page 21: Care & Maintenance
MAINTENCE 1) Keep the grill area clear and free from combustible materials, gasoline and other flammable vapors and liquids. 2) Keep the holes in the three sides of the cart clear and free from debris, thus ensure the flow of combustion and ventilation air is unobstructed. - Page 22 • BEFORE CALLING FOR SERVICE Please check the following problems/solutions before contacting our service center. POSSIBLECAUSE SOLUTIONS PROBLEMS Electrodedepositedwith Use cleanswab and alcoholto clean. cookingresidues Burnerwon't light Electrodedamaged Replace. afterturning and Electrodewires are loose Reconnector replacewith new electrode pushing the knobs or fall off assemblywith wires.
-
Page 23: Food Safety
FOOD SAFETY: 1) Always follow the following tips to enjoy safe and healthy outdoor grilling. 2) Always use hot soapy water to wash hands, surfaces & utensils after processing raw meat. 3) Always separate raw meat from cooked foods to avoid cross-contamination. 4) Always use clean utensils to handle the food. - Page 24 Registration form and (1) fax the form and a copy of your receipt to FAX # 909-287-0733, or (2) mail the form and a copy of your receipt to PermaSteel Inc, 14231 Fern Avenue, Building 10, Chino, CA 91710. "...
