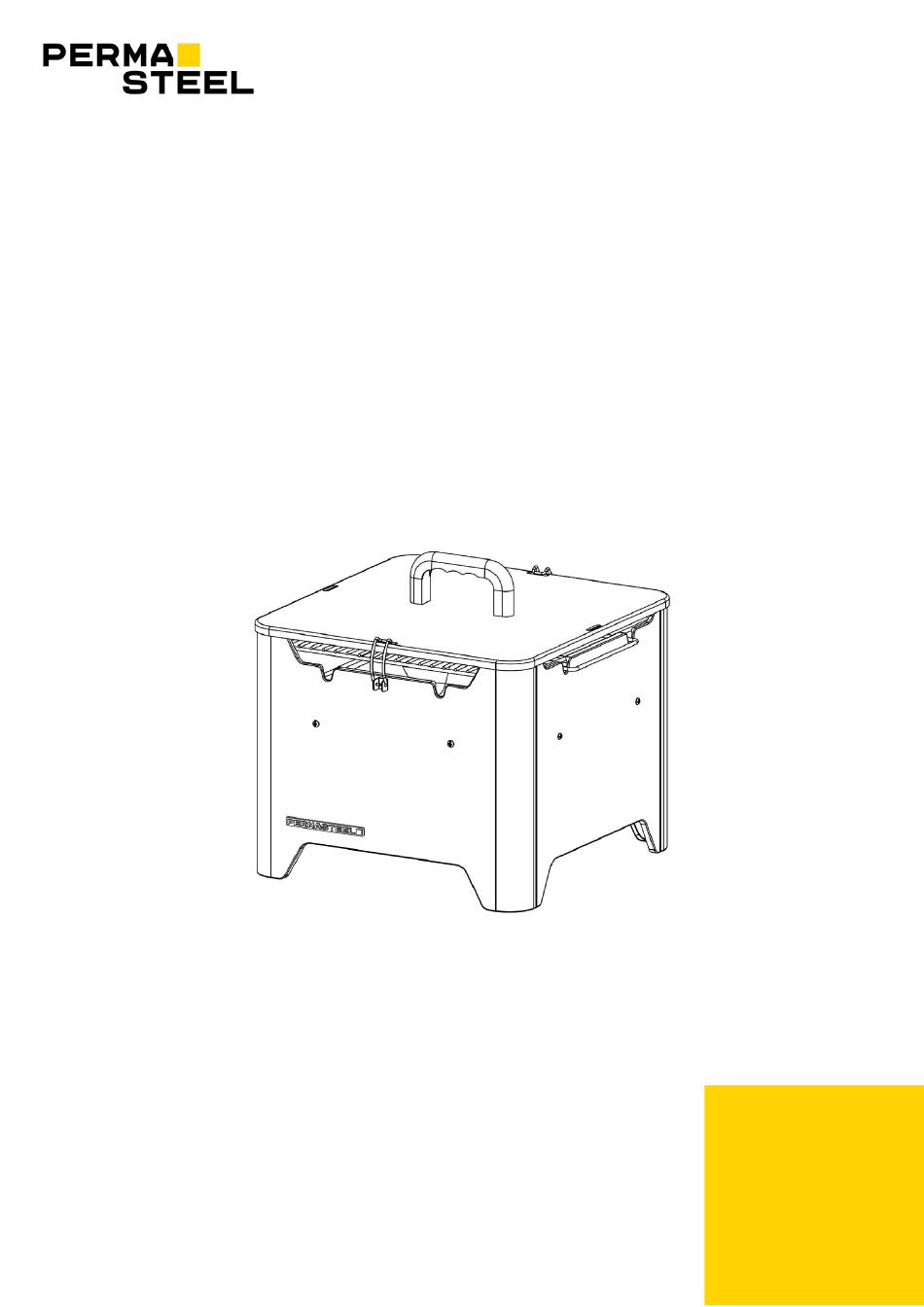

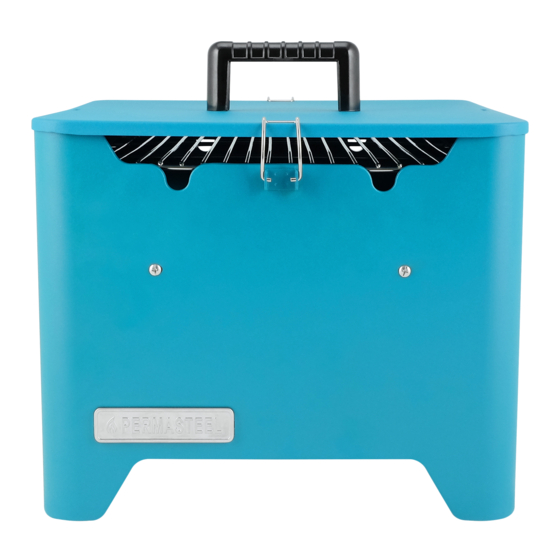

- Page 1 Permasteel Square Portable Charcoal Grill Use & Care Guide Model number: PG-40C10 Thank you for purchasing your new charcoal grill from Permasteel. We hope you enjoy your product. If you have any questions, please call us 1-888-287-0735 or visit www.permasteel.life...
-
Page 2: Table Of Contents
Table of content Important Safety Information Safety Symbols Installation /Safety Precautions Barbeque Safety Warning Exploded View Parts List Assembly Steps WARNING DANGER 1. This unit is designed for outdoor use only. Risk of explosion: 2. For safety reasons, this unit may not be 1. -
Page 3: Important Safety Information
Safety Important Symbols Safety Information The symbols listed here are being used Thank you for your purchase of our outdoor throughout this User’s Manual. Please pay special Portable Square Charcoal Grill. We sincerely wish attention to them. The meaning of each of the you will enjoy using our fine products. -
Page 4: Installation /Safety Precautions
Modification may cause serious bodily injury or property damage. 5) Grease the grilling rack with a little vegetable PermaSteel is not responsible for any oil and start grilling. modifications, and all warranties will be void. WARNING: This product can expose you to •... -
Page 5: Exploded View
Cooking Grate Charcoal Pan Inner Bracket Side Panel Back Panel Front Panel M4 x 10mm Bolt M6 Nut If you are missing any parts or have damaged parts, please call 1-888-287-0735 M-F 8:00-5:00 Pacific Time. For replacement, visit us at www.permasteel.life... -
Page 6: Assembly Steps
Assemble Steps Step 1 • Insert the left and right panels into the card slot of the front and back panels. - Page 7 Step 2: • Use (8) M4 x 10mm bolts to attach the 4 brackets inside the grill.
- Page 8 Step 3 • Turn over the grill and use the (4) M4 x 10mm bolts and (4) M4 nuts to attach the panels together.
- Page 9 Step 4 • Turn over the grill, place the charcoal pan and then the cooking grate inside the grill.
- Page 10 Step 5 • Insert the handle into the holes on the lid, screw (2) M6 nuts into the handle.
- Page 11 Step 6 • Place the lid on the grill, secure the lid with 2 latches on the side of the grill.
- Page 12 We hope you enjoy your product and we are always here for you: Visit us at: www.permasteel.life Customer Service: 1-888-287-0735 Email: service@permasteel.life Distributed by Permasteel Inc. 100 Exchange Place Pomona, CA 91768 Designed in California, Made in China...
