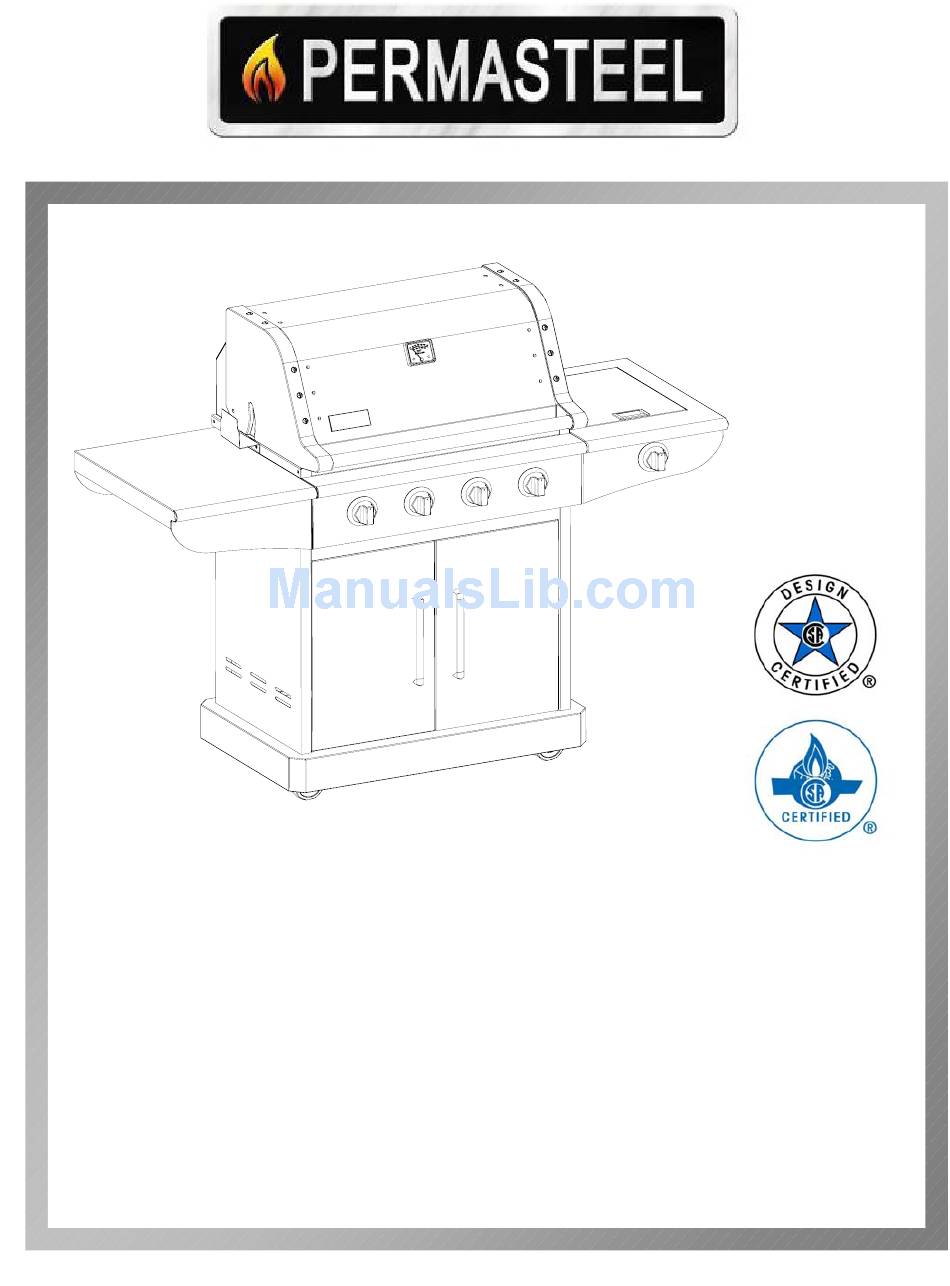

- Page 1 PARTIAL STAINLESS STEEL GAS BBQ GRILL USER’S MANUAL MODEL NUMBER: PG-40400S0L CUSTOMER SERVICE: (888)-287-0735 FOR OUTDOOR USE ONLY...
- Page 2 Product. If your Product is defective or otherwise requires service or parts, please first call PermaSteel Customer Service toll-free at (888)-287-0735, between 8:00 a.m. and 5:00 p.m., PST. Please tell us which model you purchased, the date of purchase, and the problem with your Product.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BEFORE YOU BEGIN MESSAGE TO OUR USERS PAGE 1 SAFETY SYMBOLS PAGE 1 INSTALLATION & SAFETY PRECAUTIONS PAGE 2 PROPANE & GAS WARNING PAGE 2 ASSEMBLY PARTS PAGE 3 STEP I PAGE 5 STEP II PAGE 6 STEP III PAGE 7 SAFETY NOTICE... -
Page 4: Message To Our Users
MESSAGE TO OUR USERS Thank you for your purchase of our Partial Stainless Steel BBQ Gas Grill. We sincerely wish you will enjoy using our fine products. Please read this User’s Manual in its entirety before using the grill. Please contact our customer service at (888)-287-0735 if you have any questions. Please read this User’s Manual carefully. -
Page 5: Installation/Safety Precautions
This grill is safety certified for use in the United States and Canada only. Never modify to use in other places. Modification may cause serious bodily injury or property damage. PermaSteel is not responsible for any modifications, and all warranties will be void. -
Page 6: Parts
GRILL PARTS LIST R E F # D E S C R IP T IO N Q ’ T Y R E F # D E S C R IP T IO N Q ’ T Y D o u b le - la y e r L id C r o s s B a r B , S id e S h e lf Te m p . - Page 7 GRILL PARTS DIAGRAM Notice: This part list is for your reference only, some parts will be different, please subject to the actual appliance in carton.
-
Page 8: Step Ipage
ASSEMBLY INSTRUCTIONS PLEASE READ AND FOLLOW THE INSTRUCTIONS CAREFULLY STEP BY STEP Tools Required: #2 Philips head screwdriver (not provided) Hexagon/Allen wrench (provided). The following hardware bag is attached in left of warming rack packing foam. Item Description Specification Quantity Truss head screw 1/4-20x1/2”... -
Page 9: Step Ii:
ASSEMBLY INSTRUCTIONS STEP II: Take out side burner hose with attached side burner valve from inside grill cabinet, through square opening of right side panel. Remove the packing materials. Use the provided hexagon wrench (Allen) to loosen (don’t remove) the setscrew on the control knob, and pull out the knob. Remove the two M4*6 screws from front of side burner valve. -
Page 10: Step Iii
ASSEMBLY INSTRUCTIONS STEP III: Place the warming rack to warming rack brackets. Attach the motor bracket in the left of firebox. -
Page 11: Safety Notice
ASSEMBLY INSTRUCTIONS Safety Notice: When you move or change the regulator, make sure the regulator hose in the fixed ring, as the figure show below. -
Page 12: Gas Connection
GAS CONNECTION ONLY USE THE REGULATOR AND HOSE ASSEMBLY PROVIDED WITH THIS GRILL. REPLACEMENT PRESSURE REGULATORS AND HOSE ASSEMBLIES MUST BE THOSE SUPPLIED BY THE MANUFACTURER This is a LP (Liquefied Petroleum Gas) configured grill. Do not attempt to use a natural gas supply unless the grill has been reconfigured for natural gas use. - Page 13 GAS CONNECTION CONNECT THE REGULATOR TO THE LP TANK VERY IMPORTANT: - THE REGULATOR SHALL NOT BE IN A LOCATION THAT WILL ATTAIN A TEMPERATURE ABOVE 140℉（60℃）. - THE REGULATOR SHALL INCORPORATE A PRESSURE RELIEF VALVE OR OVERPRESSURE DEVICE. - THE INLET OF THE PRESSURE REGULATOR SHALL BE FITTED TO CONNECT TO THE TYPE I CONNECTION OF THE TANK VALVE PER ANSIZ21.81.
- Page 14 GAS CONNECTION WARNING Never insert any foreign objects into the valve outlet. It may damage the valve and cause leak, leaking gas may result in fire, explosion, heavy body injury, or even death. Do not connect this grill to the self-contained LP gas system of a motor home or camper trailer.
-
Page 15: Leak Testing
LEAK TESTING GENERAL Although all gas connections on the grill are leak tested at the factory prior to shipment, a complete gas tightness check must be performed at the installation site due to possible mishandling in shipment, or excessive pressure unknowingly being applied to the unit. -
Page 16: Final Installation Checklist
LEAK TESTING SAFETY TIPS: 1) ALWAYS CHECK FOR LEAKS AFTER EVERY LP TANK CHANGE. 2) ALWAYS CHECK FOR LEAKS BEFORE EACH USE. 3) USE LONG BBQ TOOL TO AVOID BURNS. 4) CHECK ALL GAS SUPPLY FITTINGS FOR LEAKS BEFORE EACH USE. IT IS HANDY TO KEEP A SPRAY BOTTLE OF SOAPY WATER NEAR THE SHUT-OFF VALVE OF THE GAS SUPPLY LINE. -
Page 17: Grill Lighting Instruction
GRILL LIGHTING INSTRUCTION VERY IMPORTANT: ALWAYS INSPECT THE HOSE PRIOR TO EACH USE. BEFORE LIGHTING: Inspect the gas supply hose before turning the gas “ON”. If there is evidence of cuts, wear, or abrasion, it must be replaced before use. The replacement hose assembly must be that specified by the manufacturer. -
Page 18: Operating Instruction
GRILL LIGHTING INSTRUCTION Usage: 1) Read instructions before lighting. 2) Open the lid during lighting. 3) Simply place a lighted match between the coils on the end of the lighting rod and hold next to the burner to ignite. 4) Push and turn the knob to “HI” position, make sure the burner lights and stays lit. - Page 19 Turn off the gas supply when the grill is not in use. Always turn off the LP tank completely and detach from the grill before moving. TOTAL GAS CONSUMPTION: Total gas consumption (per hour) of PG-40400S0L grill with all burners on “HI”: Main burners 40,000 Btu/hr...
- Page 20 OPERATING INSTRUCTION 1) Make sure the grill has been leak tested and is properly located. 2) Remove any packing material. 3) Light the grill burners using the instructions in this manual. 4) Turn the control knob to “HI” and preheat the grill for 15 minutes. Cautions: Never leave the grill unattended when the grill is on.
-
Page 21: Care & Maintenance
CARE & MAINTENANCE MAINTENCE : 1) Keep the grill area clear and free from combustible materials, gasoline and other flammable vapors and liquids. 2) Keep the holes in the three sides of the cart clear and free from debris, thus ensure the flow of combustion and ventilation air is unobstructed. -
Page 22: Trouble Shooting
TROUBLE SHOOTING BEFORE CALLING FOR SERVICE Please check the following problems/solutions before contacting our service center. -
Page 23: Food Safety
FOOD SAFETY FOOD SAFETY: 1) Always follow the following tips to enjoy safe and healthy outdoor grilling. 2) Always use hot soapy water to wash hands, surfaces & utensils after processing raw meat. 3) Always separate raw meat from cooked foods to avoid cross-contamination. 4) Always use clean utensils to handle the food. -
Page 24: Product Registration
Product Registration form and (1) fax the form and a copy of your receipt to FAX # 909-287-0733, or (2) mail the form and a copy of your receipt to PermaSteel Inc, 14231 Fern Avenue, Building 10, Chino, CA 91710. - Page 25 PERMASTEEL, INC. 14231 FERN AVENUE, BUILDING 10, CHINO, CA 91710. TEL: (888)-287-0735 FAX: (909)-287-0733 EMAIL: SERVICE@PERMASTEEL.NET...
