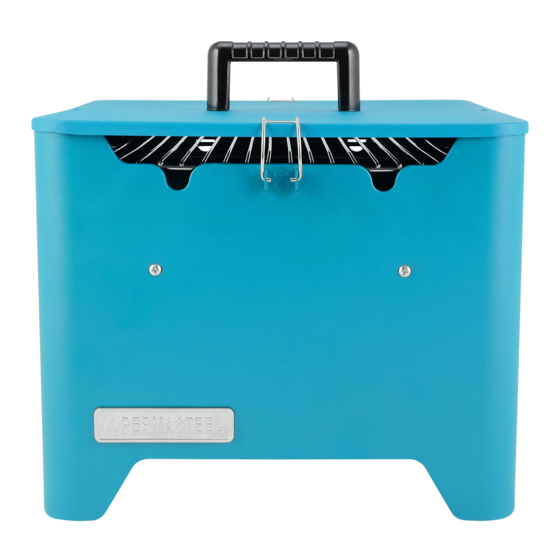

Portable Square Charcoal Grill
Instruction Manual
For Outdoor Use Only
Model No: PG-40C10
This product is sold by Permasteel Inc.
If you are missing any parts or have question
regarding this grill, please call our customer service
dept. 1-888-287-0735 / M-F / 8AM -5PM PST
Or email at:
service@permasteel.net
Advertisement
Related Manuals for PERMASTEEL PG-40C10
Summary of Contents for PERMASTEEL PG-40C10
- Page 1 Instruction Manual For Outdoor Use Only Model No: PG-40C10 This product is sold by Permasteel Inc. If you are missing any parts or have question regarding this grill, please call our customer service dept. 1-888-287-0735 / M-F / 8AM -5PM PST Or email at: service@permasteel.net...
-
Page 2: User Notes
User Notes ⚫ Please read the manual carefully before using the product ⚫ Keep this user manual for future reference ⚫ Outdoor use only ⚫ Outer shell of the grill can be very hot, please make sure to keep children away ⚫... - Page 4 Parts List 1. Handle 2. Lid 3. Cooking Grate 4. Charcoal Pan 5. Charcoal Tray Bracket 1 6. Charcoal Tray Bracket 2 2PCS 2PCS 7. Side Panel 8. Back Panel 9. Front Panel 2PCS...
- Page 5 Component Card Item No. Item name Diagram M4 x 8 mm Bolt M6 x 12 mm Bolt...
- Page 6 Installation Steps Step 1：Install the grill panel -- part 1 Insert a side panel (Part 7) into the card slot of front panel (Part 9) and back panel (Part 8) buckle it. Installation method is as shown in the figure below. Step 2：Install the grill panel -- part 2 Insert the other side panel (Part 7)
- Page 7 Step 3：Install charcoal tray bracket Use 8 pcs M4x8mm bolts (Part A) to install the 4pcs charcoal pan bracket 1 (Part 5) charcoal pan bracket 2 (Part 6) in the positions shown in the figure below. The installation method is shown in the figure below.
- Page 8 Step 5： Install charcoal pan and cooking grate Turn over the grill body. Place the charcoal pan (Part 4) on the charcoal pan bracket. And then place the cooking grate (Part 3) with the handles on the grooves of the side panels. The installation method is shown in the figure below.
- Page 9 Step 7：Install lid Place the lid on the grill body, lock with the lock. (This feature is for transport and storage.) The installation method is shown in the figure below. Tips：1. This is an open grill，please remove the lid before grilling. 2. The feature of the lid with handle is for transport and storage.
- Page 10 DANGER Risk of cuts Every care has been taken at the factory to ensure that there are no sharp edges on this unit. Be careful when handling the individual components of this unit to prevent accidents and injuries when assembling and starting up the unit. Before use, please note: Always select a secure, even surface and a suitable place for charcoal grilling.
