Specifications
Video input — RGB 580 xi xi xi xi xi AAP / CCS AAP / CCSI AAP
Number/signal type .......................... 1 analog RGBHV, RGBS, RGsB, RsGsBs
Connectors ........................................... 1 15-pin HD female
Video output — RGB 580 xi xi xi xi xi AAP / CCS AAP / CCSI AAP
Number/signal type .......................... 1 analog RGBHV, RGBS, RGsB
Connectors ........................................... 1 15-pin HD female
General
Temperature/humidity ..................... Storage -40° to +158°F (-40° to +70°C) / 10%
to 90%, non-condensing
Operating +32° to +122°F (0° to +50°C) / 10%
to 90%, non-condensing
Enclosure dimensions
RGB 580xi AAP/Cable Cubby AAP models (double-height plates)
Faceplate ................................ 1.4" H x 3.5" W (3.6 cm H x 8.9 cm W)
Circuit board ......................... 1.3" H x 2.5" W x 0.9" D
(3.3 cm H x 6.4 cm W x 2.3 cm D) Depth
excludes connectors and knobs.
Shipping weight .................................. AAP models . 1 lb (0.5 kg)
Vibration .............................................. ISTA/NSTA 1A in carton (International Safe
Transit Association)
Approvals ............................................ UL, CUL, CE, FCC Class A
MTBF .................................................... 30,000 hours
Warranty .............................................. 3 years parts and labor
Specifications are subject to change without notice.
Extron Electronics, USA
Extron Electronics, Europe
1230 South Lewis Street
Beeldschermweg 6C
Anaheim, CA 92805
3821 AH Amersfoort
USA
The Netherlands
714.491.1500
+31.33.453.4040
www.extron.com
Fax 714.491.1517
Fax +31.33.453.4050
© 2006 Extron Electronics. All rights reserved.
Extron Electronics, Asia
Extron Electronics, Japan
135 Joo Seng Road, #04-01
Kyodo Building
PM Industrial Building
16 Ichibancho
Singapore 368363
Chiyoda-ku, Tokyo 102-0082 Japan
+65.6383.4400
+81.3.3511.7655
Fax +65.6383.4664
Fax +81.3.3511.7656

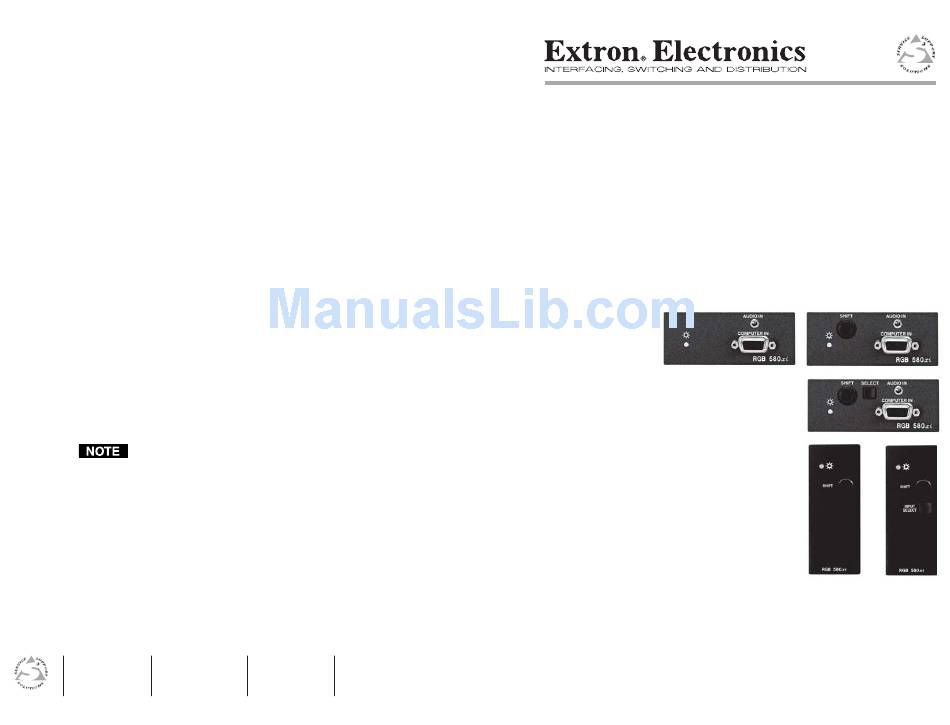

User's Guide
RGB 580 xi xi xi xi xi AAP/CC AAP Series
RGB 580xi xi xi xi xi AAP, RGB 580xi xi xi xi xi S/CCS AAP,
RGB 580xi xi xi xi xi SI/CCSI AAP
68-537-01 Rev. C
03 06
Advertisement
Related Manuals for Extron electronics CC AAP Series
Summary of Contents for Extron electronics CC AAP Series
-
Page 1: Specifications
Chiyoda-ku, Tokyo 102-0082 Japan +81.3.3511.7655 Fax +81.3.3511.7656 RGB 580 xi xi xi xi xi AAP/CC AAP Series RGB 580xi xi xi xi xi AAP, RGB 580xi xi xi xi xi S/CCS AAP, RGB 580xi xi xi xi xi SI/CCSI AAP 68-537-01 Rev. -
Page 2: Installation And Operation
Extron product which has an AAP faceplate or to an AAP wallplate. See the “AAP Device Part Numbers” and the “Cable Cubby AAP Device Part Numbers” sections for AAP/CC AAP part numbers. RGB 580xi xi xi xi xi AAP/CC AAP Series Features RGB 580xi AAP AUDIO IN SHIFT... - Page 3 Installation and Operation Cable Clamp AAP 102 Cable P 10 RGB 580xi SI AAP #4-40 Nut w/ Captive Washer Example of mounting an AAP device to a wallplate Cabling the AAP/Cable Cubby AAP Device Rear Connectors Extron’s various AAP/Cable Cubby AAP devices for the RGB 580xi may come with several rear connectors that may require cabling.
-
Page 4: Part Numbers
Part Numbers AAP Devices Description RGB 580xi AAP 3' (black, white, RAL9010 white) RGB 580xi AAP 6' (black, white, RAL9010 white) RGB 580xi S AAP 3' (black, white, RAL9010 white) RGB 580xi S AAP 6' (black, white, RAL9010 white) RGB 580xi SI AAP 3' (black, white, RAL9010 white) RGB 580xi SI AAP 6'...
