Installation and Operation
Cable
Clamp
#4-40 Nut w/ Captive
Washer

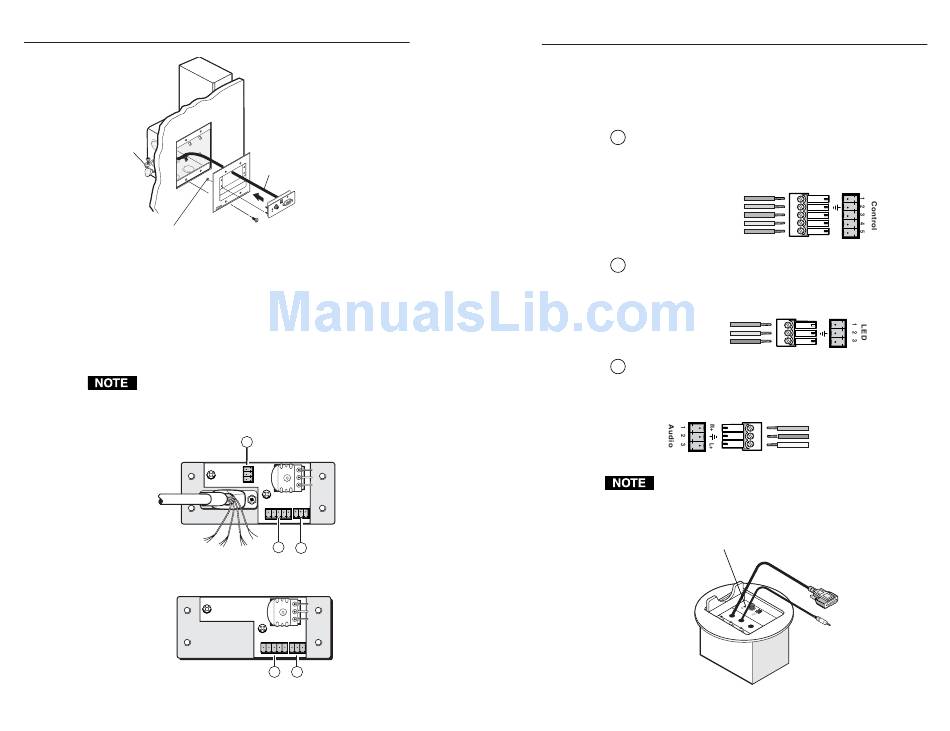

Example of mounting an AAP device to a wallplate
Cabling the AAP/Cable Cubby AAP Device
Rear Connectors
Extron's various AAP/Cable Cubby AAP devices for the
RGB 580xi may come with several rear connectors that may
require cabling.
Although the control cable, LED, and audio assemblies
will come prewired (AAP only) to the captive screw
connectors, any subsequent cable assembly replacement
will require the following cabling instructions.
Red
Black
White
Example of AAP device rear connectors
Example of Cable Cubby AAP device rear connectors
4 RGB 580xi xi xi xi xi AAP • Installation and Operation
AAP 102
Cable
2
P 10
A A
AU DIO
R
TE
M PU
CO
UT AA P
INP CT i SI
LE 0x
SE B 58
RG
IFT
H SH
RGB 580xi SI AAP
3
J3
J4 J2
Lt. Blue
1
Purple 2
Yellow Green
Gray
Pink
Brown
Orange
J4 J2
1 2
Installation and Operation
To cable the captive screw connectors, please refer to the
following diagrams and orient the wires according to the view
angle of the captive screws. When using Extron's VGA and
control cable assembly (see the "Cables" section for part
numbers), refer to the color of each wire for signal identification.
Control connector (J4) — Insert wires into and tighten the
1
screws on this 3.5 mm, 5-pole captive screw connector.
This connector is used for contact closure and horizontal
shift signals. Wire the connector as shown below.
+
Horizontal shift (green)
Horizontal shift ground (gray)
–
Horizontal shift (brown)
+
Contact closure (light blue)
–
Contact closure (purple)
LED connector (J2) — Insert wires into and tighten the
2
screws on this 3.5 mm, 3-pole captive screw connector.
This connector is used for powering the green/amber LED.
Wire the connector as shown below.
Green LED (pink)
LED ground (yellow)
Amber LED (orange)
Audio output connector (J3) — Insert wires into and
3
tighten the screws on this 3.5 mm, 3-pole captive screw
connector. This connector is used for unbalanced stereo
audio output. Wire the connector as shown below.
On Cable Cubby AAP models, the VGA and audio cable
assemblies will be routed through the Cable Cubby. Refer
to the Cable Cubby User's Manual (part #68-701-01) for
Cable Cubby installation instructions.
RGB 580 xi CCSI AAP
RGB 580xi xi xi xi xi AAP • Installation and Operation
Audio right (red)
Audio ground (black)
Audio left (white)
CC AAP VGA connector
CC AAP Audio connector
Cable Cubby
5
