Installation and Operation

Extron's RGB 580xi AAP double-space devices are designed to
complement the RGB 580xi remote interface. They may be
mounted to any Extron product which has an AAP faceplate or to
an AAP wallplate. See the "AAP Device Part Numbers" and the
"Cable Cubby AAP Device Part Numbers" sections for AAP/CC
AAP part numbers.

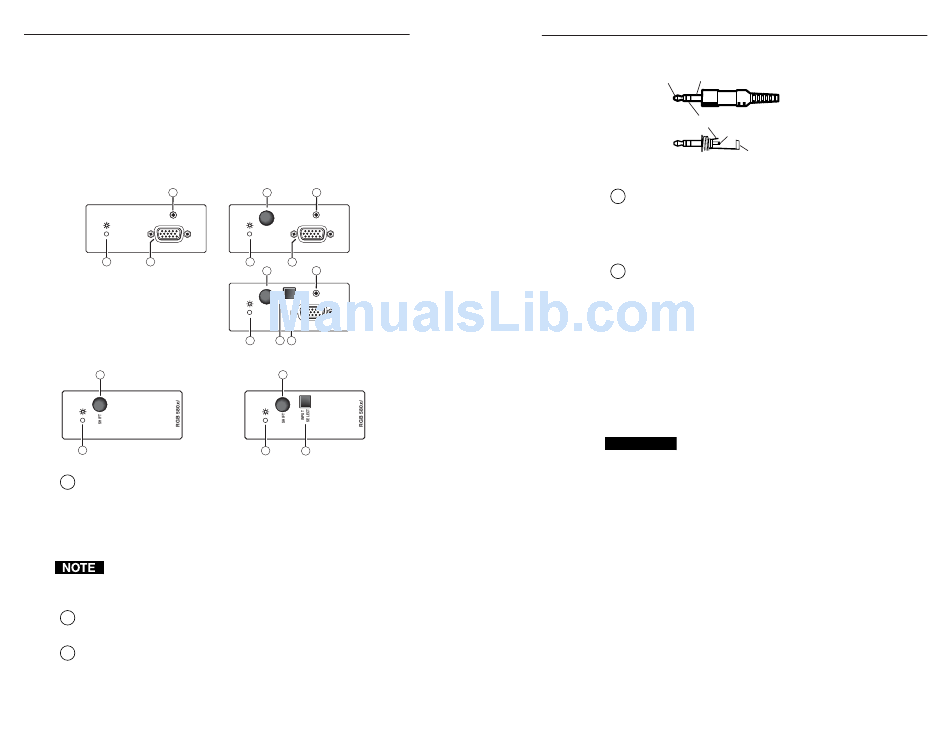

RGB 580xi xi xi xi xi AAP/CC AAP Series Features
3
RGB 580xi AAP
AUDIO IN
COMPUTER IN
RGB 580xi
1 2
4
RGB 580xi CCS AAP
1
Power/signal LED — This LED lights
1
• amber to indicate that the AAP device is receiving
power.
• green to indicate that an active sync signal is present at
the input and the AAP device is receiving power.
The LED will flash green whenever the minimum and
maximum limits of the horizontal shift control (H. shift)
have been reached.
Computer video input connector — Attach a cable from
2
the computer source to this 15-pin HD female connector.
Audio input connector — Plug a 3.5 mm stereo plug into
3
this jack for unbalanced audio input. Wire the male plug as
shown in the following illustration.
RGB 580xi xi xi xi xi AAP • Installation and Operation
2
4 3
RGB 580xi S AAP
SHIFT AUDIO IN
COMPUTER IN
RGB 580xi
1 2
4 3
RGB 580xi SI AAP
SELECT
SHIFT
AUDIO IN
COMPUTER IN
RGB 580xi
1 5 2
4
RGB 580xi CCSI AAP
1 5
Installation and Operation
Tip (L) Sleeve (GND)
Ring (R)
Audio input wiring
Horizontal shift control knob — While viewing the
4
displayed image, rotate this control to move the image to
the right or left on the screen. The power/signal LED will
flash green whenever the minimum and maximum limits
of this control are reached.
Input select button — Pressing this button will result in
5
contact closure between pins A and B of the contact closure
control connector on the front panel of the RGB 580xi
remote interface. This button can also be used for direct
control of any Extron contact closure-controlled switcher,
or as a direct connection to an external control system.
Mounting the RGB 580xi xi xi xi xi AAP Device
The AAP device should be cabled before attaching the AAP
device to a faceplate or wallplate. The screws needed for
installing an AAP device are built into its front panel, so no
additional screws will be needed.
CAUTION Installation and service must be performed by
authorized personnel only.
1. Connect the output cables to the AAP device's rear
connectors. See the section "Cabling the AAP/Cable Cubby
AAP Device Rear Connectors" in this user's guide.
2. Insert the AAP device's screws through the holes in the AAP
double-space faceplate, the AAP wallplate, or the Cable
Cubby AAP shelf bracket. Secure the AAP device to the
faceplate/wallplate/shelf bracket with the provided captive
washers and #4-40 nuts.
RGB 580xi xi xi xi xi AAP • Installation and Operation
Tip (L)
Sleeve (GND)
3
