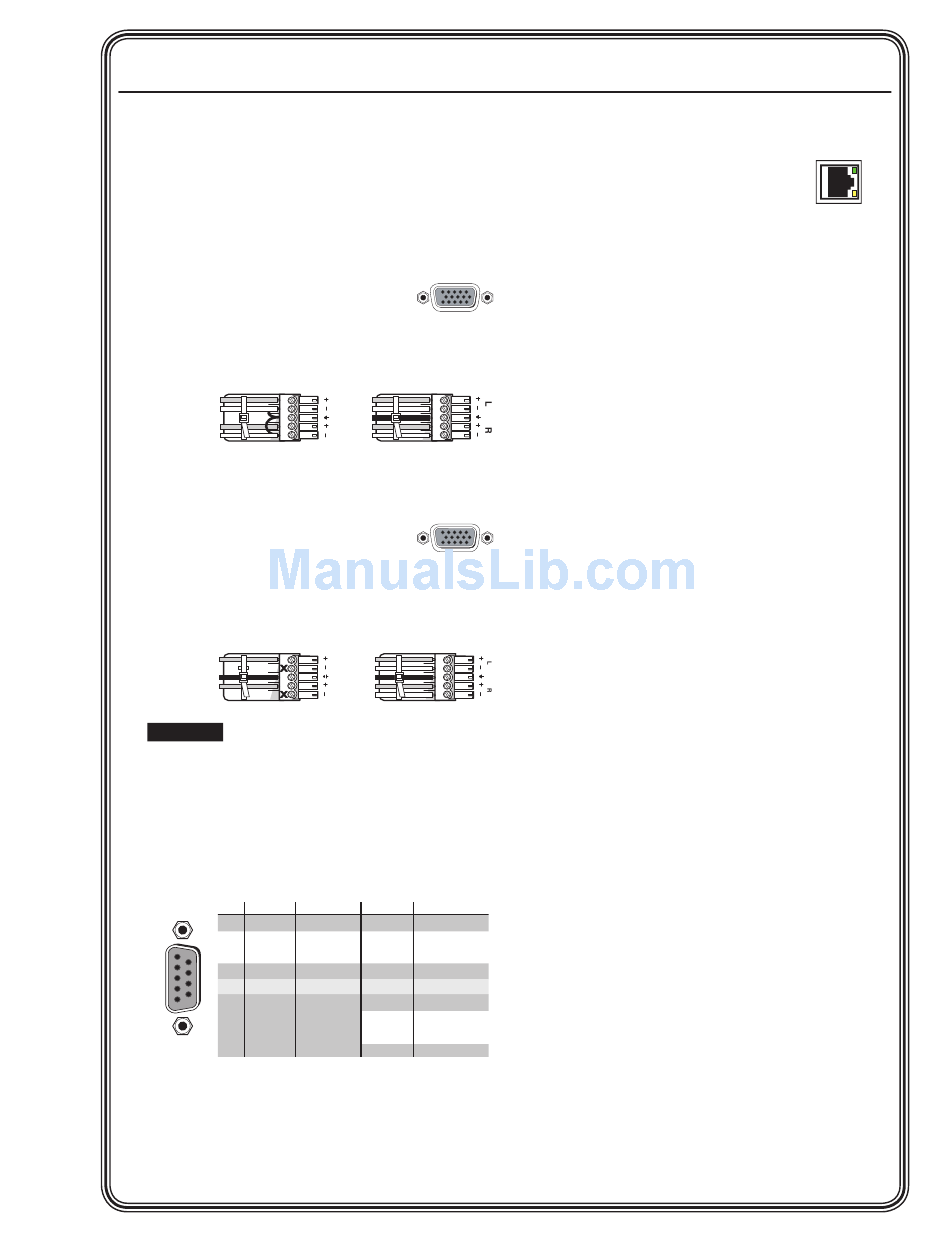

Quick Start — MVX Plus 128 VGA A Matrix Switcher
Installation
Step 1
Turn off power to the input and output devices,
and disconnect the power cords.
Step 2 — Inputs
a. Connect up to 12 high resolution
video inputs to the 15-pin HD
input connectors.
b. Connect up to 12 stereo or mono audio
inputs to the 5-pin captive screw connectors.
Tip
Sleeve
Tip
Sleeve
Unbalanced Input
(high impedance)
Step 3 — Outputs
a. Connect up to 8 high resolution
video devices to the 15-pin HD
output connectors.
b. Connect up to 8 balanced or unbalanced
stereo audio or mono audio devices to the
5-pin captive screw connectors.
Tip
NO GROUND HERE.
Sleeve(s)
Tip
NO GROUND HERE.
Unbalanced Output
CAUTION
Connect the sleeve to ground.
Connecting the sleeve to a negative (-)
terminal will damage the audio output
circuits.
Step 4 — RS-232/RS-422
If desired, connect a control system or computer
to the Remote RS-232/RS-422 port.
Pin RS-232 Function
1 — Not used
2 TX Transmit
1 3 RX Receive
6
4 — Not used
5 Gnd Ground
9
5
6 — Not used
7 — Not used
8 — Not used
9 — Not used
Step 5
If desired, connect a control system or computer
to the front panel Configuration (RS-232) port.
Use an optional 9-pin D to 2.5 mm mini jack
TRS RS-232 cable, part #70-335-01.
Tip
Ring
Sleeve (s)
Tip
Ring
Balanced Input
(high impedance)
Tip
Ring
Sleeve(s)
Tip
Ring
Balanced Output
RS-422 Function
— Not used
TX– Transmit (–)
RX– Receive (–)
— Not used
Gnd Ground
— Not used
RX+ Receive (+)
TX+ Transmit (+)
— Not used
MVX Plus 128 VGA A Matrix Switcher • Quick Start
Step 6 — Ethernet
If desired, connect a network WAN or
LAN hub, a control system, or computer
to the Ethernet RJ-45 port. See chapter 2,
"Installation", for details.
• Network connection — Wire as a patch
(straight) cable.
• Computer or control system connection —
Wire the interface cable as a crossover cable.
Step 7 — Power
Plug the switcher into a grounded AC source.
Definitions
Tie — An input-to-output connection
Set of ties — An input tied to 2 or more outputs
Configuration — One or more ties or sets of ties
Current configuration — The currently active
configuration (also called configuration 0)
Global preset — A configuration that has been
stored. One global preset can be assigned
to each input button. When a global preset
is retrieved from memory, it becomes the
current configuration.

Front Panel Controls

Input and output buttons select inputs and
outputs. Output buttons light amber to
indicate video and audio ties. The buttons
light green to indicate video-only ties. The
buttons light red to indicate audio-only ties.
Input and output buttons also select presets.
The output buttons also display the selected
input's audio level.
The input buttons also display the selected
output's volume level.
Enter button saves changes.
Preset button saves a configuration as a preset or
recalls a previously-defined preset.
View button selects a view-only mode that
prevents inadvertent configuration changes.
On audio models, View decrements the level
and volume. See "Viewing and adjusting the
audio level" on page QS-2.
QS-1
