Extron electronics DVIAM-VGAF Specifications

DVI & HDMI Adapters

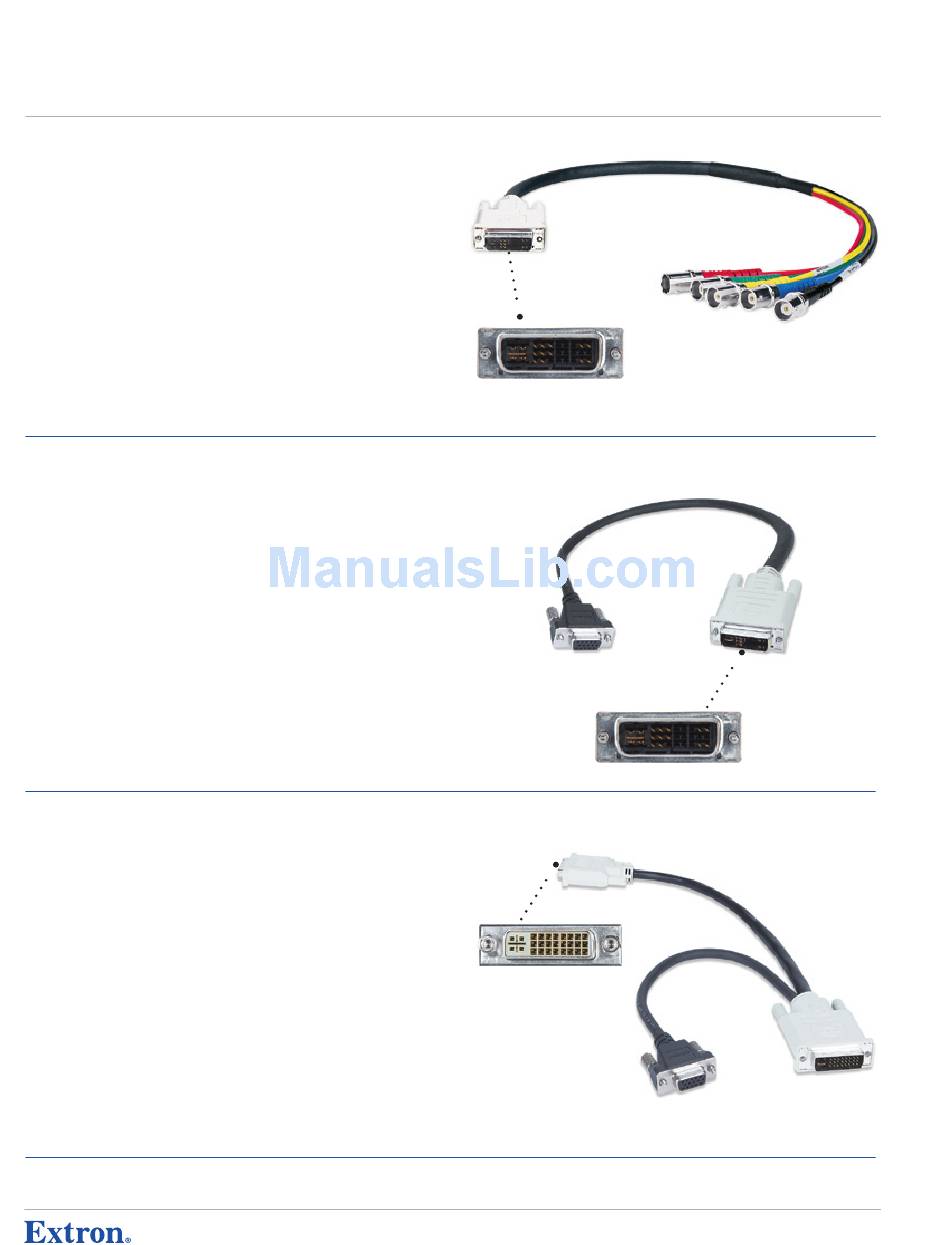

SY DVIAM-RGBHVF
DVI-A Male to BNC Female Adapter
DEsCrIPtIon
The Extron SY DVIAM-RGBHVF adapter is designed for connecting HDTV receivers, graphics
cards, and digital displays with DVI-I connectors into analog RGBHV A/V systems. Manufactured
using Extron's five conductor Mini High Resolution cable, the SY DVIAM-RGBHVF adapter
supports high resolution RGBHV and HDTV video signals. The Extron SY DVIAM-RGBHVF is
terminated with a DVI-A male connector to interface with the analog contacts of the DVI-I
connector on one end and five 75 ohm machined BNC female connectors on the other end.
Note: SY DVI adapter is only compatible with DVI-I connectors that utilize their analog contacts. Digital
signals are not supported with this adapter. Check your source (HDTV receiver, graphics card),
or digital display manufacturer's specifications to ensure their DVI-I connector supports
RGBHV. This adapter is not compatible with DVI-D connectors.
MoDEl
SY DVIAM-RGBHVF
DVIAM-VGAF
DVI-A Male to 15-pin HD Female Cable
DEsCrIPtIon
The Extron DVIAM-VGAF is a DVI-A male to 15-pin HD female 6" (15 cm) cable to connect
HDTV receivers, graphics cards, and digital displays with DVI-I connectors into analog RGBHV
A/V systems. The DVI-A male to VGA female cable supports high resolution RGBHV and HDTV
video signals. The Extron DVIAM-VGAF is terminated with a DVI-A male connector to interface
with the analog contacts of the DVI-I connector on one end and 15-pin HD female connector
on the other end.
Note: DVIAM-VGAF cable is only compatible with DVI-I connectors that utilize their analog contacts.
Digital signals are not supported with these cables. Check your source (HDTV receiver, graphics
card), or digital display manufacturer's
analog RGBHV. The DVIAM-VGAF adapter is not compatible with DVI-D
MoDEl
DVIAM-VGAF
DVIIM-VGAF/DVIIF
DVI-I Male to 15-pin HD Female and DVI-I Female "Y" Adapter
DEsCrIPtIon
The Extron DVIIM-VGAF/DVIIF is a DVI-I male to 15-pin HD female and DVI-I female "Y"
adapter designed for connecting HDTV receivers and graphics cards to both digital displays
with digital DVI-I inputs and analog RGBHV A/V systems. The DVI-I male to VGA female and
DVI-I female "Y" adapter supports high resolution RGBHV and HDTV video signals. The DVIIM-
VGAF/DVIIF is terminated with a DVI-I male connector with the analog contacts terminated to the
15-pin HD female connector and the digital contacts terminated to the DVI-I female connector
(analog signal is not supported to this connector).
Note: DVIIM-VGAF/DVIIF is only compatible with DVI-I connectors that utilize both analog and digital
contacts. Check your source (HDTV receiver, graphics card) manufacturer's specifications to
ensure their DVI-I connector supports both analog and digital signals. Analog signals are only
routed to the VGA female connector.
MoDEl
DVIIM-VGAF/DVIIF
568
VErsIon DEsCrIPtIon
6"
(15 cm)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
specifications to ensure their DVI-I connector supports
connectors.
VErsIon DEsCrIPtIon
6"
(15 cm)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VErsIon DEsCrIPtIon
12"
(30 cm)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USa West USa West
+1.714.491.1500 / +800.633.9876 +1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX +1.714.491.1517 FAX
analog
DVI-A Male
DVI-I Female
USa East USa East
+1.919.863.1794 / +800.633.9876 +1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX +1.919.863.1797 FAX
D V I & H D M I c A b l E s A n D A D A p t E r s
PArt #
26-609-01
DVI-A Male
PArt #
26-619-01
PArt #
26-612-01
www.extron.com www.extron.com
© 2008 Extron Electronics. All rights reserved. © 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice. Pricing and specifications may change without notice.
