DPH 101 • User Guide

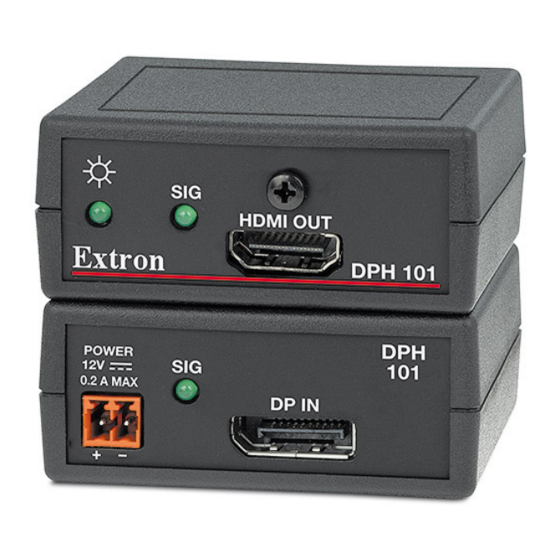

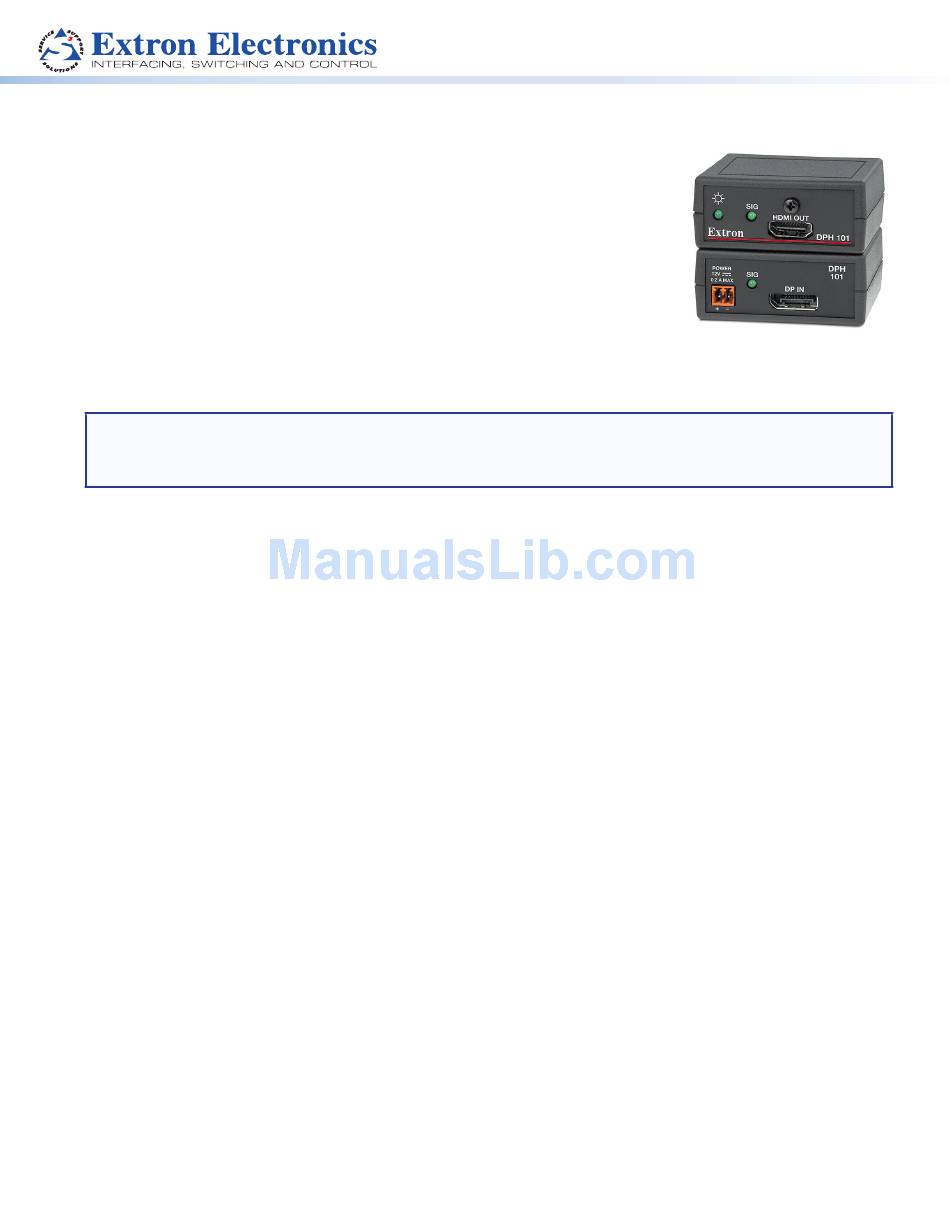

The Extron DPH 101 DisplayPort to HDMI active adapter equalizes incoming DisplayPort
sources up to 15 feet (4.5 meters) at the input to compensate for signal loss. The DPH 101
then reconditions the signal, ensuring signal integrity up to an additional 15 feet (4.5 meters)
from the output to the connected HDMI device.
FCC Class A Notice
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause interference; the user
must correct the interference at his own expense.
NOTE:
This unit was tested with shielded
compliance with FCC emissions limits.
For more information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related
topics, see the "Extron Safety and Regulatory Compliance
Specifications Availability
Product specifications are available on the Extron website, www.extron.com.
Features
• Provides connectivity between Type 2 enabled, 4K-capable Dual-Mode DisplayPort equipped sources and HDMI sink
devices
• Equalizes incoming DisplayPort signals up to 15 feet (4.5 meters) to compensate for signal loss
• Reconditions HDMI signals at the output to ensure signal integrity up to 15 feet (4.5 meters) to the connected HDMI device
• Supports computer video to 2560x1600, HDTV 1080p/60 Deep Color, and 4K resolutions
• Passes EDID information from HDMI display to the source
• HDCP compliant
• Supports data rates of 3.4 Gbps per color (10.2 Gbps total)
• LED indicator for signal presence and power — Provides visual indication of system status for real-time feedback and
monitoring of key performance parameters
• Shares power supply with another Extron product or optional external power supply
