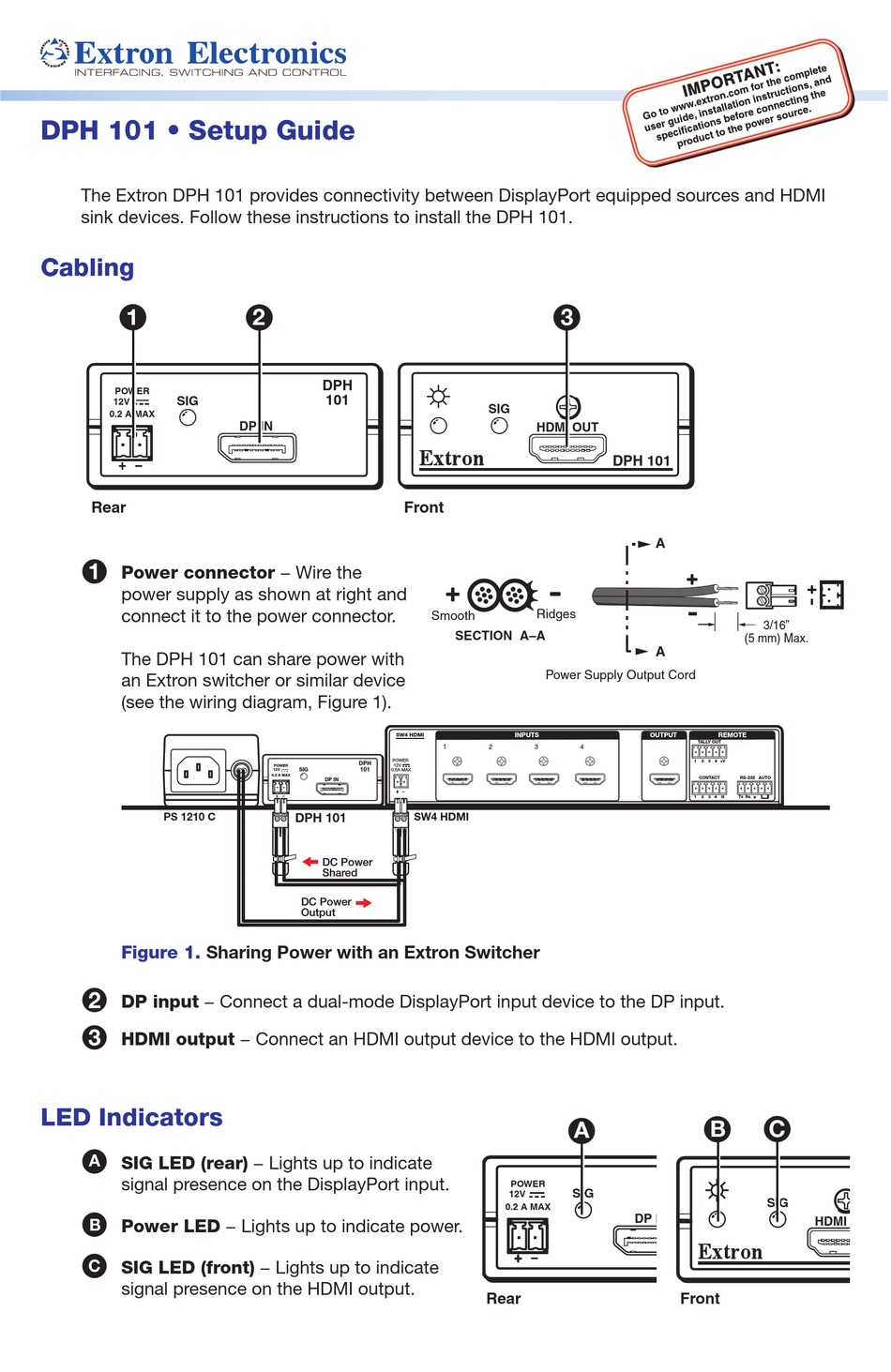

DPH 101 • Setup Guide

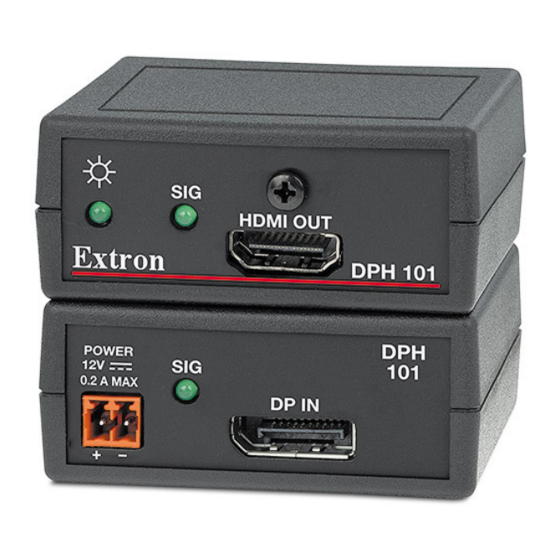

The Extron DPH 101 provides connectivity between DisplayPort equipped sources and HDMI
sink devices. Follow these instructions to install the DPH 101.

Cabling

1
POWER
SIG
12V
0.2 A MAX
Rear
1
Power connector − Wire the
power supply as shown at right and
connect it to the power connector.
The DPH 101 can share power with
an Extron switcher or similar device
(see the wiring diagram, Figure 1).
PS 1210 C
Figure 1. Sharing Power with an Extron Switcher
2
DP input − Connect a dual-mode DisplayPort input device to the DP input.
3
HDMI output − Connect an HDMI output device to the HDMI output.

LED Indicators

A
SIG LED (rear) − Lights up to indicate
signal presence on the DisplayPort input.
B
Power LED − Lights up to indicate power.
C
SIG LED (front) − Lights up to indicate
signal presence on the HDMI output.
2
DPH
101
DP IN
Front
SW4 HDMI
POWER
DPH
POWER 12V
101
SIG
12V 0.5A MAX
0.2 A MAX
DP IN
DPH 101
DC Power
Shared
DC Power
Output
POWER
12V
0.2 A MAX
Rear
3
SIG
IMPORTANT:
HDMI OUT
Refer to www.extron.com for the complete
user guide, installation instructions, and
specifications before connecting the
product to the power source.
Ridges
Smooth
SECTION A–A
Power Supply Output Cord
INPUTS
1 2 3
SW4 HDMI
A A
POWER
SIG SIG
12V
0.2 A MAX
DP IN
Rear
DPH 101
A
(5 mm) Max.
A
OUTPUT REMOTE
TALLY OUT
4
1 2 3 4 +V
CONTACT RS-232 AUTO
1 2 3 4 G Tx Rx
B
DPH DPH
101
101
DP IN
Front
3/16"
C B C
SIG S
HDMI OUT
Front
