Extron electronics CVEQ1 Series Brochure & Specs

CVEQ1 Series
Composite Video and Audio Line Drivers with Video Gain and Equalization

Common feAtures

Inputs: Female BNC and RCA connectors
•
Compatible with NTSC, PAL, SECAM, and stereo audio
•
Peaking/equalization and gain controls
•
Active audio buffering
•
185 MHz (-3 dB) video bandwidth
•
Audio response: 20 Hz to 20 kHz (±0.05 dB)
•
Camera
uSA uSA europe europe
714.491.1500 / 800.633.9876 714.491.1500 / 800.633.9876 +31.33.453.4040 / +800.3987.6673 +31.33.453.4040 / +800.3987.6673
714.491.1517 714.491.1517 +31.33.453.4050 +31.33.453.4050
FAX FAX
V ID
Extron
E O
IN P
U T
CVEQ1
A U
D IO
IN P
L
U T
Line Driver
R
C V
E Q
1
Audio
Asia Asia
+65.6383.4400 / +800.7339.8766 +65.6383.4400 / +800.7339.8766
+65.6383.4664 +65.6383.4664
FAX FAX FAX FAX
D i s t r i b u t i o n A m p l i f i e r s — l i n e D r i v e r s
DesCriPtion

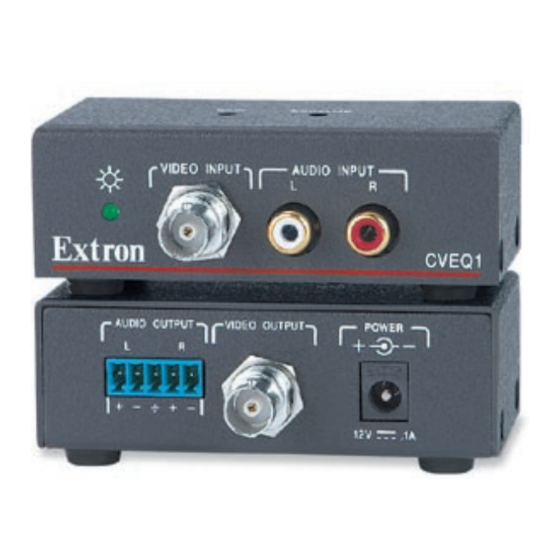

The Extron CVEQ1 Series are one input, one output, composite video and stereo audio
line drivers with variable video gain and equalization capability. The CVEQ1 is designed to
compensate for signal attenuation and high frequency loss encountered during a long cable
run. The gain adjustment compensates for signal level losses, while the peaking/equalization
adjustment compensates for high frequency loss. The CVEQ1 provides active audio buffering
with a choice of balanced or unbalanced outputs.

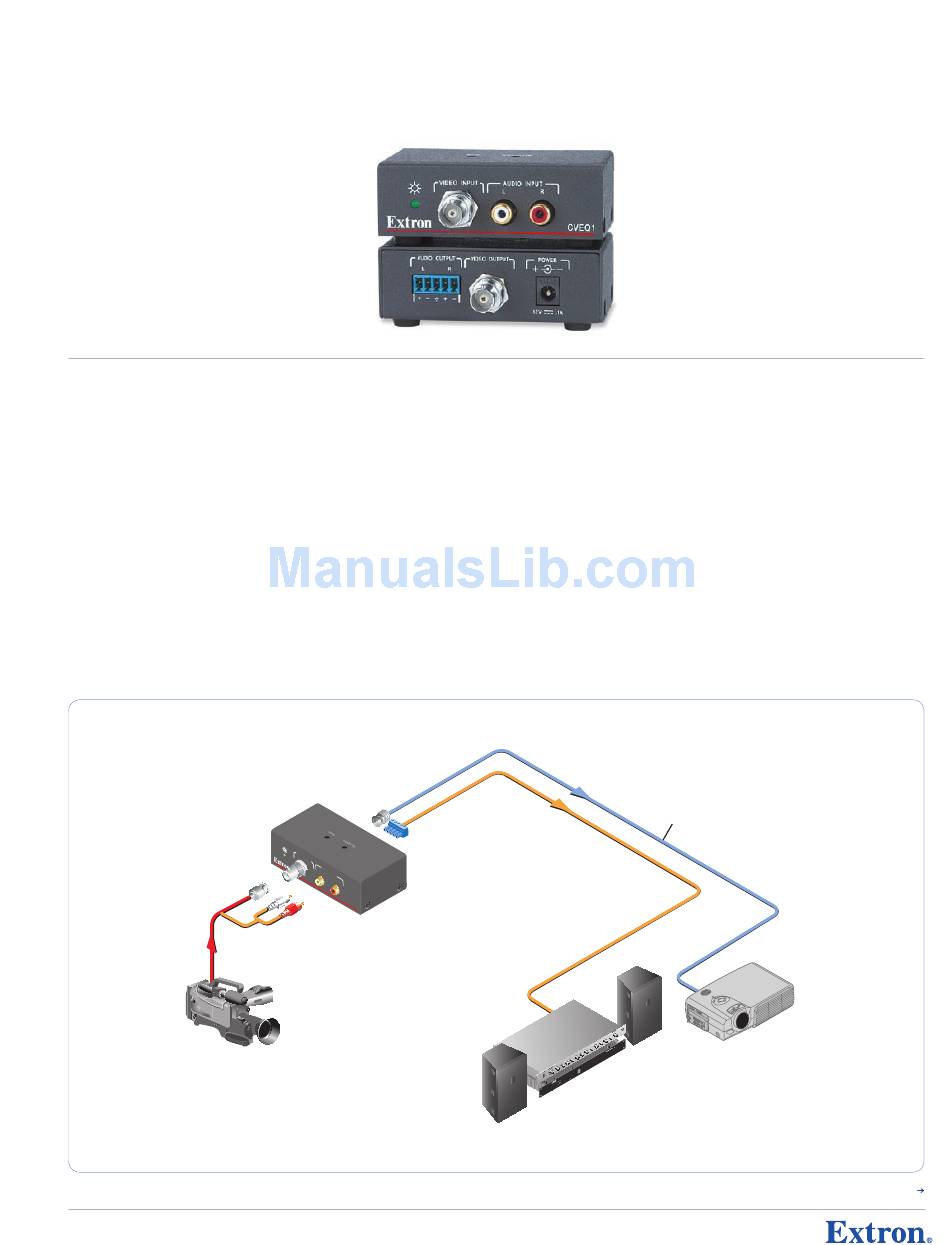

When an application involves multiple composite video signals being run a variety of distances,
individual signal adjustments are required to deliver signals of equivalent signal strength to
each display. These types of applications require a separate equalizer for each signal. The
CVEQ1 Series drives video signals through up to 1,000 feet (300 meters) of Extron RG6/SHR-1
coaxial cable.
The CVEQ1 is small and compact, so it can be placed anywhere and easily moved — features
that are especially vital for rental and staging applications such as sales meetings, tradeshow
exhibits, or large-venue presentations.
Extron
RG6 Cable
Up to 1000' / 300 m
4
A 75
AP ER
AMP LIFI
POW ER
IO
AUD
2
CH
1
CH
T
PRO TEC
CLI P
M
232 NOR NAL
RS- SIG
EL
NT PAN T
LOC FRO KOU
Sound System
Japan Japan www.extron.com www.extron.com
+81.3.3511.7655 +81.3.3511.7655 © 2006 Extron Electronics. All rights reserved. © 2006 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice. Pricing and specifications may change without notice.
+81.3.3511.7656 +81.3.3511.7656
FAX FAX
Projector
Continued
