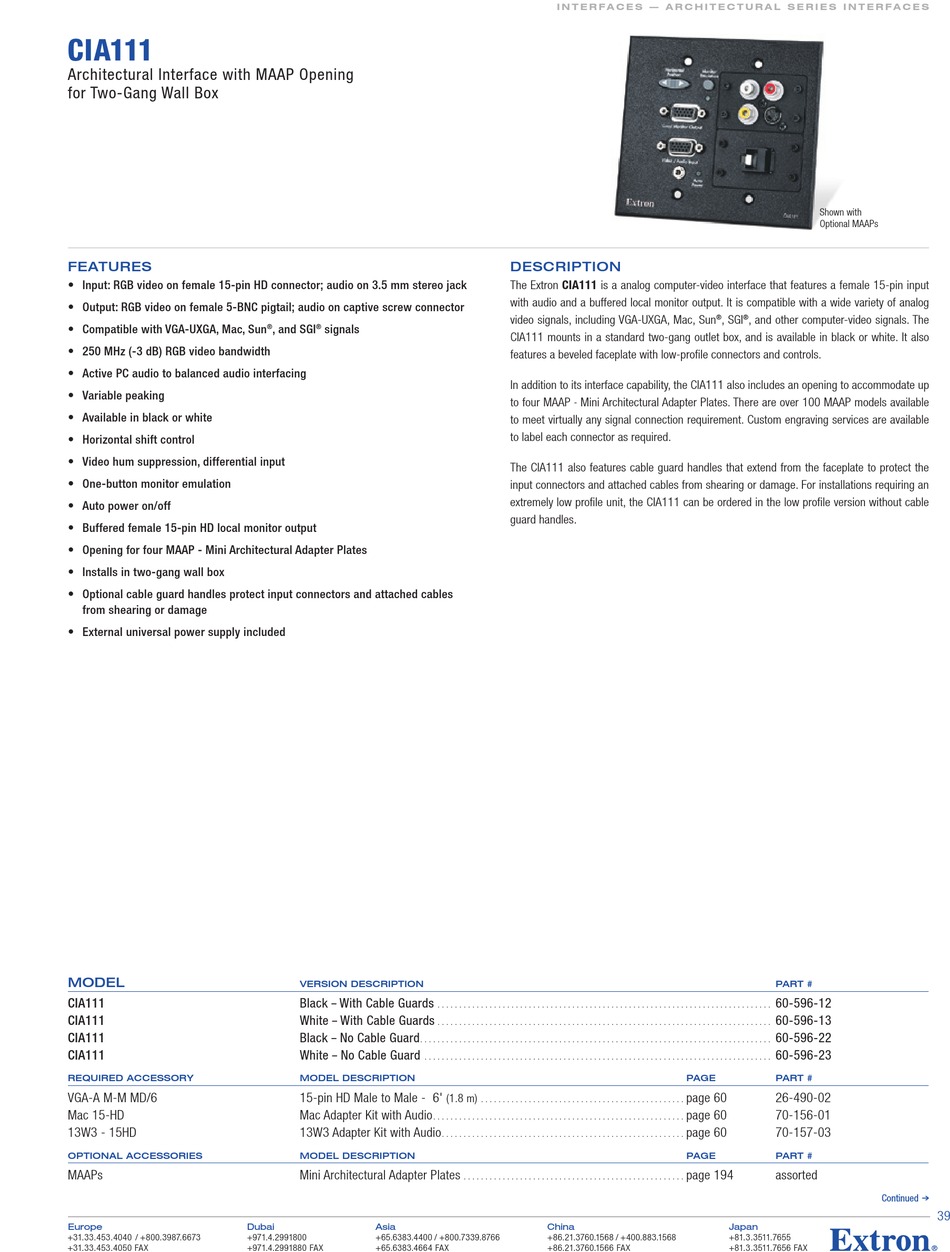

Extron electronics CIA111 Specification Sheet

CIA111
Architectural Interface with MAAP Opening
for Two-Gang Wall Box
features
• Input: RGB video on female 15-pin HD connector; audio on 3.5 mm stereo jack
• Output: RGB video on female 5-BNC pigtail; audio on captive screw connector
• Compatible with VGA-UXGA, Mac, Sun
• 250 MHz (-3 dB) RGB video bandwidth
• Active PC audio to balanced audio interfacing
• Variable peaking
• Available in black or white
• Horizontal shift control
• Video hum suppression, differential input
• One-button monitor emulation
• Auto power on/off
• Buffered female 15-pin HD local monitor output
• Opening for four MAAP - Mini Architectural Adapter Plates
• Installs in two-gang wall box
• Optional cable guard handles protect input connectors and attached cables
from shearing or damage
• External universal power supply included
model
CIA111
CIA111
CIA111
CIA111
required aCCessory
VGA-A M-M MD/6
Mac 15-HD
13W3 - 15HD
optional aCCessories
MAAPs
europe europe dubai dubai
+31.33.453.4040 / +800.3987.6673 +31.33.453.4040 / +800.3987.6673 +971.4.2991800 +971.4.2991800
+31.33.453.4050 FAX +31.33.453.4050 FAX +971.4.2991880 FAX +971.4.2991880 FAX
, and SGI signals
® ®
Version desCription
Black – With Cable Guards
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
White – With Cable Guards
.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Black – No Cable Guard
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
White – No Cable Guard
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
model desCription
15-pin HD Male to Male - 6'
(1.8 m)
Mac Adapter Kit with Audio
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13W3 Adapter Kit with Audio
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
model desCription
Mini Architectural Adapter Plates
asia asia
+65.6383.4400 / +800.7339.8766 +65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX +65.6383.4664 FAX
I n t e r f a c e s — a r c h I t e c t u r a l s e r I e s I n t e r f a c e s
desCription
The Extron CIA111 is a analog computer-video interface that features a female 15-pin input
with audio and a buffered local monitor output. It is compatible with a wide variety of analog
video signals, including VGA-UXGA, Mac, Sun
CIA111 mounts in a standard two-gang outlet box, and is available in black or white. It also
features a beveled faceplate with low-profile connectors and controls.
In addition to its interface capability, the CIA111 also includes an opening to accommodate up
to four MAAP - Mini Architectural Adapter Plates. There are over 100 MAAP models available
to meet virtually any signal connection requirement. Custom engraving services are available
to label each connector as required.
The CIA111 also features cable guard handles that extend from the faceplate to protect the
input connectors and attached cables from shearing or damage. For installations requiring an
extremely low profile unit, the CIA111 can be ordered in the low profile version without cable
guard handles.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
China China
+86.21.3760.1568 / +400.883.1568 +86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX +86.21.3760.1566 FAX
Shown with
Optional MAAPs
, SGI , and other computer-video signals. The
® ®
part #
60-596-12
60-596-13
60-596-22
60-596-23
paGe part #
page 60 26-490-02
page 60 70-156-01
page 60 70-157-03
paGe part #
page 194 assorted
Japan Japan
+81.3.3511.7655 +81.3.3511.7655
+81.3.3511.7656 FAX +81.3.3511.7656 FAX
Continued
