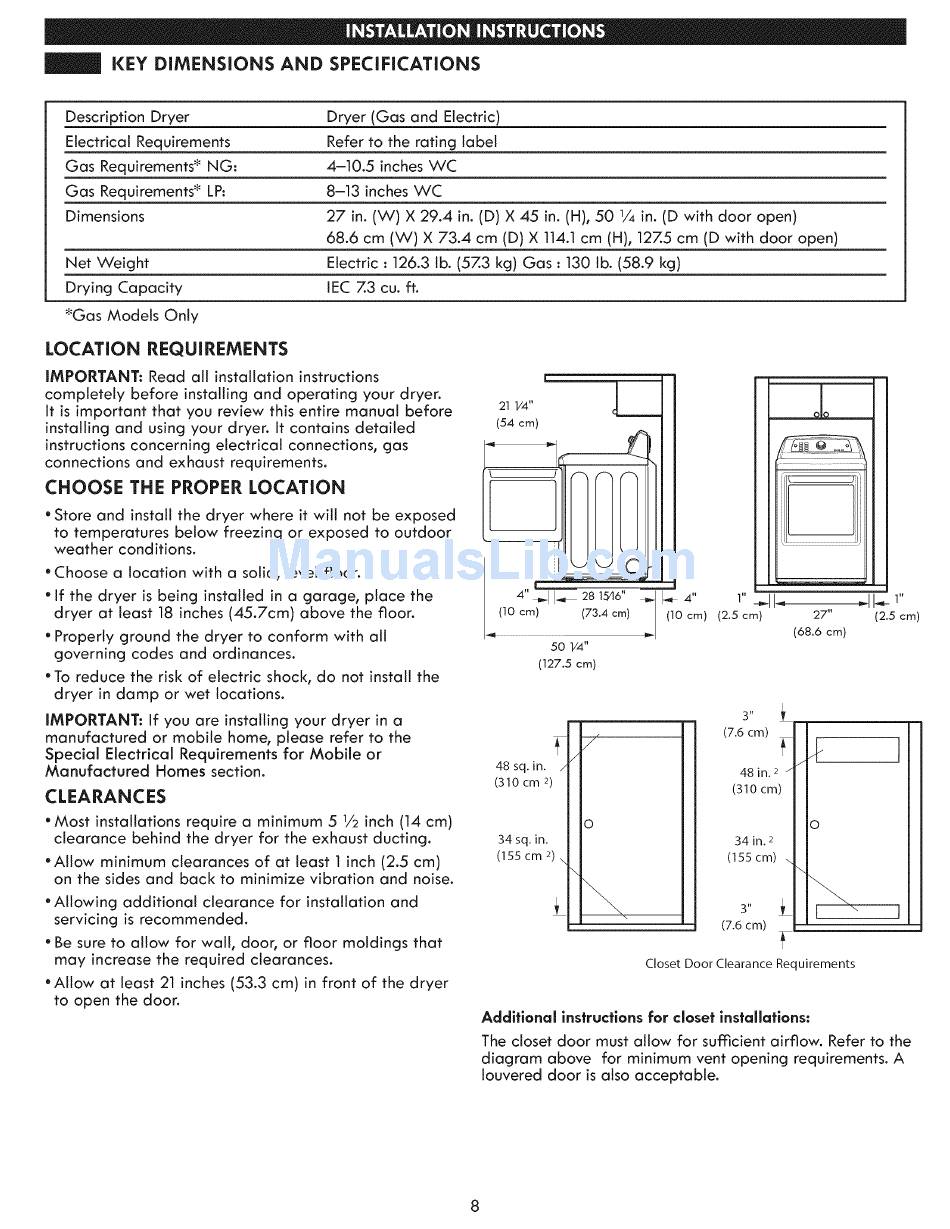

KEY DiMENSiONS
AND SPECiFiCATiONS
Description Dryer
Dryer (Gas and Electric)
Electrical Requirements
Refer to the rating label
Gas Requirements _ NG:
4-10.5
inches WC
Gas Requirements _ LP:
8-13 inches WC
Dimensions
27 in. (W) X 29.4 in. (D) X 45 in. (H), 50 1/4 in. (D with door open)
68.6 cm (W) X 73.4 cm (D) X 114.1 cm (H), 12Z5 cm (D with door open)
Net Weight
Electric : 126.3 lb. (57.3 kg) Gas : 130 lb. (58.9 kg)
Drying Capacity
IEC 7.3 cu. ft.
'*Gas Models Only
LOCATION
REQUIREMENTS
IMPORTANT:
Read att installation
instructions
completely before
installing and operating
your dryer.
It is important
that you review this entire manual
before
installing and using your dryer, it contains detailed
instructions concerning
electrical
connections,
gas
connections and exhaust requirements.
CHOOSE
THE PROPER LOCATION
* Store and install the dryer where it will not be exposed
to temperatures
below freezing
or exposed to outdoor
weather
conditions.
* Choose a location
with a solid, level floor.
*If the dryer is being installed in a garage,
place the
dryer at least 18 inches (45.7cm)
above the floor.
* Properly ground the dryer to conform
with all
governing
codes and ordinances.
* To reduce the risk of electric
shock, do not install the
dryer in damp or wet locations.
IMPORTANT:
If you are installing your dryer in a
manufactured
or mobile home, please refer to the
Special
Electrical
Requirements
for Mobile
or
Manufactured
Homes section.
CLEARANCES
* Most installations
require a minimum 5 1/2 inch (14 cm)
clearance behind the dryer for the exhaust ducting.
* Allow minimum
clearances of at least 1 inch (2.5 cm)
on the sides and back to minimize vibration
and noise.
* Allowing
additional
clearance for installation
and
servicing
is recommended.
* Be sure to allow for wall, door, or floor moldings that
may increase the required
clearances.
* Allow at least 21 inches (53.3 cm) in front of the dryer
to open the door.
27"
(68.6
era)
(2.5 cm)
48 sq. in.
/
(310 cm 2)
34 sq. in.
(155 cm 2) \
3"
(7.6 cm)
48in. 2
(310 cm)
34 in. 2
(155 cm)
3"
(7.6cm)
0
Closet Door Clearance Requirements
Additional instructions for closet installations:
The closet door must allow for sufficient airflow. Refer to the
diagram
above
for minimum vent opening requirements. A
louvered door is also acceptable.
