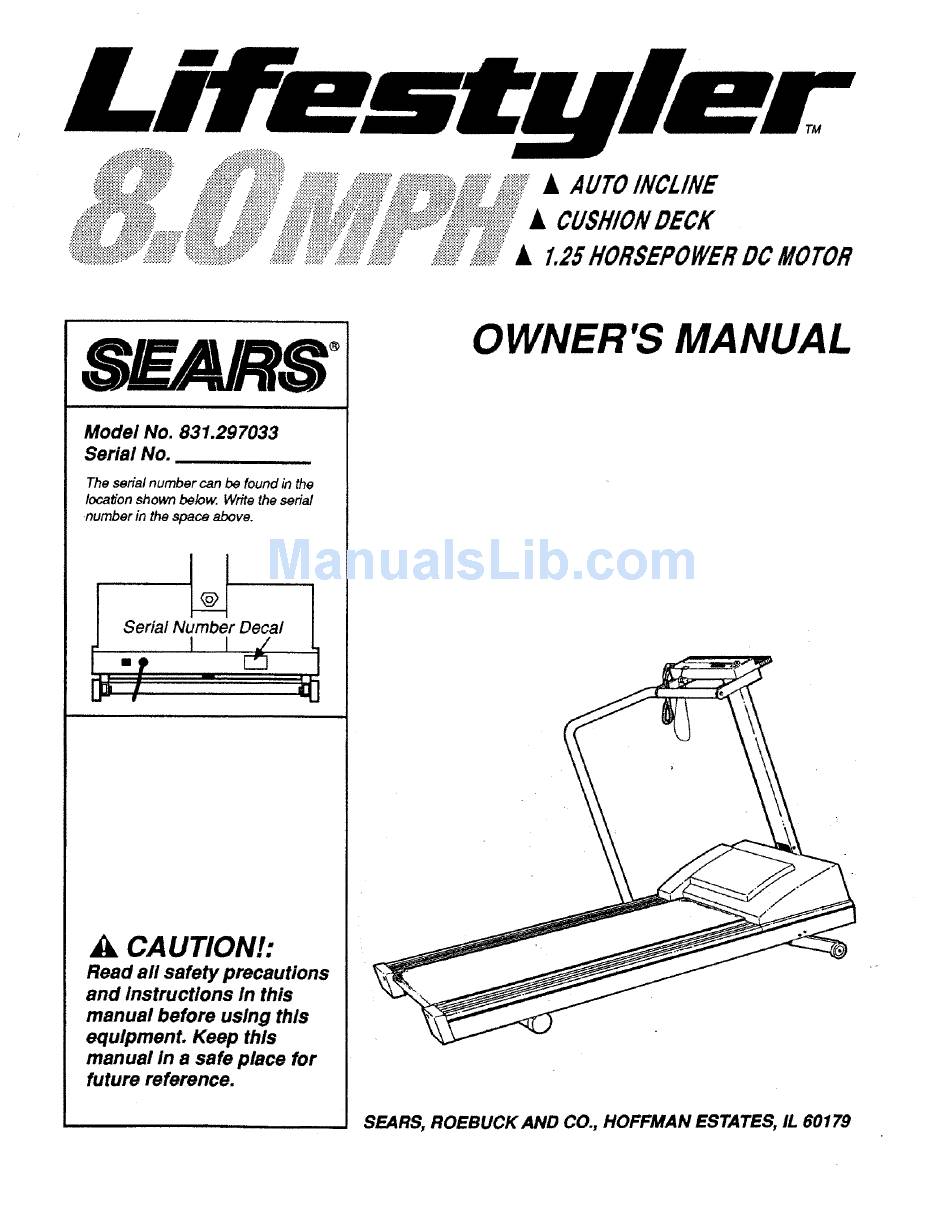

LIFESTYLER 831.297033 Owner's Manual

LIFESTYLER 831.297033 Owner's Manual

Auto incline cushion deck 1.25 horsepower dc motor
Hide thumbs
Table of Contents

Advertisement

Quick Links

TM
• AUTOINCl. I NE
• CUSHIONDECK
• 1.25HORSEPOWER DCMOTOR
SF= RS
Model No. 831.297033
Serial No.
The serial number can be found in the
Iocatbn shown below, Write the serial
number in the space above.
_
i;ial
Nulm_belr D _al
!
_ik CAUTION!:
Read all safety precautions
and Instructions
in this
manual
before using this
equipment.
Keep this
manual in a safe place for
future reference.
OWNER'S MANUAL
SEARS,
ROEBUCK
AND CO., HOFFMAN
ESTATES,
IL 60179

Advertisement

Table of Contents
loading

Related Manuals for LIFESTYLER 831.297033

Summary of Contents for LIFESTYLER 831.297033

  • Page 1 • AUTOINCl. I NE • CUSHIONDECK • 1.25HORSEPOWER DCMOTOR OWNER'S MANUAL SF= RS Model No. 831.297033 Serial No. The serial number can be found in the Iocatbn shown below, Write the serial number in the space above. i;ial Nulm_belr D _al _ik CAUTION!: Read all safety precautions and Instructions...
  • Page 2 FULL 90 DAY WARRANTY For 90 days from the date of purchase, when proper assembly and maintenance procedures detailed in the Owner's Manual are followed, SEARS will, free of charge, repair or replace and install a replacement part for any defective part, when this treadmill is used in a normal manner.

  • Page 3: Table Of Contents

    • AUTOINCLINE • CUSHIONDECK • 1.25HORSEPOWER D CMOTOR TABLE OF CONTENTS Important Safety Precautions ....... Before you Begin ......... Assembly ........Operation and Adjustment ......Trouble-Shooting and Storage ....... Conditioning Guidelines ......Part List ........Exploded Drawing ........ Ordering Replacement Parts ......

  • Page 4: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS WARNÁNG: To reduce the risk of burns, fire, electric shock or Injury to persons, read the following Important safety precautions and Information before operating the treadmill. Position the treadmill on a level surface, with at least 8 feet of clearance behind treadmill.

  • Page 5: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the SEARS _'LIFESTYLER 8.0 MPH treadmill. The 8.0 MPH combines state- of-the-art technology with innovative design to let you enjoy an excellent form of cardiovascular exercise at your convenience, in the privacy of your home.

  • Page 6: Assembly

    ASSEMBLY Set the treadmill in a cleared area and remove all packing materials. Be sure that all parts are Included before disposing of the packing materials. An adjustale wrench and standard screwdriver are needed for assembly. Insert the Lock Knob (31), with the Lock Knob Washer (30), into the Upright Post (9).
  • Page 7 PLUGGING THE POWER CORD This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding...
  • Page 8 CONSOLE OPERATION The heart of the treadmill is the innovative OPTIONS base console. The OPTIONS base console features a safety key-operated power switch, a large, easy-to-read LED display, convenient push- button speed controls and a multiple-mode exercise monitor. And the OPTIONS base console modular--up to three different...
  • Page 9 TURNING THE POWER Plug the power cord in. (See PLUGGING THE POWER CORD IN on page 7 for proper grounding instructions.) Step onto the foot rails of the treadmill. Find the clip attached by a cord to the safety key. Slide the clip onto your waistband.

  • Page 10: Trouble-Shooting And Storage

    DISTANCE/SET: T his modedisplaysthe distanceyou havetraveled.This modealsoallowsdistance goalsto be set. Toseta distancegoal,first selectthe DISTANCE/SET m ode. (Makesure the SCAN modeis not selected.) Pressthe SETbuttonsto set the distanceyou plan to travel. Eachtime one of the buttonsis pressed,the distancedisplayedwill changeby 0.2miles. The buttonscan be helddown to set a distancegoalquickly.
  • Page 11 2. SYMPTOM: THE POWER TURNS OFF DURING a. Check the circuit breaker located on the treadmill frame near the power cord. If the circuit breaker has tripped, the switch will protrude. (See the drawing above.) To reset the circuit breaker, wait for five minutes and then press the switch back in.
  • Page 12 6. SYMPTOM: THE WALKING BELT IS OFF-CENTER OR SLIPS WHEN WALKED If the walking belt has shifted to the left, first remove the safety key from the console and UNPLUG THE POWER CORD. With the allen wrench included, turn the left rear roller adjustment bolt clockwise, and the right bolt...

  • Page 13: Conditioning Guidelines

    CONDITIONING GUIDELINES The following guidelines will help you to plan your exercise program. Remember that proper nutrition and adequate rest are essential for successful results. kWARNIN G: Before beginning this or any exercise program, consult your physlclan. This Is especially Important for Individuals over the age of 35 or Individuals with pre-existing health problems.

  • Page 14: Part List

    PART LIST--Model No. 831.297033 Rev. 11/92 Part Part Qty. Description Qty. Description 105638 Side Rail 012179 U-Nut 107713 Console 104624 Shaft Bolt 014157 Star Washer 008148 Hood Anchor 054013 Clothes Clip 015071 Plastic Clip 101508 Pulse Earclip 111387 Speed Encoder Assembly 106337 Safety...

  • Page 15: Exploded Drawing

    EXPLODED DRAWING--Model No. 831.297033 Rev. 11/92 © 1992 Sears, Roebuck and Co. _/64...

  • Page 16: Ordering Replacement Parts

    INFORMATION: 1. The MODEL NUMBER of the product (831.297033). 2. The NAME of the product (SEARS _ LIFESTYLER 8.0 MPH treadmill). 3. The PART NUMBER of the part(s), from page 14 of this manual. 4. The DESCRIPTION of the part(s), from page 14 of this manual.
