Chapter 5 - Upgrading the System
PCI Boards
PCI boards do not require manual system configuration when installing the
board. The system BIOS detects the board's presence during startup and
reads information from the board's configuration registers to assign the
necessary system resources.
To install PCI option boards:
1.
Using a quarter-inch nutdriver, remove the blanking plate from an

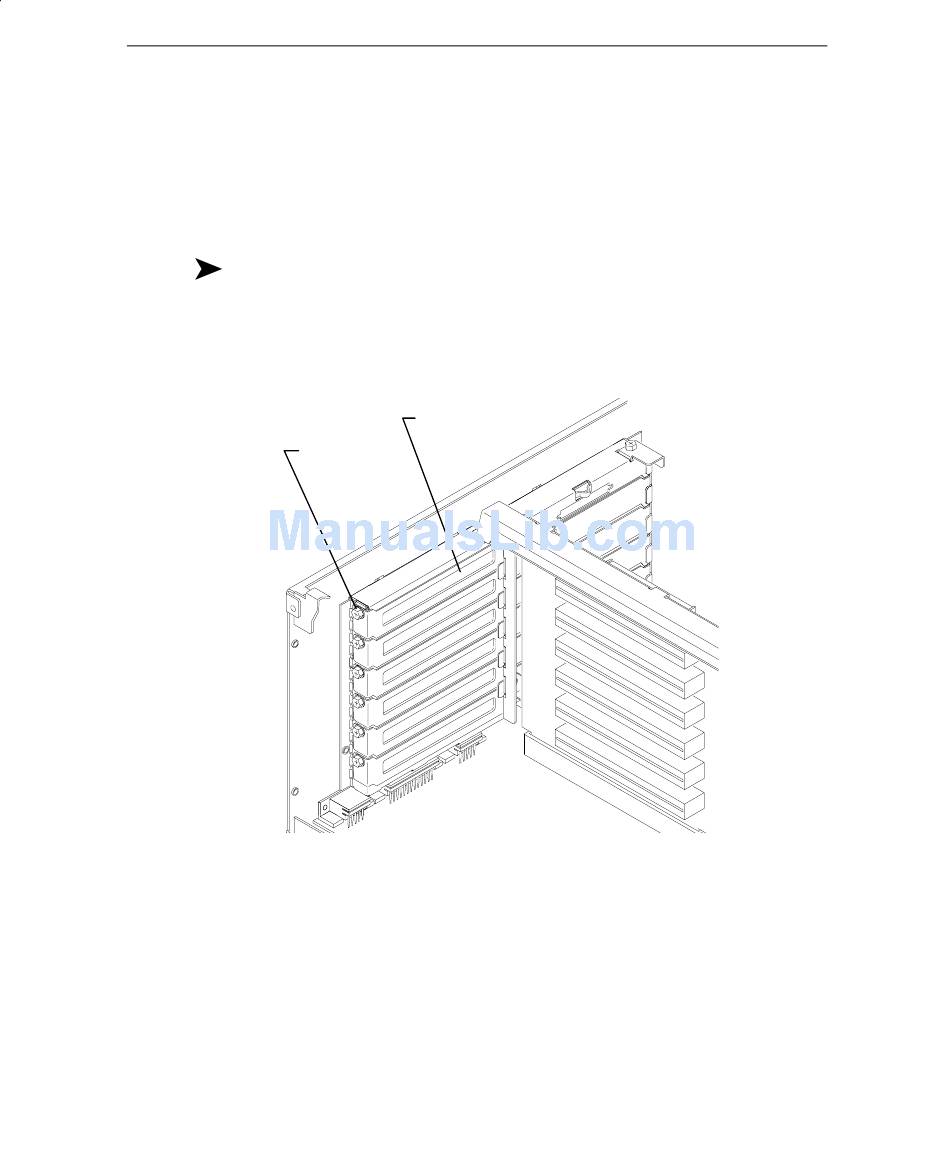

available PCI slot. Refer to the following figure.
Screw
2.
Install the PCI board. Press firmly to ensure the board seats
completely into the riser card slot.
3.
Mount the board to the chassis using the screw removed previously.
4.
Close the base unit.
Blanking
Plate
