CABINET PARTS
REFRIGERATOR
For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00
(White)
(Almond)
(Black)
(Biscuit)
Part No. 4398077
04−07 Printed In U.S.A. (mdg)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSRS25FGAL00 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSRS25FGAL00

Summary of Contents for KitchenAid KSRS25FGAL00

  • Page 1 CABINET PARTS REFRIGERATOR For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00 (White) (Almond) (Black) (Biscuit) Part No. 4398077 04−07 Printed In U.S.A. (mdg)

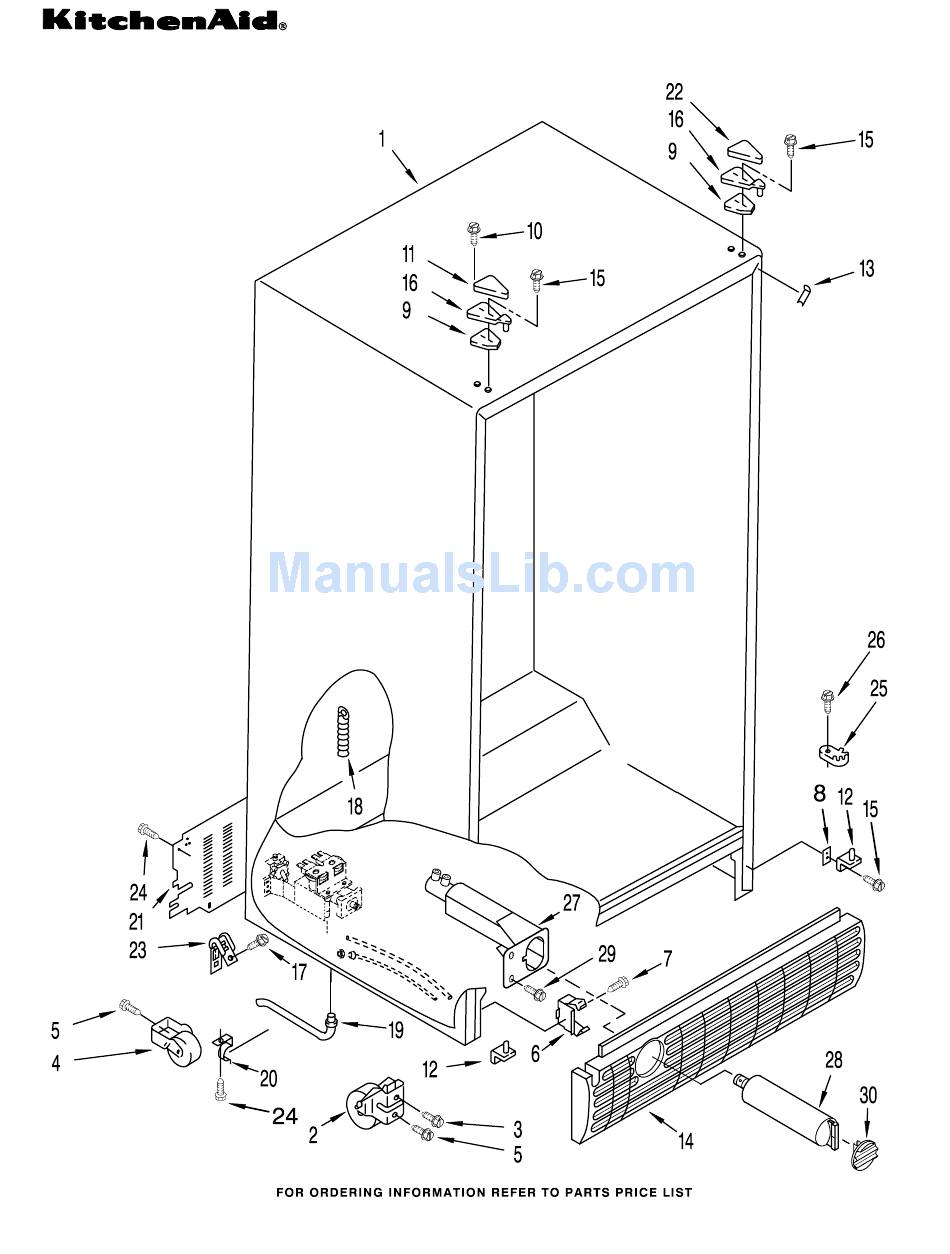

  • Page 2: Cabinet Parts

    CABINET PARTS For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00 (White) (Almond) (Black) (Biscuit) Illus. Part DESCRIPTION Cabinet (Not A Serviceable Part) 2174748 Front Roller (2) 489456 Screw 981122 Roller (Rear) (2) 489427 Screw 2155013 Clip, Grille 489478 Screw 2156056 Shim 2196048 Shim, Hinge Top 489284 Screw Hinge Cover 1129262 White...

  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00 (White) (Almond) (Black) (Biscuit) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2182147 Louver 2171846 Release Valve 2172943 Stud (2) 1110718 Stud (10) 2181796 Ladder, Shelf (2) 486298 Screw (2) 487539 Screw...

  • Page 4: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00 (White) (Almond) (Black) (Biscuit) Illus. Part DESCRIPTION 2195978 Shelf Assembly, Cantilever (3) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2161491 Cover, Meat Pan (Includes Items 13, 14 & 15) 2198446 Snack Pan 2179243 Trim, Handle 2189526 Glass, Cover...

  • Page 5: Freezer Liner Parts

    FREEZER LINER PARTS For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00 (White) (Almond) (Black) (Biscuit) F O R O R D E R I N G I N F O R M A T I O N R E F E R T O P A R T S P R I C E L I S T 4398077...
  • Page 6 FREEZER LINER PARTS For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00 (White) (Almond) (Black) (Biscuit) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2174493 Shelf, Top Compartment 2171713 Door, Ice Compartment 940014 Hole Plug 946356 Stud, R.S. Front 842534 Clip, Air Duct (2) 1115317 Support, Stud (4) 946355 Support, Stud (2) 2176134 Grommet (2)

  • Page 7: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00 (White) (Almond) (Black) (Biscuit) F O R O R D E R I N G I N F O R M A T I O N R E F E R T O P A R T S P R I C E L I S T 4398077...
  • Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00 (White) (Almond) (Black) (Biscuit) Illus. Part DESCRIPTION 2183726 Bracket, Motor 2155263 Motor, Dispenser 2152713 Soleniod Assembly 2149100 Guide, Solenoid 2169490 Wiring Assembly, Ice Dispenser 489399 Screw 983663 Coupling, Motor 489478 Screw 2162085 Socket, Light 2196091 Ice Container...

  • Page 9: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00 (White) (Almond) (Black) (Biscuit) F O R O R D E R I N G I N F O R M A T I O N R E F E R T O P A R T S P R I C E L I S T 4398077...
  • Page 10 REFRIGERATOR DOOR PARTS For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00 (White) (Almond) (Black) (Biscuit) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2194233W White 2194233N Almond 2194233B Black 2194233T Biscuit 2195497 Load, Lock 2182399 Door, Compartment 2193409 Holder, Beverage 2165792 Butter Dish Insert, Handle 2173825 White 2173828 Almond...

  • Page 11: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00 (White) (Almond) (Black) (Biscuit) F O R O R D E R I N G I N F O R M A T I O N R E F E R T O P A R T S P R I C E L I S T 4398077...
  • Page 12 FREEZER DOOR PARTS For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00 (White) (Almond) (Black) (Biscuit) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2186519W White 2186519N Almond 2186519B Black 2186519T Biscuit Retainer, Insert 2194777W White 2194777N Almond 2194777B Black 2194777T Biscuit End Cap (2) 2194778W White...

  • Page 13: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00 (White) (Almond) (Black) (Biscuit) F O R O R D E R I N G I N F O R M A T I O N R E F E R T O P A R T S P R I C E L I S T 4398077...
  • Page 14 DISPENSER FRONT PARTS For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00 (White) (Almond) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Lever, Ice 2180236 Switch Assembly Housing, Dispenser Dispenser (Also Order (Not Serviced) 2180259 White (White Item #19) 489101 Screw Shadow Pad) Overlay, Front 2194719 Retainer, Levers...

  • Page 15: Air Flow Parts

    AIR FLOW PARTS For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00 (White) (Almond) (Black) (Biscuit) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2161231 Air Scoop 2196122 Air Duct Freezer 2162404 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 2182146 Duct, Icemaker 2161478 Harness, Fan Evaporator, And...

  • Page 16: Control Parts

    CONTROL PARTS For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00 (White) (Almond) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2200134 Control Box 2200109 Control Box 2172940 Window 2182150 Tube Barrier, 2172906 Grommet, Light Bar Harness Thermostat (RC) 2200097 Retainer, 2161466 Slide, Thermostat 489214 Screw (3) Light Lens...

  • Page 17: Unit Parts

    UNIT PARTS For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00 (White) (Almond) (Black) (Biscuit) F O R O R D E R I N G I N F O R M A T I O N R E F E R T O P A R T S P R I C E L I S T 4398077...
  • Page 18 UNIT PARTS For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00 (White) (Almond) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 486692 Speed Nut 488687 Screw 1108179 Fan, Blade 2157396 Unit Mounting Following Parts Not Illustrated 2198175 Condenser Frame and Optional Parts Not Included Assembly 2194749 Unit, Harness 489464 Screw...

  • Page 19: Icemaker Parts

    ICEMAKER PARTS For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00 (White) (Almond) (Black) (Biscuit) F O R O R D E R I N G I N F O R M A T I O N R E F E R T O P A R T S P R I C E L I S T 4398077...
  • Page 20 ICEMAKER PARTS For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00 (White) (Almond) (Black) (Biscuit) Illus. Part DESCRIPTION 489084 Screw 2196035 Fitting, Water Tube 2186493 Tube, Filter Outlet 2186492 Tube, Filter Inlet 628379 Clip, Fuse 2200083 Nut, Compression 2181940 Tube, Water 1106508 Seal, Gasket 489478 Screw 2186486 Valve, Solenoid 627018 Nut, Compression...
  • Page 21 PARTS NOT ILLUSTRATED For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00 (White) (Almond) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous LITERATURE PARTS Parts Not Illustrated and Optional Parts (Not Included) LIT2200139 Use & Care Guide 212643 Sealer, Gum LIT2200278 Service &...
