Summary of Contents for KitchenAid KSRS25FTBL03
- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) 04−08 Printed In U.S.A. (jdc)(bay) Part No. W10203951 Rev.A...
-

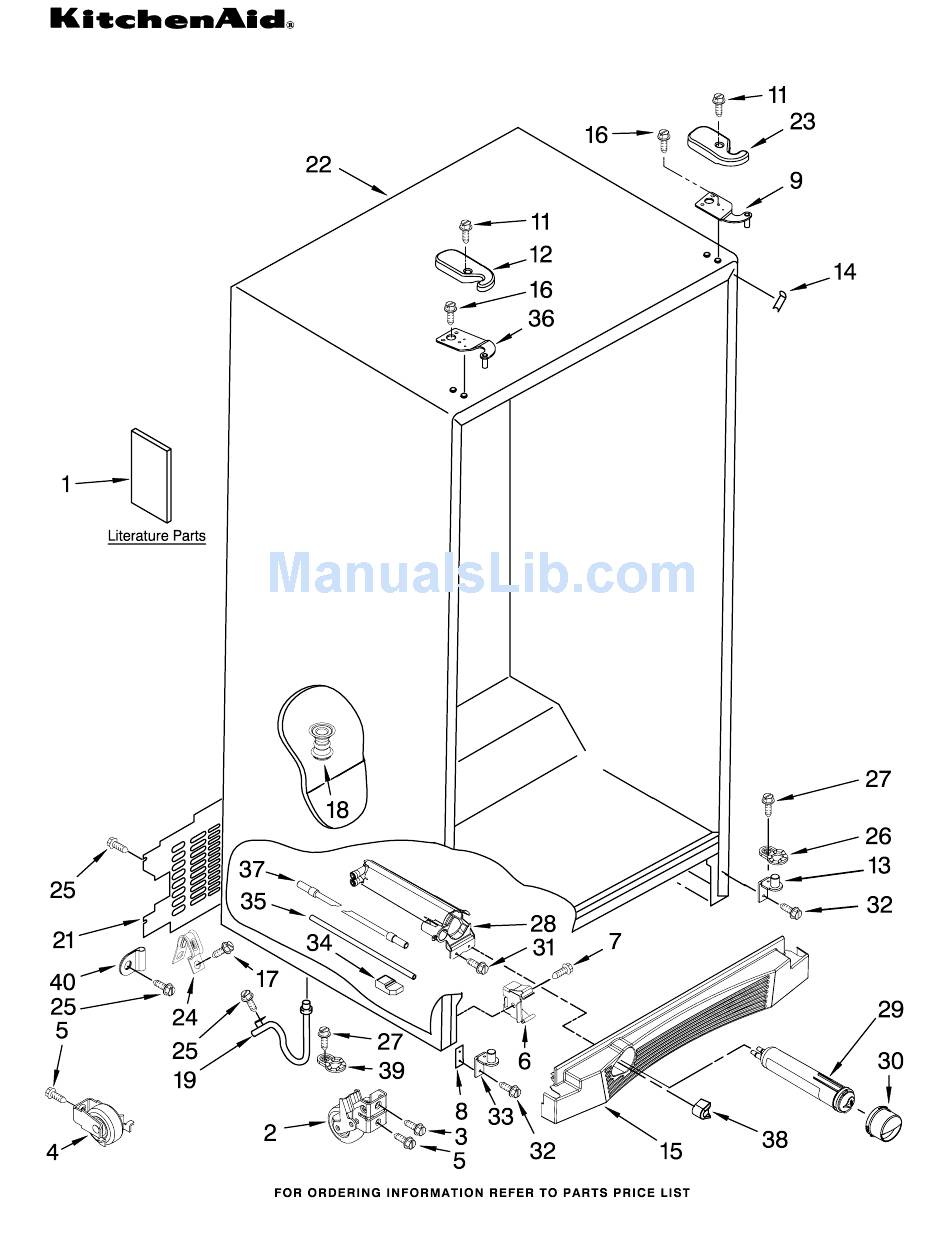

Page 2: Cabinet Parts
CABINET PARTS For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2155311 Door Closer, RC Literature Parts Filler, Wrapper 489483 Screw W10194344 Energy Guide 2304846 White 2260507 Housing, Water Filter W10162438 Owner’s Manual 2304848 Black... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2 W10175967 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2257741 Louver 2301235 Slide, Door Control 2179375 Wine Rack 2319866 Shelf Ladder... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) Illus. Part DESCRIPTION 2301072 Frame Assembly (2) 2301023 Snack Bin Asm (Includes 24 & 25) 2301567 Cover, Crisper (Includes 11, 12, 16, 17, 19 & 20) 2196485 Stud Assembly 3400894 Screw 2301028 Glass, Meat Cover... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) W10203951... - Page 6 FREEZER LINER PARTS For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2301139 Basket, Tall 3400893 Screw 2301134K Front, Basket 2205837K Shelf (2) 2301140 Basket, Sloped 8534064 Screw (12) 842534 Clip, Air Duct 2301138 Basket, Top 2198587 Cover, Emitter...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) W10203951... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) Illus. Part DESCRIPTION 1 W10139383 Ice Bin 2 W10140686 Crusher Bin 3 W10140642 Auger 2258220 Washer 1119007 Spacer, Flat (4) 6 W10139321 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) W10203951... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) Illus. Part DESCRIPTION Refrigerator Door (Includes Item #6) 2313299W White 2313299B Black 2301089S Stainless Steel 2313299T Biscuit 2301089SAP Monochromatic Stainless 2301486 Door Compartment (Includes #14) 2223434K Door Bin (4) 3400012 Screw...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) W10203951... - Page 12 FREEZER DOOR PARTS For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) W10149582 White W10149583 Black W10149587 Stainless Steel W10149584 Biscuit W10149635 Monochromatic Stainless Handle 2319727W White 2319727B Black...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) W10203951... - Page 14 DISPENSER FRONT PARTS For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2305202 Bracket, Motor 2305242 Connector, Door Bracket 2305262 Motor, Ice Door 2305258 Door, Ice 2305204 Support, Ice Door 4449745 Screw (4) 2305447 Clip, Wiring 2305236 Spigot...
-
Page 15: Air Flow Parts
AIR FLOW PARTS For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer Fan Motor 2313359 Air Duct, Upper 2198580 Air Duct Freezer 2321799 Bi−metal, Defrost 2315549 Fan Motor 2169142 Fan Blade 2188819 Thermister 2176759 Fan Grommet (2) -
Page 16: Control Parts
CONTROL PARTS For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 W10134300 Control Box 8281244 Screw (4) 2162085 Light Socket 2219875 Switch 940014 Hole Plug 2255743 Light Bulb 3196537 Screw (4) 1115374 Clip, Wiring... -
Page 17: Unit Parts
UNIT PARTS For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) W10203951... - Page 18 UNIT PARTS For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2225834 Fan, Blade 20 W10120456 Compressor 2 W10121484 Condenser Assembly (Includes Items Following Parts Not Illustrated 489464 Screw 10, 11, 19, 22, &...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) W10203951... - Page 20 ICEMAKER PARTS For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) Illus. Part DESCRIPTION 2303216 Fitting and Water Tube 628379 Clip, Fuse 489478 Screw (3) 4 W10159839 Smart Valve 2174358 Cover 488649 Screw 7 W10122527 Mold & Heater Assembly (Also Order 542638 Silicone Grease)
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSRS25FTWH03, KSRS25FTBL03, KSRS25FTSS03, KSRS25FTBT03, KSRS25FTMS03 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, TOUCH−UP (1/2oz.) ACCESSORIES PAINT, BULK (1 qt.) 350942 Primer, White 350939 Black 2217192 Cleaner, Stainless 799340 Black 350930 White...
