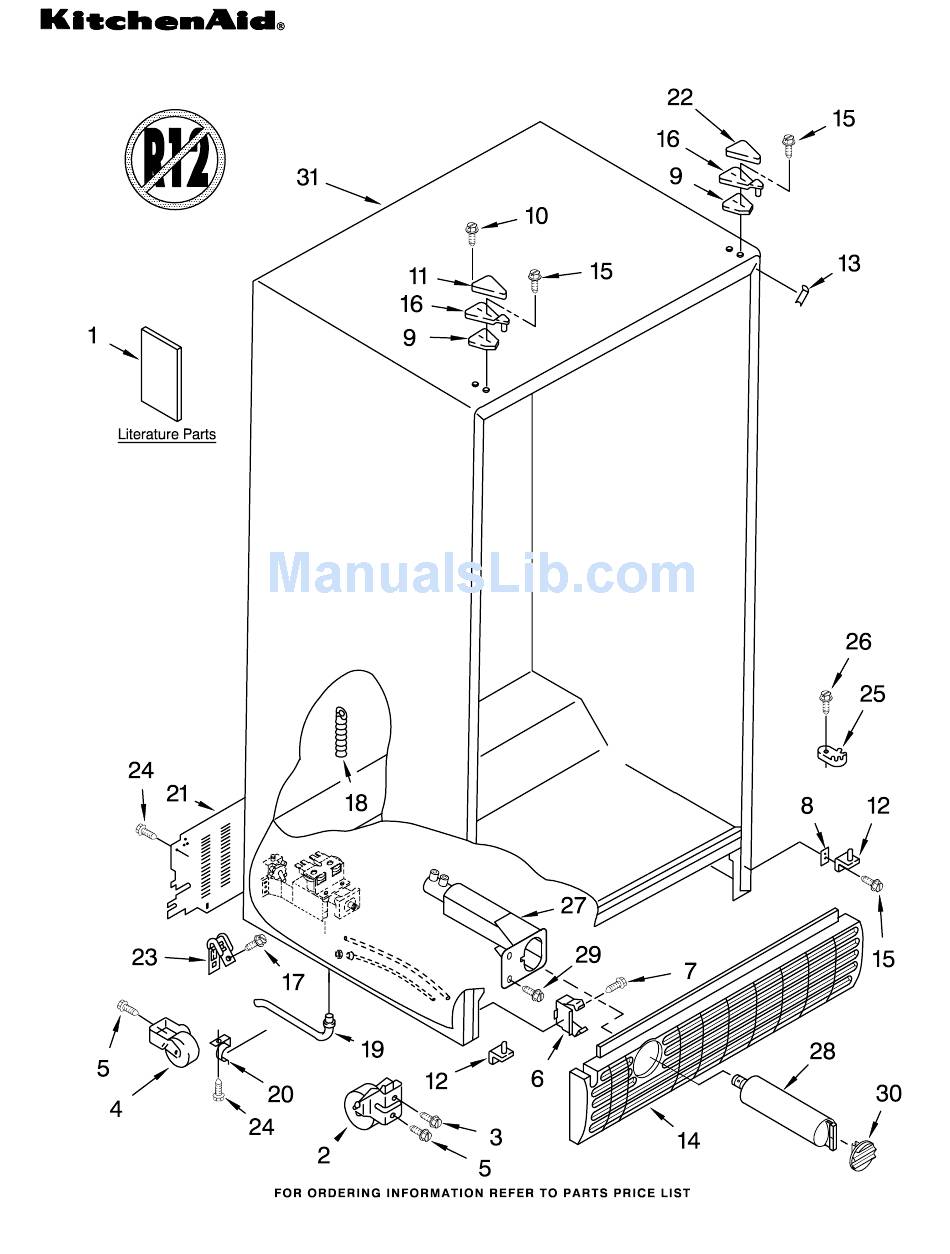

CABINET PARTS
REFRIGERATOR
For Model: KSRS25FGSS13
(Stainless Steel)
4−00 Printed In U.S.A. (dmz)
Part No. 4398702
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSRS25FGSS13 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KitchenAid KSRS25FGSS13

Summary of Contents for KitchenAid KSRS25FGSS13

  • Page 1 CABINET PARTS REFRIGERATOR For Model: KSRS25FGSS13 (Stainless Steel) 4−00 Printed In U.S.A. (dmz) Part No. 4398702...

  • Page 2: Cabinet Parts

    CABINET PARTS For Model: KSRS25FGSS13 (Stainless Steel) Illus. Part DESCRIPTION LITERATURE PARTS 1 LIT2206106 Use & Care Guide LIT2200278 Service & Wiring Sheet LIT2206420 Energy Guide LIT628370 Modular Icemaker Service Sheet 2174748 Front Roller (2) 3400517 Screw 2196236 Roller (Rear) (2)

  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS 4398702 For Model: KSRS25FGSS13 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2182147 Louver 2171846 Release Valve 2196485 Stud Assembly 3400894 Screw 2196483 Stud Assembly...

  • Page 4: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: KSRS25FGSS13 (Stainless Steel) Illus. Part DESCRIPTION 2195978 Shelf Assembly, Cantilever (2) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2161491 Cover, Meat Pan (Includes Items 13, 14 & 15) 2209677 Snack Pan 2179243 Trim, Handle...

  • Page 5: Freezer Liner Parts

    FREEZER LINER PARTS For Model: KSRS25FGSS13 (Stainless Steel) 4398702...
  • Page 6 FREEZER LINER PARTS For Model: KSRS25FGSS13 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2174493 Shelf, Top Compartment 2171713 Door, Ice Compartment 940014 Hole Plug 2196207 Stud, Rear 842534 Clip, Air Duct (2) 2196206 Support, Stud 2196483 Stud Assembly...

  • Page 7: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Model: KSRS25FGSS13 (Stainless Steel) 4398702...
  • Page 8 MOTOR AND ICE CONTAINER PARTS For Model: KSRS25FGSS13 (Stainless Steel) Illus. Part 2183726 Bracket, Motor 2188385 Motor, Dispenser 2152713 Soleniod Assembly 2149100 Guide, Solenoid 2186815 Wiring Assembly, 489399 Screw 2205716 Coupling, Motor 489478 Screw 2162085 Socket, Light 2196091 Ice Container...

  • Page 9: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KSRS25FGSS13 (Stainless Steel) 4398702...
  • Page 10 REFRIGERATOR DOOR PARTS For Model: KSRS25FGSS13 (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2203453 Stainless Steel 2195497 Load, Lock 2182399 Door, Compartment 2193409 Holder, Beverage 2165792 Butter Dish Door Gasket, Magnetic (Service) 2159083 Black 2204454 Handle (Includes item 20)

  • Page 11: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KSRS25FGSS13 (Stainless Steel) 4398702...
  • Page 12 FREEZER DOOR PARTS For Model: KSRS25FGSS13 (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2205912 Stainless Steel Handle 2204454 Stainless Steel (Includes item 20) 489463 Screw 3400012 Screw 2171070 Shelf Bin (4) Door Gasket, Magnetic (Service)

  • Page 13: Dispenser Front Parts

    DISPENSER FRONT PARTS For Model: KSRS25FGSS13 (Stainless Steel) 4398702...
  • Page 14 DISPENSER FRONT PARTS For Model: KSRS25FGSS13 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 489101 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180352 Door, Ice 2180208 Door Mechanism Assembly 2180223 Mechanism Delay Grille, Overflow 2180325 Black 2180225 Water Fitting...

  • Page 15: Air Flow Parts

    2182146 Duct, Icemaker 2186800 Harness, Fan Evaporator, And Heater, Bi−Metal 2155789 Gasket Cover 2172840 Wire Tie 2203876 Gasket 2203841 Cover, Evaporator 489355 Screw 489478 Screw 2203595 Support, R.S 2203596 Support, L.S 4398702 AIR FLOW PARTS For Model: KSRS25FGSS13 (Stainless Steel)

  • Page 16: Control Parts

    2161461 Thermostat (FC) 2188159 Adaptive Defrost Control 489398 Screw (2) 2196003 Tube Barrier, Thermostat (FC) 2161460 Thermostat (R.C.) CONTROL PARTS For Model: KSRS25FGSS13 (Stainless Steel) Illus. Part DESCRIPTION 2172940 Window 2172906 Grommet, Light Bar 2161466 Slide, Thermostat 489084 Screw (2)

  • Page 17: Unit Parts

    UNIT PARTS For Model: KSRS25FGSS13 (Stainless Steel) 4398702...
  • Page 18 Compressor Only Capacitor 2169137 (Production) 4387764 (Service) 509812 Screw Grommet 489478 Screw 2209611 Evaporator 2161324 Clamp 2176336 Fan, Motor UNIT PARTS For Model: KSRS25FGSS13 (Stainless Steel) Illus. Part DESCRIPTION 1110674 Tray, Evaporator 2149294 Heat Shield 2199167 Drier 2183455 Compressor (Includes Items 12, 13, 15, 17, 27 &...

  • Page 19: Icemaker Parts

    ICEMAKER PARTS For Model: KSRS25FGSS13 (Stainless Steel) 4398702...
  • Page 20 ICEMAKER PARTS For Model: KSRS25FGSS13 (Stainless Steel) Illus. Part DESCRIPTION 489084 Screw 2196157 Fitting, Water Tube 2186493 Tube, Filter Outlet 2186492 Tube, Filter Inlet 628379 Clip, Fuse 2200083 Nut, Compression 2181940 Tube, Water 489478 Screw 2205762 Valve, Solenoid 627018 Nut, Compression...
  • Page 21 Refinishing Material 799340 Enamel, Black 799344 Enamel, White 978883 Enamel, Almond 4392900 Enamel, Biscuit 4398702 For Model: KSRS25FGSS13 (Stainless Steel) Illus. Part DESCRIPTION Miscellaneous 212643 Sealer, Gum 479502 Tape, Vinyl 876370 Kit, Insulation (13 Oz.
