Air Flow Parts - KitchenAid KSRS25FGAL00 Parts List

For Models: KSRS25FGWH00, KSRS25FGAL00, KSRS25FGBL00, KSRS25FGBT00
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer,
Fan Motor
3 2161231 Air Scoop
5 2196122 Air Duct Freezer
7 2162404 Fan Motor
8 2169142 Fan Blade
10 2176759 Fan Grommet (2)
11 2182146 Duct, Icemaker
12 2161478 Harness, Fan
Evaporator, And
Heater, Bi−Metal
13 2155789 Gasket Cover
14 2172840 Wire Tie
16 2155782 Gasket
17 2196144 Cover, Evaporator
18 489355 Screw
21 489478 Screw
22 2161484 Support, R.S
23 2155766 Support, L.S
4398077

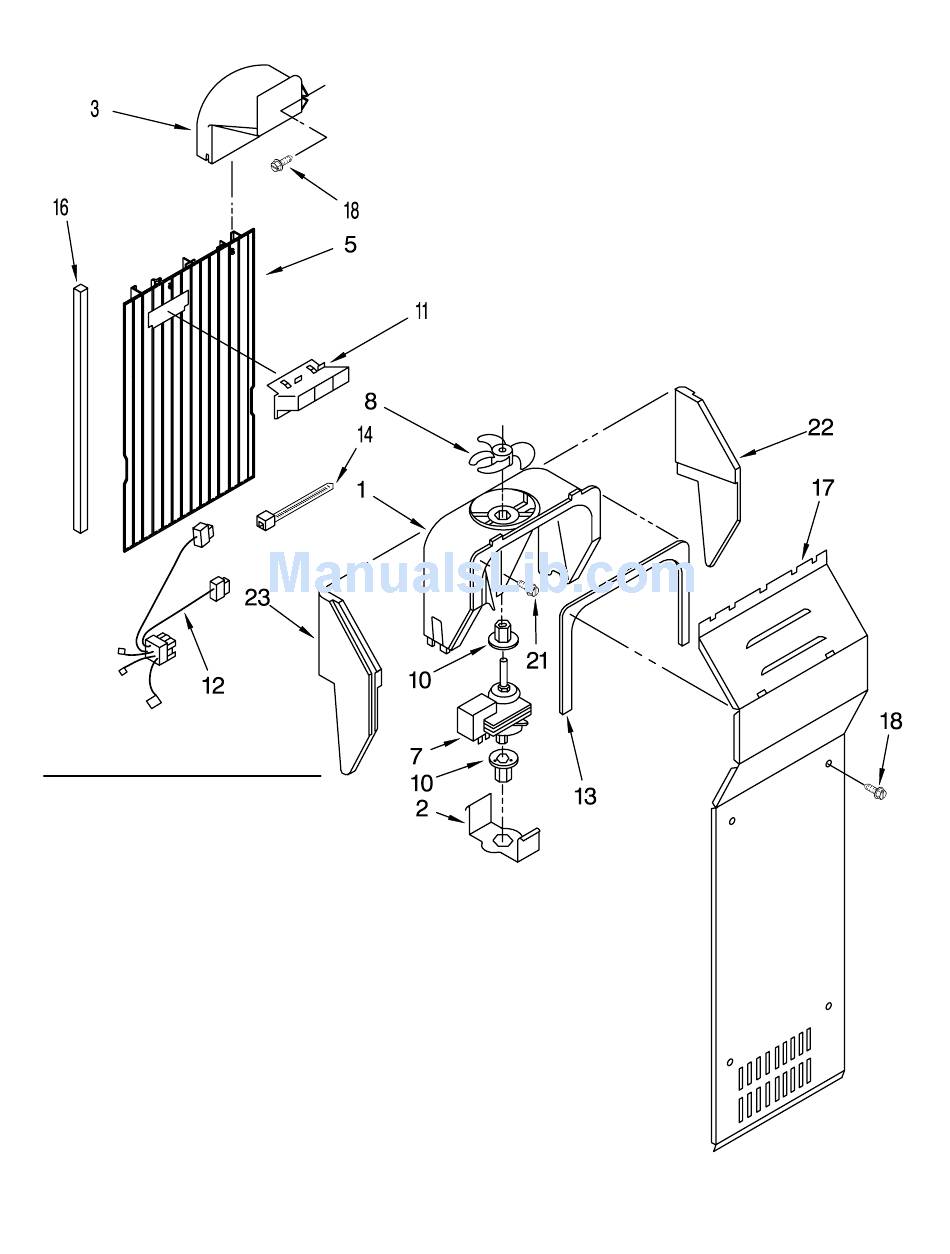

AIR FLOW PARTS

(White) (Almond)
F O R O R D E R I N G I N F O R M A T I O N R E F E R T O P A R T S P R I C E L I S T
(Black)
15
(Biscuit)
