- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) 5−96 Printed In U.S.A. (RCG) Part No. 4394425...
-
Page 2: Cabinet Parts

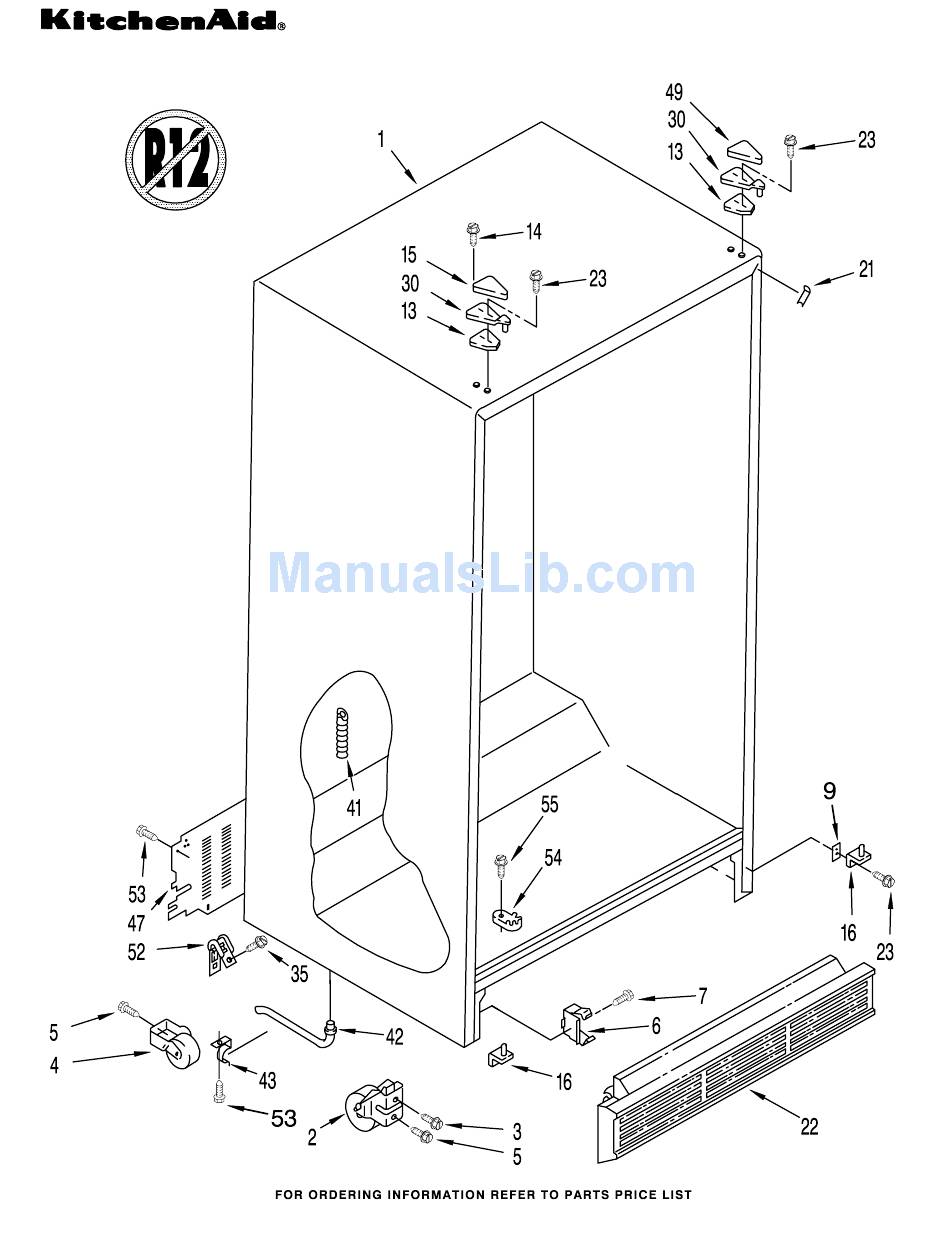

CABINET PARTS For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) Illus. Part DESCRIPTION Cabinet (Not A Serviceable Part) 2174748 Front Roller (2) 489456 Screw 981122 Roller (Rear) (2) 489427 Screw 2155013 Clip, Grille 489478 Screw 2156056 Shim 2171868 Shim, Hinge Top 489284 Screw Hinge Cover 1129262 White 2150343 Almond... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2182761 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 1127161 Louver 2171846 Release Valve 2172943 Stud (2) 1110718 Stud (10) 2181796 Ladder, Shelf (2) 2168740 Bracket 486298 Screw (2) 487539 Screw... -
Page 4: Control Parts
CONTROL PARTS For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2161459 Control Box 2161460 Thermostat (R.C.) 946059 Light Bulb 2172948 Tube Barrier, 2172940 Window 2182130 Control Box Thermostat 2172906 Grommet, Light Bar Harness 489214 Screw (3) 2161466 Slide, Thermostat 1115375 Clip, Wiring... -
Page 5: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) 4394425... - Page 6 REFRIGERATOR SHELF PARTS For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) Illus. Part DESCRIPTION 2174023 Shelf Assembly, Cantilever (2) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2161491 Cover, Meat Pan (Includes Items 13, 14 & 15) 2189526 Glass, Cover 2174250 Cover, Crisper (Includes 2, 3, 4, 11, 12,...
-
Page 7: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) 4394425... - Page 8 FREEZER LINER PARTS For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2174493 Shelf, Top Compartment 2171713 Door, Ice Compartment 940014 Hole Plug 946356 Stud, R.S. Front 842534 Clip, Air Duct (2) 1115317 Support, Stud (4) 946355 Support, Stud (2) 2176134 Grommet (2) Slide, Container...
-
Page 9: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) 4394425... - Page 10 MOTOR AND ICE CONTAINER PARTS For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) Illus. Part DESCRIPTION 1118386 Bracket, Motor 2155263 Motor, Dispenser 2152713 Soleniod Assembly 2149100 Guide, Solenoid 1115374 Clip, Wiring 2169490 Wiring Assembly, Ice Dispenser 489399 Screw 983663 Coupling, Motor 489478 Screw 2162085 Socket, Light 1115339 Cover, Motor 2182100 Ice Container...
-
Page 11: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) 4394425... - Page 12 REFRIGERATOR DOOR PARTS For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2189684 White 2189685 Almond 2171283 Load, Lock (4) 2171078 Door, Compartment 2193409 Holder, Beverage 2165792 Butter Dish Insert, Handle 2173825 White 2173828 Almond 2159075 Door Gasket, Magnetic (Service) 2173826 End Cap, Handle 489075 Screw...
-
Page 13: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) 4394425... - Page 14 FREEZER DOOR PARTS For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2194004 White 2194005 Almond 2192774 Retainer, Insert 2173826 End Cap (2) 489463 Screw 489075 Screw 2171070 Shelf Bin (4) 2159074 Door Gasket, Magnetic (Service) Insert, Handle 2173825 White...
-
Page 15: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) 4394425... - Page 16 DISPENSER FRONT PARTS For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 983696 Spring, Lever (2) 2162361 Switch (4) Housing, Dispenser 2147165 Shield, Wiring 2147164 Insulator, Control (Not A Bracket 488500 Screw Servicable Item) 2147163 Bracket, Control 625834 Spacer 488687 Screw...
-
Page 17: Unit Parts
UNIT PARTS For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) 4394425... - Page 18 UNIT PARTS For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2150347 Union 486692 Speed Nut 488687 Screw 1108179 Fan, Blade 2157396 Unit Mounting Following Parts Not Illustrated 2164504 Condenser Frame Assembly 2181709 Unit, Harness and Optional Parts Not Included 489464 Screw 548695 Fan, Motor Bracket...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) 4394425... - Page 20 ICEMAKER PARTS For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) Illus. Part DESCRIPTION 489084 Screw 2182015 Fitting, Water Tube 488878 Clamp, Tube 2181939 Insert, Tube 628379 Clip, Fuse 2181940 Tube, Water 1106508 Seal, Gasket 489478 Screw 2181926 Valve, Solenoid 627018 Nut, Compression 2171943 Tube, Water Inlet 489385 Tube Clamp...
-
Page 21: Air Flow Parts
AIR FLOW PARTS For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) Illus. Part DESCRIPTION 2155594 Fan Scroll 2155590 Retainer, Fan Motor 2161231 Air Scoop 2182063 Air Duct Freezer 2162404 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 1115381 Duct, Icemaker 2161478 Harness, Fan Evaporator, And Heater, Bi−Metal 2155789 Gasket Cover... - Page 22 PARTS NOT ILLUSTRATED For Models: KSRS25FDWH02, KSRS25FDAL02 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Refinishing Material LITERATURE PARTS Parts Not Illustrated and Optional Parts (Not Included) 799340 Enamel, Black LIT2194692 Use & Care Guide (1 Qt. Uncut) LIT2194630 Service &...
