- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRS25FTWH01, KSRS25FTBL01, KSRS25FTSS01, KSRS25FTBT01, KSRS25FTMS01 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) 04−08 Printed In U.S.A. (rrm) Part No. W10132056 Rev.A...
-

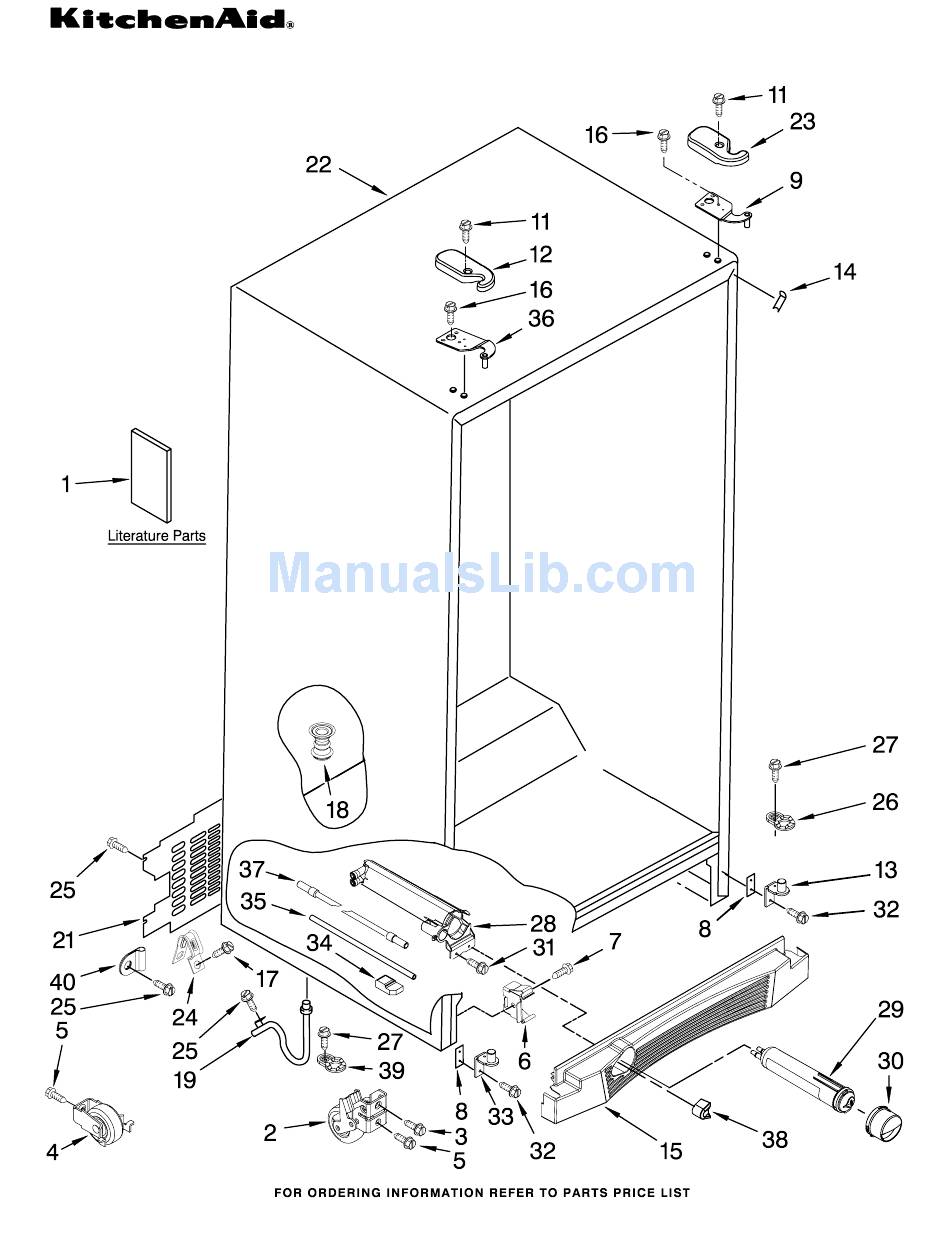

Page 2: Cabinet Parts
For Models: KSRS25FTWH01, KSRS25FTBL01, KSRS25FTSS01, KSRS25FTBT01, KSRS25FTMS01 (White) Illus. Part DESCRIPTION Literature Parts 2318939 Energy Guide 2318586 Owner’s Manual 2303925 Service Sheet 2303929 Wiring Sheet 2220407 Modular Icemaker Service Sheet 2308395 Instruction Sheet, Door Removal 2254628 Front Roller (2) 3400517 Screw... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSRS25FTWH01, KSRS25FTBL01, KSRS25FTSS01, KSRS25FTBT01, KSRS25FTMS01 (White) W10132056 (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2255612 Escutcheon, Meat Pan Control 2301339 Slide Meat Pan Control 2257741 Louver 2301235 Slide, Door... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRS25FTWH01, KSRS25FTBL01, KSRS25FTSS01, KSRS25FTBT01, KSRS25FTMS01 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) Illus. Part DESCRIPTION 2301072 Frame Assembly (2) 2301023 Snack Bin Asm (Includes 24 & 25) 2301567 Cover, Crisper (Includes 11, 12, 16, 17, 19 & 20) -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSRS25FTWH01, KSRS25FTBL01, KSRS25FTSS01, KSRS25FTBT01, KSRS25FTMS01 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) W10132056... - Page 6 FREEZER LINER PARTS For Models: KSRS25FTWH01, KSRS25FTBL01, KSRS25FTSS01, KSRS25FTBT01, KSRS25FTMS01 (White) Illus. (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) Part DESCRIPTION Liner (Not A Seviceable Part) 2301139 Basket, Tall 3400893 Screw 2301134K Front, Basket 2205837K Shelf (2) 2301140 Basket, Sloped 8534064 Screw (12)
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRS25FTWH01, KSRS25FTBL01, KSRS25FTSS01, KSRS25FTBT01, KSRS25FTMS01 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) W10132056... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRS25FTWH01, KSRS25FTBL01, KSRS25FTSS01, KSRS25FTBT01, KSRS25FTMS01 (White) Illus. 100 W10127741 Ice Container (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) Part DESCRIPTION 2305336 Ice Bin 2305294 Crusher Bin 2320327 Auger 2258220 Washer 1119007 Spacer, Flat (4)
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRS25FTWH01, KSRS25FTBL01, KSRS25FTSS01, KSRS25FTBT01, KSRS25FTMS01 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) W10132056... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRS25FTWH01, KSRS25FTBL01, KSRS25FTSS01, KSRS25FTBT01, KSRS25FTMS01 (White) Illus. (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) Part DESCRIPTION Refrigerator Door (Includes Item #6) 2313299W White 2313299B Black 2301089S Stainless Steel 2313299T Biscuit 2301089SAP Monochromatic Stainless 2301486 Door Compartment...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRS25FTWH01, KSRS25FTBL01, KSRS25FTSS01, KSRS25FTBT01, KSRS25FTMS01 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) W10132056... - Page 12 FREEZER DOOR PARTS For Models: KSRS25FTWH01, KSRS25FTBL01, KSRS25FTSS01, KSRS25FTBT01, KSRS25FTMS01 (White) Illus. (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2318915W White 2318915B Black 2318915SB Stainless Steel 2318915T Biscuit 2318915SAP Monochromatic Stainless...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRS25FTWH01, KSRS25FTBL01, KSRS25FTSS01, KSRS25FTBT01, KSRS25FTMS01 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) W10132056... - Page 14 DISPENSER FRONT PARTS For Models: KSRS25FTWH01, KSRS25FTBL01, KSRS25FTSS01, KSRS25FTBT01, KSRS25FTMS01 (White) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2308165 Ferrite Bead 2305202 Bracket, Motor 2305242 Connector, Door Bracket 2305262 Motor, Ice Door 2305258 Door, Ice 2305204 Support, Ice Door 4449745 Screw (4)
-
Page 15: Air Flow Parts
For Models: KSRS25FTWH01, KSRS25FTBL01, KSRS25FTSS01, KSRS25FTBT01, KSRS25FTMS01 (White) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer Fan Motor 2313359 Air Duct, Upper 2198580 Air Duct Freezer 2319914 Bi−metal, Defrost 2315549 Fan Motor 2169142 Fan Blade 2188819 Thermister 2176759 Fan Grommet (2) -
Page 16: Control Parts
For Models: KSRS25FTWH01, KSRS25FTBL01, KSRS25FTSS01, KSRS25FTBT01, KSRS25FTMS01 (White) Illus. Part DESCRIPTION 2212005 Control Box 2219875 Switch 3196537 Screw (4) 2216879 Cover, Control Box 2321728 Electronic Control CONTROL PARTS (Black) (Stainless Steel) Illus. Part DESCRIPTION 8281244 Screw (4) 940014 Hole Plug... -
Page 17: Unit Parts
UNIT PARTS For Models: KSRS25FTWH01, KSRS25FTBL01, KSRS25FTSS01, KSRS25FTBT01, KSRS25FTMS01 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) W10132056... - Page 18 For Models: KSRS25FTWH01, KSRS25FTBL01, KSRS25FTSS01, KSRS25FTBT01, KSRS25FTMS01 (White) Illus. Part DESCRIPTION 2225834 Fan, Blade 3 W10121484 Condenser Assembly 489464 Screw 2216914 Clip, Condenser 2217194 Heat Shield And Drain Pan 2205765 Tube Suction 2169104 Insulation, Sound 8533993 Screw 2255199 Clip, Retaining 2319792 Start−Device,...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSRS25FTWH01, KSRS25FTBL01, KSRS25FTSS01, KSRS25FTBT01, KSRS25FTMS01 (White) (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) W10132056... - Page 20 ICEMAKER PARTS For Models: KSRS25FTWH01, KSRS25FTBL01, KSRS25FTSS01, KSRS25FTBT01, KSRS25FTMS01 (White) Illus. (Black) (Stainless Steel) (Biscuit) (Monochromatic Stainless) Part DESCRIPTION 2256096 Fitting and Water Tube 628379 Clip, Fuse 489478 Screw (3) 2305225 Smart Valve 2174358 Cover 488649 Screw 2255835 Mold & Heater...
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSRS25FTWH01, KSRS25FTBL01, KSRS25FTSS01, KSRS25FTBT01, KSRS25FTMS01 (White) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 350942 Primer, White 350939 Black 350930 White 4392901 Biscuit 8171357 Graphite PAINT, TOUCH−UP (1/2oz.) 72017 White 4392899 Biscuit 72032 Black 80051 Graphite...
