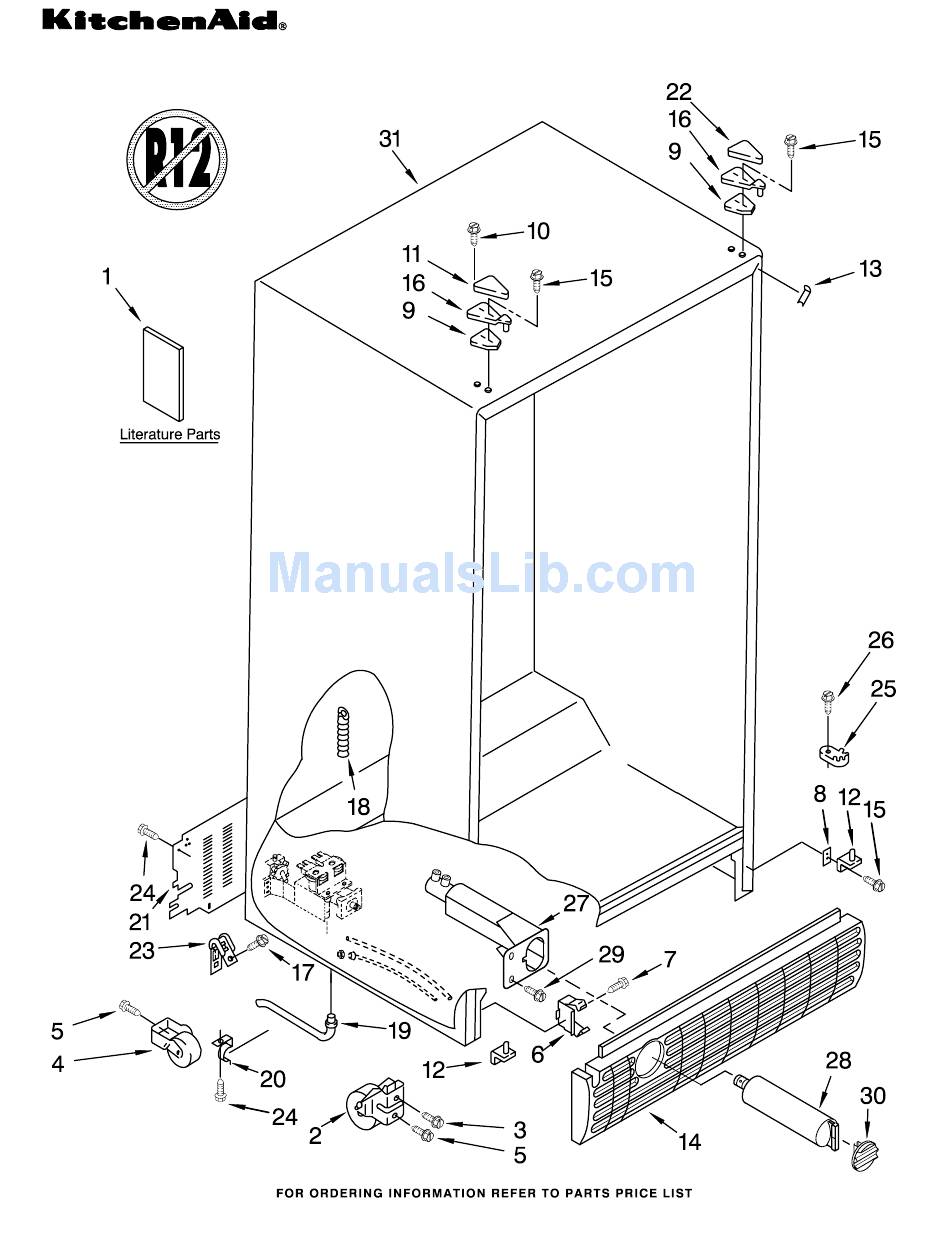

- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRS25FGWH03, KSRS25FGBL03, KSRS25FGBT03 (White) (Black) (Biscuit) 5−00 Printed In U.S.A. (mek) Part No. 4398704...
-
Page 2: Cabinet Parts
CABINET PARTS For Models: KSRS25FGWH03, KSRS25FGBL03, KSRS25FGBT03 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Hinge Cover Hinge Cover LITERATURE PARTS 1129262 White 1119787 White 2151694 Black 1 LIT2206106 Use & Care Guide 2155938 Black 2186858 Biscuit 2186857 Biscuit LIT2200279 Service &... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSRS25FGWH03, KSRS25FGBL03, KSRS25FGBT03 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2182147 Louver 2171846 Release Valve 2196485 Stud Assembly 3400894 Screw 2196483 Stud Assembly 2181796 Ladder, Shelf (2) 8281158 Screw 486298 Screw (2) -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRS25FGWH03, KSRS25FGBL03, KSRS25FGBT03 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2195978 Shelf Assembly, Cantilever (3) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2161491 Cover, Meat Pan (Includes Items 13, 14 & 15) 2209677 Snack Pan 2179243 Trim, Handle 2189526 Glass, Cover 2174250 Cover, Crisper... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSRS25FGWH03, KSRS25FGBL03, KSRS25FGBT03 (White) (Black) (Biscuit) 4398704... - Page 6 FREEZER LINER PARTS For Models: KSRS25FGWH03, KSRS25FGBL03, KSRS25FGBT03 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2174493 Shelf, Top Compartment 2171713 Door, Ice Compartment 940014 Hole Plug 8281158 Screw 842534 Clip, Air Duct (2) 2196206 Support, Stud (4) 2196483 Stud Assembly 2176134 Grommet (2) Slide, Container...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRS25FGWH03, KSRS25FGBL03, KSRS25FGBT03 (White) (Black) (Biscuit) 4398704... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRS25FGWH03, KSRS25FGBL03, KSRS25FGBT03 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2183726 Bracket, Motor 2188385 Motor, Dispenser 2152713 Soleniod Assembly 2149100 Guide, Solenoid 2186815 Wiring Assembly, Ice Dispenser 489399 Screw 2205716 Coupling, Motor 489478 Screw 2162085 Socket, Light 2196091 Ice Container 983668 Coupling, Conveyor...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRS25FGWH03, KSRS25FGBL03, KSRS25FGBT03 (White) (Black) (Biscuit) 4398704... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRS25FGWH03, KSRS25FGBL03, KSRS25FGBT03 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2194233W White 2194233B Black 2194233T Biscuit 2195497 Load, Lock 2182399 Door, Compartment 2193409 Holder, Beverage 2165792 Butter Dish Insert, Handle 2173825 White 2173829 Black 2186863T Biscuit Door Gasket,...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRS25FGWH03, KSRS25FGBL03, KSRS25FGBT03 (White) (Black) (Biscuit) 4398704... - Page 12 FREEZER DOOR PARTS For Models: KSRS25FGWH03, KSRS25FGBL03, KSRS25FGBT03 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2204268W White 2204268B Black 2204268T Biscuit Retainer, Insert 2194777W White 2194777B Black 2194777T Biscuit End Cap (2) 2194778W White 2194778B Black 2194778T Biscuit 489463 Screw...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRS25FGWH03, KSRS25FGBL03, KSRS25FGBT03 (White) (Black) (Biscuit) 4398704... - Page 14 DISPENSER FRONT PARTS For Models: KSRS25FGWH03, KSRS25FGBL03, KSRS25FGBT03 (White) (Black) (Biscuit) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 489101 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180352 Door, Ice 2180208 Door Mechanism Assembly 2180223 Mechanism Delay Grille, Overflow 2180323 White 2180325 Black 2186860 Biscuit...
-
Page 15: Air Flow Parts
AIR FLOW PARTS For Models: KSRS25FGWH03, KSRS25FGBL03, KSRS25FGBT03 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2161231 Air Scoop 2209606 Gasket 2203593 Air Duct Freezer 2149299 Fan Motor 2169142 Fan Blade 2209607 Gasket 2176759 Fan Grommet (2) 2182146 Duct, Icemaker 2186800 Harness, Fan Evaporator, And... -
Page 16: Control Parts
CONTROL PARTS For Models: KSRS25FGWH03, KSRS25FGBL03, KSRS25FGBT03 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2200135 Control Box 2172940 Window 2200441 Control Box 2182150 Tube Barrier, 2172906 Grommet, Light Bar Harness 2161466 Slide, Thermostat Thermostat (RC) 2200097 Retainer, 489084 Screw (2) 489214 Screw (3) -
Page 17: Unit Parts
UNIT PARTS For Models: KSRS25FGWH03, KSRS25FGBL03, KSRS25FGBT03 (White) (Black) (Biscuit) 4398704... - Page 18 UNIT PARTS For Models: KSRS25FGWH03, KSRS25FGBL03, KSRS25FGBT03 (White) (Black) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 489427 Screw 1110674 Tray, Evaporator 486692 Speed Nut 2149294 Heat Shield 227991 Wire Connector 2190685 Fan, Blade 2199167 Drier 488649 Screw 2204242B Condenser 2183455 Compressor 2196152 Union...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSRS25FGWH03, KSRS25FGBL03, KSRS25FGBT03 (White) (Black) (Biscuit) 4398704... - Page 20 ICEMAKER PARTS For Models: KSRS25FGWH03, KSRS25FGBL03, KSRS25FGBT03 (White) (Black) (Biscuit) Illus. Part DESCRIPTION 489084 Screw 2196157 Fitting, Water Tube 2186493 Tube, Filter Outlet 2186492 Tube, Filter Inlet 628379 Clip, Fuse 2200083 Nut, Compression 2181940 Tube, Water 489478 Screw 2205762 Valve, Solenoid 627018 Nut, Compression 489385 Tube Clamp 2174155 Cover...
- Page 21 PARTS NOT ILLUSTRATED For Models: KSRS25FGWH03, KSRS25FGBL03, KSRS25FGBT03 (White) (Black) (Biscuit) Illus. Part Illus. Part DESCRIPTION DESCRIPTION Miscellaneous Parts Not Illustrated and Optional Parts (Not Included) 212643 Sealer, Gum (4 Feet) Customer Touch−Up Material 479502 Tape, Vinyl (3/4 x 108") 350942 Primer, White 876370 Kit, Insulation (13 Oz.
