Perle Fast Fiber to Fiber
Media Converters

Installation Guide

S-100MM-XXXXX
P/N 5500312-10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S-100MM-XXXXX and is the answer not in the manual?

Questions and answers

Summary of Contents for Perle S-100MM-XXXXX

  • Page 1: Installation Guide

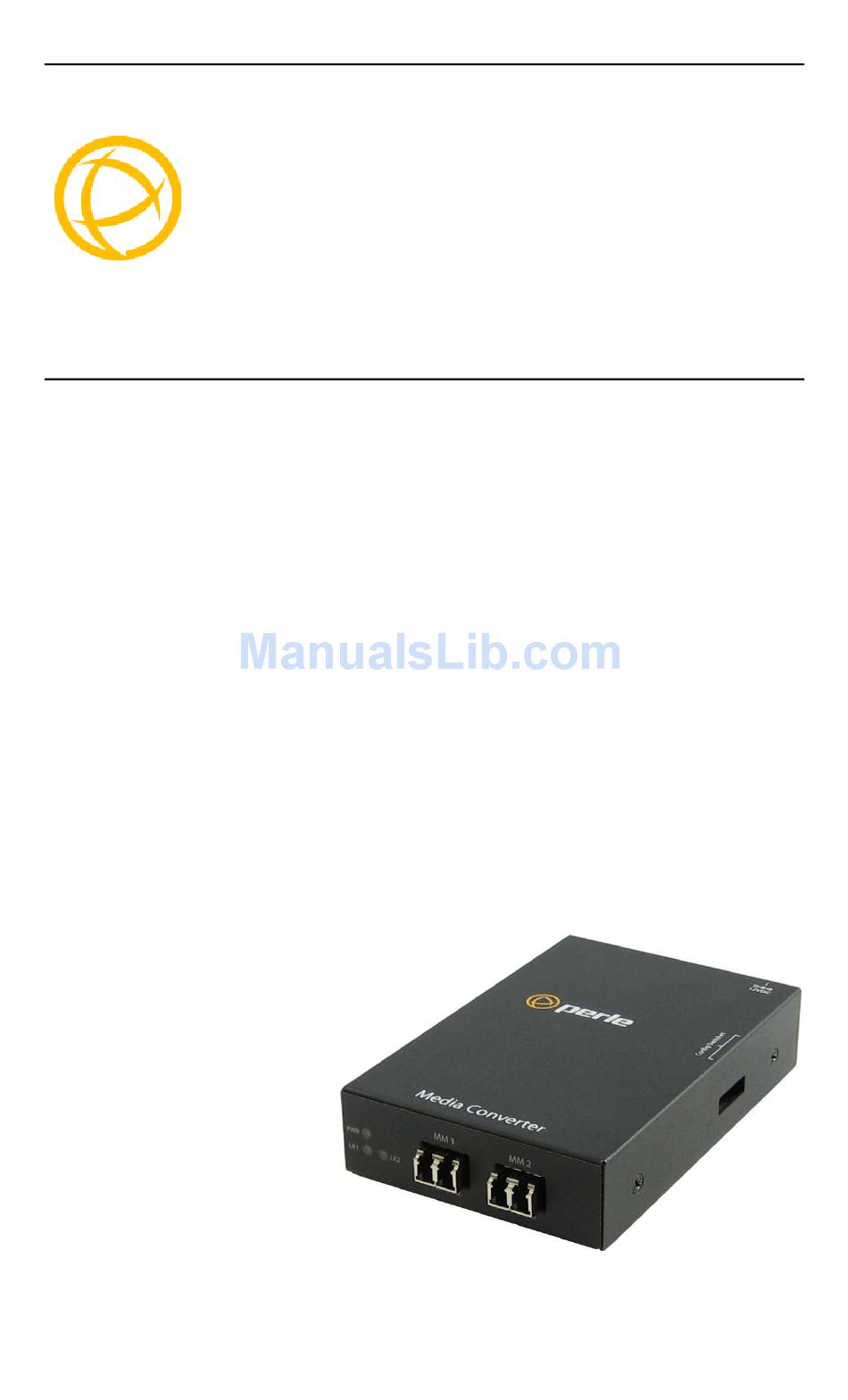

    Perle Fast Fiber to Fiber Media Converters Installation Guide S-100MM-XXXXX P/N 5500312-10...
  • Page 2 S-100MM-S1SC40U 40 km/24.9 mi. 1310/1550 nm S-100MM-S1SC40D 40 km/24.9 mi. 1550/1310 nm Note: Please refer to Perle’s web site for the most up to date Installation guides, models and specifications: http://www.perle.com/ Fast Fiber to Fiber Media Converter – Installation Guide...
  • Page 3: Installation

    Installation The default switch settings (all switches in the UP position) will work for most installations. These are the steps required to configure the Perle Fast Fiber to Fiber media converter: 1. Set the DIP switch settings (optional). 2. Install and connect the fiber cable to port MM1.
  • Page 4: Dip Switch Settings

    DIP Switch Settings Link Mode (Switch 1) Switch Position Mode Up (default) Link Pass-Through Mode Down Standard Mode Link Pass-Through: In this mode, the link state on one fiber connection is directly reflected through the media converter to the other fiber connection. For example, if a Far End Fault (FEF) indication is received on port MM1, the media converter in turn sends a signal to turn off the transmitter on port MM2/SM2.
  • Page 5 Note: This switch needs to be set to either generate or detect the FEF signal. Illustration of the FEF feature Media Converter A Configuration Link Mode–Standard Mode Far-End Fault–Enabled Media Converter B Configuration Link Mode–Link Pass Through Mode Far-End Fault–Enabled Sequence of Events 1.
  • Page 6 Remote Loopback Fiber 1 (Switch 3) Switch Mode Position Up (default) Disabled Down Enabled Disabled: The loopback feature is disabled. This is the normal position for regular operation. The switch must be set to this position in order for data to pass through the media converter. Enabled: This is a test mode.
  • Page 7 Connect the fiber cable from one Media Converter Module to another Media Converter/switch/fiber device. Powering up the Media Converter 1. Connect the Perle supplied power adapter to the media converter. 2. Turn on the power at source. 3. Check that the PWR LED light is lit and on solid.
  • Page 8: Operation

    Operation Status LED The Perle Fast Fiber to Fiber Media converters have three single colored status LEDs located on the front panel of the unit. PWR - Power/Test On: Power is on and in normal operation. Blinking slowly: the unit is in loopback mode.
  • Page 9: Troubleshooting

    Troubleshooting General Ensure power is supplied to the media converter – use of the supplied power adapters is highly recommended. Ensure both devices on either end of the fiber are compatible. If using a simplex fiber connection, ensure that you have both an Upstream (U) and Downstream (D) media converter.
  • Page 10: Technical Specifications

    Technical Specifications The following applies to all S-100MM media converters: Power Input/Consumption 12V DC /3.5 W Operating Temperature: 0° C to 50° C (32° F to 122°F) Storage Temperature: -25° C to 70° C (-13° F to 158° F) Operating Humidity: 5% to 90% non-condensing Storage Humidity: 5% to 95% non-condensing...
  • Page 11 Max: -3 Max: -3 Fiber Cabling Requirements: 50/125 microns 62.5/125 microns 9/125 microns Note: Please refer the product page on the Perle website for the most up to date specifications. http://www.perle.com/ Fast Fiber to Fiber Media Converter – Installation Guide...
  • Page 12: Compliance Information

    Compliance Information This product has been found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 13: Warranty Registration

    Warranty / Registration Perle’s standard Lifetime Warranty provides customers with return to factory repairs for Perle products that fail under the conditions of the warranty coverage. Details can be found at: http://www.perle.com/support_services/warranty.shtml Contacting Technical Support Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below.
