Page 1: Installation Guide

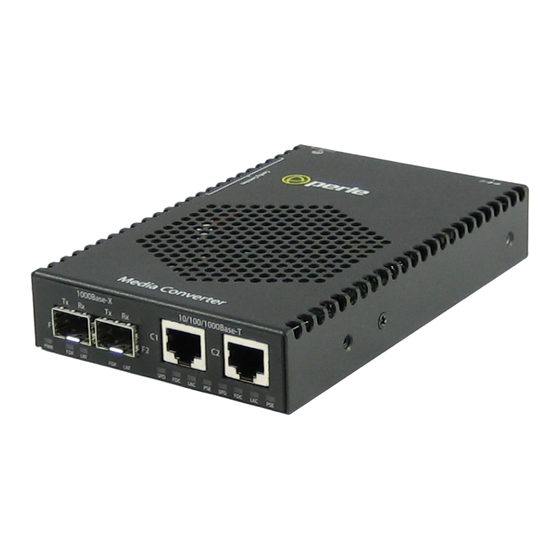

Perle Type 4 High-Power PoE 10/100/1000 Ethernet Media Converters Installation Guide S-1110HP S-1110HP-XT S-1110HP-SFP S-1110HP-SFP-XT S-1110DHP S-1110DHP-XT S-1110DHP-SFP S-1110DHP-SFP-XT S-1110HP-DSFP S-1110HP-DSFP-XT S-1110DHP-DSFP S-1110DHP-DSFP-XT P/N 5500444-10 (Rev F) -
Page 2: Package Contents
Perle High-Power Media Converter. Familiarity with the concepts and terminology of Ethernet and local area networks is required. Note: any references to the S-1110HP covers all models in this product line unless noted. Purpose This document describes the hardware and physical characteristics of the Perle S-1110HP media converter. -
Page 3: Cautions And Warnings
Limited-energy circuit according to EN/IEC 61010-1 Warning: If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. Perle Type 4 High-Power PoE PSE Ethernet Media Converter Installation Guide... -
Page 4: Précautions Et Avertissements
Warning: In case of malfunction or damage, no attempts at repair should be made by the user. All repairs need to be made by a qualified Perle representative. Do not dismantle this product. Warning: Transient protection shall be provided that is set at a level not exceeding 140% of the peak rated voltage value at the supply terminals to the equipment. - Page 5 à l'œil ou à la cécité. Attention: l'Utilisation de commandes, de réglages ou l'exécution de procédures autres que celles spécifiées dans ce guide peut entraîner une exposition dangereuse aux radiations. Perle Type 4 High-Power PoE PSE Ethernet Media Converter Installation Guide...
- Page 6 Power PoE devices. The fiber connection can be either single mode (SM) or multimode (MM) and can operate over different wavelengths and distances, depending on the model selected (see table below). Visit Perle’s website for the most up to date Installation guides models and specifications. http://www.perle.com/...
- Page 7 SM 80 km/50 mi. S-1110DHP-SC80D 1590/1510 S-1110DHP-SC120 SC/ST SM 120 km/75 mi. 1550 S-1110DHP-ST120 S-1110DHP-SC120U 1510/1590 SM 120 km/75 mi. S-111D0HP-SC120D 1590/1510 S-1110DHP-SC160 SC/ST SM 160 km/100 mi. 1550 S-1110DHP-ST-160 Perle Type 4 High-Power PoE PSE Ethernet Media Converter Installation Guide...
- Page 8 10 km/6.2 mi S-1110DHP-ST10-XT 1310 10 km/6.2 mi S-1110DHP-SC10U-XT 1310/1490 S-1110DHP-SC10D-XT 10 km/6.2 mi. S-1110HP-DSFP-XT Note 1 S-1110DHP-SFP-XT Note 1 Note 1: Fiber characteristics will depend on the SFP fiber module selected. Perle Type 4 High-Power PoE Ethernet Media Converter Installation Guide...
-
Page 9: Installation
J5 for port 2). By covering or strapping pins 1 and 2, the S- 1110HP will operate as an MDIX device. By covering or strapping pins 2 and 3, the S-1110HP will automatically detect the Ethernet cable’s polarity. Removing the strapping is the same as AUTO. -
Page 10: Dip Switches
Note: The default jumper setting is AUTO DIP Switches The DIP switches are accessible through the opening in the side of the enclosure. Bank 1 Bank 2 Bank 1 Perle Type 4 High-Power PoE Ethernet Media Converter Installation Guide... -
Page 11: Dip Switch Settings
If the copper link partner does not support Auto negotiation, the S- 1110HP will parallel detect to 10 or 100 Mbps and force Half Duplex mode as per IEEE specifications. Perle Type 4 High-Power PoE PSE Ethernet Media Converter Installation Guide... - Page 12 Enabled: If the media converter detects a loss of signal on the fiber receiver, it will immediately disable its fiber transmitter signal on the same port. This, in effect, notifies the fiber link partner that Perle Type 4 High-Power PoE Ethernet Media Converter Installation Guide...
- Page 13 Note: This feature only takes effect if Fiber Negotiation has been turned off. Disabled: The media converter will not monitor for or generate Fiber Fault Alert. Perle Type 4 High-Power PoE PSE Ethernet Media Converter Installation Guide...
- Page 14 Duplex setting for copper port 1. Full Duplex: The media converter will be set to Full Duplex mode. Half Duplex: The media converter will be set to Half Duplex mode. Perle Type 4 High-Power PoE Ethernet Media Converter Installation Guide...
- Page 15 Note When Auto Negotiation (SW1) is set to Off, the media converter will use this switch setting for copper port 1 speed 100: When Switch 5 is in the Up position, the S-1110HP will force the speed to 100 Mbps.
-
Page 16: Half Duplex
These switches must be set in order to enable the power sourcing function and to indicate the type of device detection required. If the device type is unknown, the default should be used as per IEEE802.3af/at/bt standards. Perle Type 4 High-Power PoE Ethernet Media Converter Installation Guide... - Page 17 1, fiber port 2 will be activated within 50 ms. The MAC caching table for fiber port 2 will be cleared and the media converter will begin to re-learn MAC address routing. See Redundant Primary for information on link connections. Perle Type 4 High-Power PoE PSE Ethernet Media Converter Installation Guide...
- Page 18 Enabled: Fiber port 1 will be designated as the Primary fiber port. If a loss of link occurs on fiber port 1 which causes a switch over to fiber port 2, the S-1110HP will monitor fiber port 1 for link restoration. Once the link is re-established and remains so for 6 seconds, fiber port 1 will be re-activated and fiber port 2 will be put back into stand-by-mode.
-
Page 19: Installing The Copper Cable
2. Connect the RJ-45 cable between the Perle media converter and the device. Note: The Perle media converter supports Auto-MDIX which allows connection of a straight-through or cross-over Ethernet cable. Grounding the Media Converter If your installation requires additional grounding the following procedure can be followed. - Page 20 2. Attach the power cord relief clip to the chassis and secure with the provided screw. 3. Plug the power cord into the DC power connector at the rear of the chassis. Perle Type 4 High-Power PoE Ethernet Media Converter Installation Guide...
- Page 21 4. Plug the other end of the power cord into an appropriate power outlet. Powering up the Perle Media Converter 1. Connect the Perle supplied power adapter to the media converter. 2. Connect the power adapter to a power source. 3. Check that the PWR LED light is lit.
-
Page 22: Status Leds
Off – No fiber link present Blinking (slow) – Fiber link appears functional – Fiber link has been brought down by Smart Link Pass-Through Blinking (fast) – Fiber link up and receiving data Perle Type 4 High-Power PoE Ethernet Media Converter Installation Guide... - Page 23 PSE LEDs 1 blink PD Capacitance too high 2 blinks PD Resistance too low or short circuit 3 blinks PD Resistance too high Perle Type 4 High-Power PoE PSE Ethernet Media Converter Installation Guide...
-
Page 24: Other Features
Integrated Pause signalling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed with data. The Perle media converter can generate and respond to Pause messages. If Auto negotiation is set to On, the media converter will advertise symmetrical and asymmetrical pause. -
Page 25: Troubleshooting
Troubleshooting General 1. Ensure power is supplied to the media converter. For S-1110HP models see the Perle provided power supply. For Extended Temperature models with a terminal block, ensure the external power source is correct. See the Technical Specification section in this guide. - Page 26 No Power to the PD 1. Ensure that the power supply being used, is the one provided with the product. 2. Ensure there is power being supplied to the outlet. Perle Type 4 High-Power PoE Ethernet Media Converter Installation Guide...
-
Page 27: Technical Specifications
FCC 47 Part 15 Class A ICES-003 EN55032 (CISPR32) EN61000-6-4 EN55024 IEC/EN 61000-4-2 (ESD): Contact: EN 61000-4-3 (RS) EN 61000-4-4 (EFT) EN 61000-4-5 (Surge EN 61000-4-6 (CS) EN 61000-4-8 (PFMF) EN 61000-4-11 Perle Type 4 High-Power PoE PSE Ethernet Media Converter Installation Guide... -
Page 28: Poe Specifications
Power over 2 pairs 2 pairs 2 pairs, class 0-4 4 pairs, class 7-8 4 pairs, class 0-4 4 pairs, class 5-6 Nominal Current 350mA 600mA 600mA 1000mA Perle Type 4 High-Power PoE Ethernet Media Converter Installation Guide... -
Page 29: Fiber Optic Specifications
(DB) Min: -9.5 Min: -17 S-1110DHP-SC05 TX: 850 Max: -4 Max: -3 S-1110DHP-ST05 RX: 850 Min: -9.5 Min: -17 S-1110DHP-SC2 TX: 1310 Max: -4 Max: -3 S-1110DHP-ST2 RX: 1550 Perle Type 4 High-Power PoE PSE Ethernet Media Converter Installation Guide... - Page 30 Extended Temperature (XT) 2 port models Dual HP Wavelength Budget Power Power Mode Dual SFP (TX/RX) nm (DB) (DB) Min: -9.5 Min: -17 S-1110HP-SC05-XT TX: 850 Max: -4 Max: -3 S-1110HP-ST05-XT RX: 850 Perle Type 4 High-Power PoE Ethernet Media Converter Installation Guide...
- Page 31 Extended Temperature (TX) 4 port models Dual HP Wavelength Budget Power Power Mode Dual SFP (TX/RX) (DB) (DB) S-1110DHP-DSFP- Note 1 Note 1: Fiber characteristics will depend on the SFP fiber module selected. Perle Type 4 High-Power PoE PSE Ethernet Media Converter Installation Guide...
-
Page 32: Contacting Technical Support
Warranty / Registration Perle’s standard Lifetime Warranty provides customers with return to factory repairs for Perle products that fail under the conditions of the warranty coverage. Details can be found at: http://www.perle.com/support_services/warranty.shtml Contacting Technical Support Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below.
