Perle S-1110HP-XT Manual

S-1110HP-XT Hi-PoE Media Converters
perle.com/products/media-converters/s-1110hp-xt-hi-poe-media-converters.shtml
IEEE 802.3bt Compliant PoE & Fiber Media Conversion
10/100/1000Base-T to 100/1000Base-X Fiber
Dual Fiber SC/ST or Single Fiber SC Connectors
Supplies IEEE 802.3bt Hi-PoE PSE (up to 100W) power
Compatible with IEEE 802.3af PoE and IEEE 802.3at PoE+ PoE devices
Dual or Single 10/100/1000Base-T PoE ports
Advanced features: PD Reset, Fiber redundancy, Smart Link Pass-Through, Fiber
Fault Alert, Auto-MDIX and Loopback
-40F to +167F (-40C to +75C) extended operating temperature

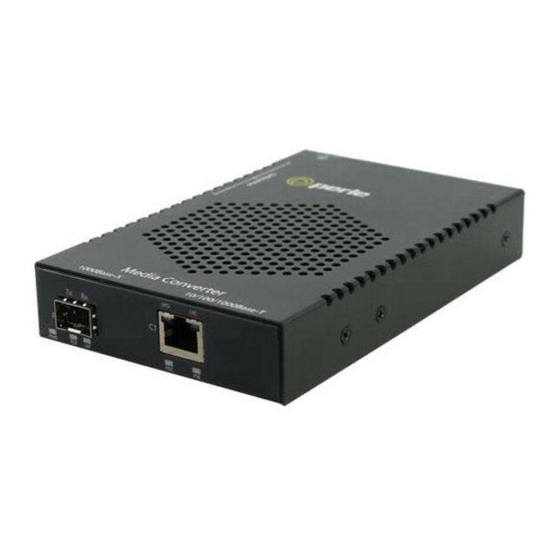

Perle S-1110HP-XT Fiber Media Converters transparently connect copper to fiber while providing up to 100 Watts of IEEE
802.3bt compliant Hi-PoE PSE power to standards-based compliant devices. Equipment found in traffic management, oil
and gas pipelines, weather tracking, industrial and outdoor applications must function in temperatures that cannot be
supported by a commercial based media converter. With an operating temperature -40F to +167F (-40C to +75C) this Hi-
PoE Media Converter is ideal for use with industrial devices subjected to harsh environments and severe temperatures such
as pan-tilt-zoom (PTZ) security cameras with heaters, 802.11ax/ac wireless access points, alarms, traffic controllers,
sensors and tracking devices.
Perle Hi-PoE Media Converters are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that
carry Ethernet data, Perle Hi-PoE media converters provide power to Powered Devices (PDs) that support the IEEE 802.3bt
PoE standard (up to 100W of power) or pre-standard solutions including UPoE, 4PPoE, PoE++, UltraPoE, 4 Pair PoE, etc.
As this standard is fully backwards compatible with the existing IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, all of
those PD's are also supported. The S-1110HP-XT Fiber Media Converter features single or dual 10/100/1000Base-T RJ45
ports to power one or two PD's per converter. Learn more about PoE
S-1110HP-XT Fiber Media Converters come with fixed fiber ports that support multimode or single mode fiber with dual
ST/SC connectors or single strand fiber SC connectors.
extend the life of non-fiber based equipment by enabling data transmission from 10/100/1000Base-T devices over
1000Base-X fiber
extend the distance of an existing network by linking CAT5/6/7 cabling to multimode or single mode fiber up to 10km
protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber.
Network Administrators can "see-everything" with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link
Pass-Through, Fiber Fault Alert, and Loopback. This allows for more efficient troubleshooting and less on-site maintenance.
These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle S-
1110HP PoE Media Converters the smart choice for IT professionals.
S-1110HP-XT Hi-PoE Media Converter Features
