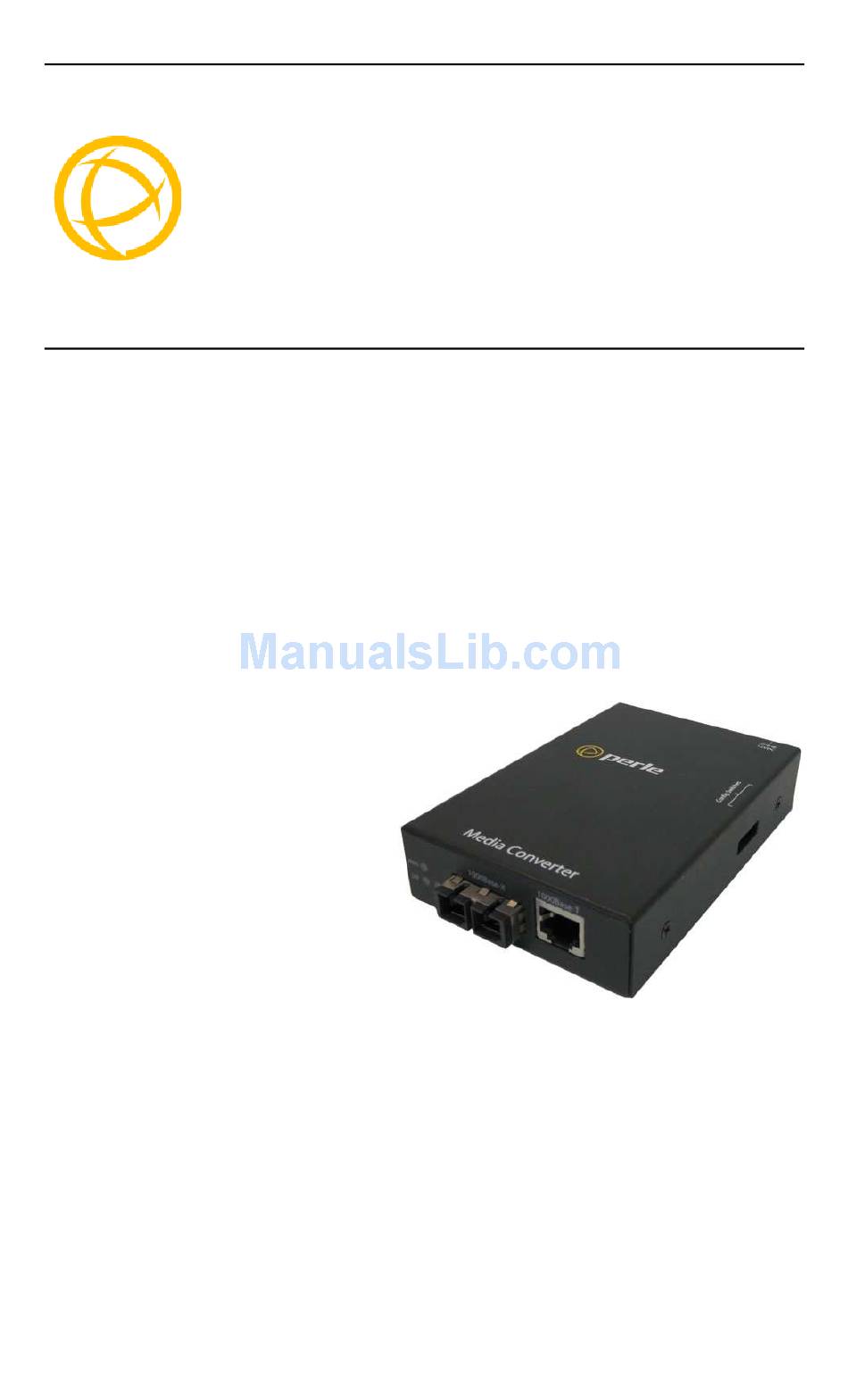

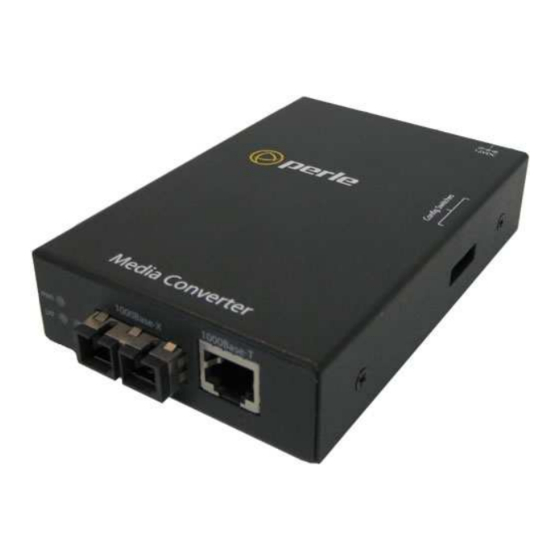

  • Page 1 Perle Gigabit Media Converters Installation Guide S-1000-XXXXXX S-1000-SFP P/N 5500300-19...
  • Page 2 S-1000-SFP Note 1 Note 1: Fiber characteristics will depend on the SFP fiber module selected Note 2: Please visit Perle’s web site for the most up to date Installation guides, models and specifications: http://www.perle.com/ Gigabit Media Converter – Installation Guide...
  • Page 3: Installation

    Installation These are the steps required to configure the Perle Gigabit media converter: Insert SFP Module (SFP Model only) Set the switch settings. (optional) Install and connect the fiber cable. Install and connect the copper cable. Power up the media converter.
  • Page 4: Dip Switch Settings

    Ethernet parameters on both the copper and the fiber connection. This will ensure the most optimal connection parameters will be in effect. If connecting to another Perle Gigabit Media Converter, this parameter should be set to Auto. Off: Fiber Negotiation should only be turned off, if the fiber link partner does not support fiber link negotiations.
  • Page 5 If the installation has a media converter on both ends of the fiber link and both are setup for Smart Link Pass-Through, then a loss of copper link on the far end device will propagate through both media converters and will result in a loss of link at the near end device.
  • Page 6 The following diagram is an illustration of the operation of this feature. (A) – Remote Media Converter setup for Fiber Fault Alert Enabled, Fiber Negotiation – OFF and Link Mode – Normal. (B) – Local Media Converter setup for Smart Link Pass-Through and Fiber Negotiation - OFF (A) loses fiber connection on its receiver (A) disables fiber transmitter...
  • Page 7 Pause (Switch 5) Switch Position Mode Up (default) Enabled Down Disabled Enabled: When Fiber Negotiation has been turned Off (SW 1), the media converter will use this setting for its Ethernet parameter negotiation on the copper connection. With this Pause switch in the Enabled position, the media converter will advertise support for Symmetrical and Asymmetrical Pause.
  • Page 8: Installing The Copper Cable

    Installing the SFP Fiber Module The S-1000-SFP requires an SFP fiber module. 1. Locate the appropriate fiber module and insert the module into the opening. 2. Ensure the SFP module is properly seated. 3. The SFP module may be inserted before or after applying power to the media converter.
  • Page 9 Note: The Perle media converter supports Auto-MDI-X, either a straight-through or cross over Ethernet cable may be used. Powering up the Perle Media Converter 1. Connect the Perle supplied power adapter to the media converter. 2. Turn on the power at source.
  • Page 10: Operation

    Operation Status LED The Perle Gigabit Media converters have three single color status LEDs located on the front panel of the unit. PWR - Power/Test • On: Power is on and the unit is in normal operation mode. • Blinking slowly: the unit is in loopback mode.
  • Page 11: Other Features

    Other Features Default Operating Mode: In the default operating mode (all switches up), the media converter will auto-negotiate on both the fiber and the copper links at the same time, thus achieving the best end-to-end Ethernet operating parameters. If the fiber link is not present, it will still permit the copper link to be established, but will not negotiate a fiber link if the copper link is not present.
  • Page 12: Troubleshooting

    Troubleshooting General • Ensure power is supplied to the media converter – use of the supplied power adapter is highly recommended. • Ensure both devices on either end of the fiber are compatible. If using a single fiber connection, ensure that you have both an Upstream (U) and Downstream (D) media converter.
  • Page 13: Technical Specifications

    Up to 3,048 m (10,000 ft) Weight: 0.3 kg (0.66 lbs) MTBF: S-1000 609,432 hours (with power supply) 337,182 hours S-1000-SFP 745,242 hours (without SFP) (with power supply): 374,991 hours (without SFP) Dimensions: 80 mm x 120 mm x 26 mm Fiber Optic Specifications:...
  • Page 14 Ethernet Copper Cabling Requirements: Category 5 UTP or STP 24-22 AWG Straight through or Ethernet crossover Note: Please refer the product page on the Perle website for the most up to date specifications. http://www.perle.com/ Gigabit Media Converter – Installation Guide...
  • Page 15: Compliance Information

    Compliance Information This product has been found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 16 Warranty / Registration Perle’s standard Lifetime Warranty provides customers with return to factory repairs for Perle products that fail under the conditions of the warranty coverage. Details can be found at: http://www.perle.com/support_services/warranty.shtml Contacting Technical Support Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below.
