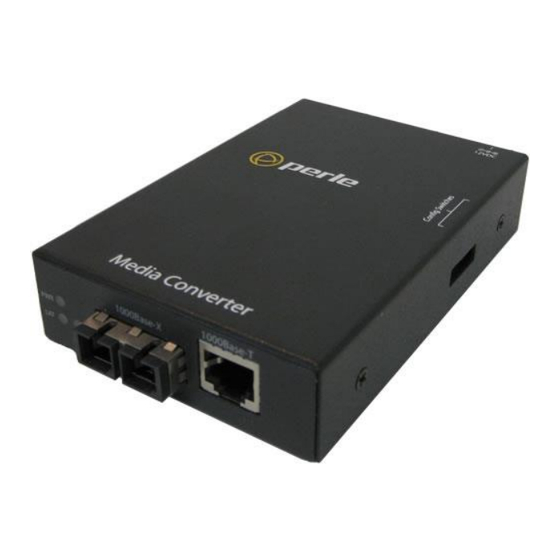

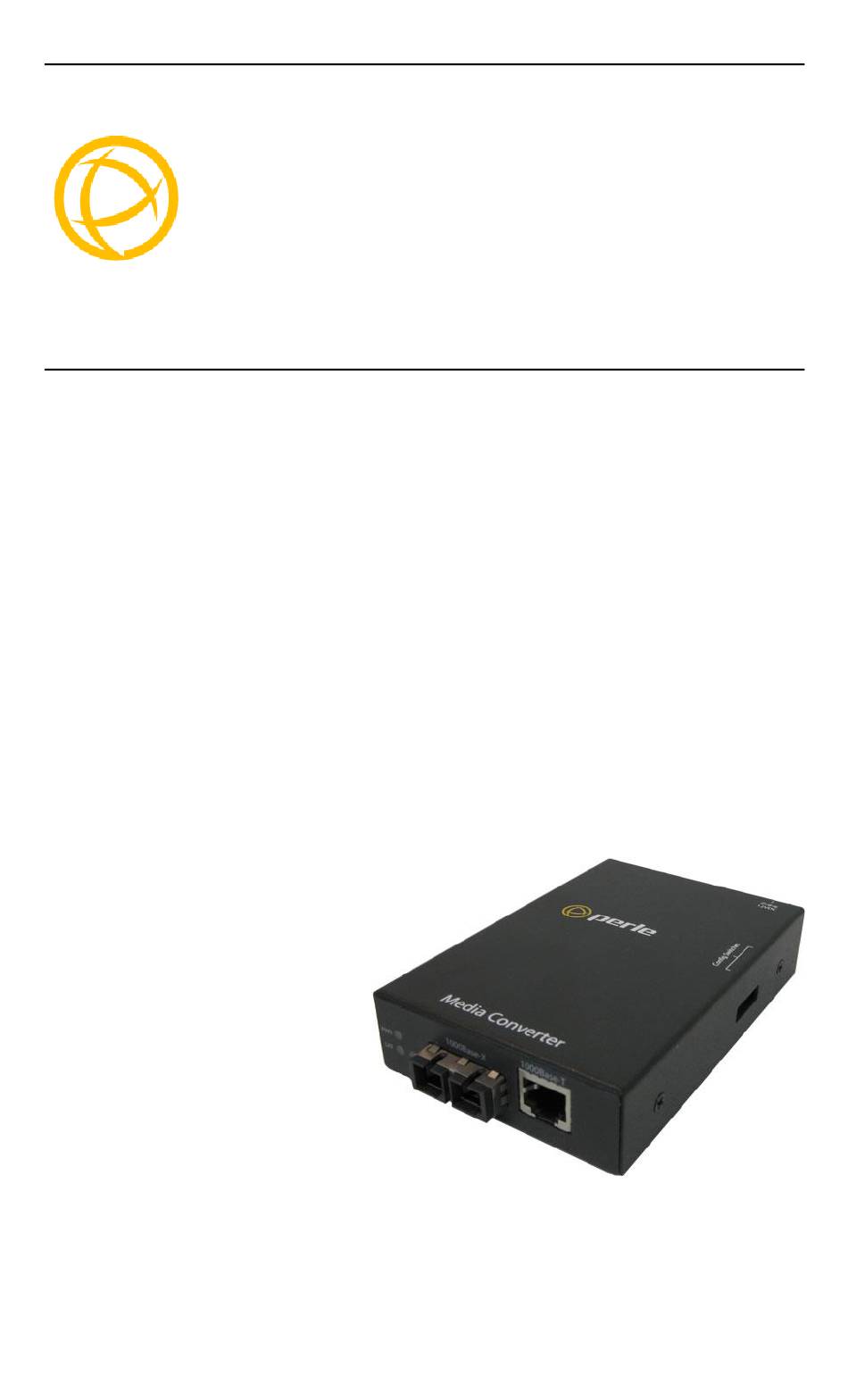

- Page 1 Perle 10/100/1000 Ethernet Media Converters Installation Guide S-1110 S-1110-SFP S-1110-XT Part#5500303-21 (Rev D)
- Page 2 (fiber). The fiber connection can be either single mode (SM) or multimode (MM) and can operate over different wavelengths and distances depending on the model selected (see table below). Perle Media Converters (S-1110) are also available in Extended Temperature models with a Terminal Block connector. Standard Models...
- Page 3 1310/1490 nm S-1110-S1SC10D-XT SM -10 k m/6.2 miles 1490/1310 nm S-1110-SFP-XT Note 1 Note 1: Fiber characteristics will depend on the SFP fiber module selected For more information on Installation guides, models and specifications, see http://www.perle.com/ Perle 10/100/1000 Ethernet Media Converter...
-
Page 4: Installation
Installation The default DIP switch settings (all switches in the UP position) will work for most installations. These are the steps required to configure the Perle S1110 Ethernet media converter: 1. Insert SFP Module.(SFP Model only) 2. Set the AUTO-MDIX jumper setting. (optional) 3. - Page 5 Locate the MDIX-AUTO jumper set as detailed below. automatically detect the Ethernet cable’s polarity. Removing the strapping is the same as AUTO. Note: The default jumper setting is AUTO Perle 10/100/1000 Ethernet Media Converter...
-
Page 6: Dip Switches
IEEE specifications. Off: When the Auto Negotiation switch is set to the OFF position, the media converter will not negotiate the Ethernet parameters with the copper link partner. The parameters used by the media Perle 10/100/1000 Ethernet Media Converter... - Page 7 If the media converter has been set to Smart Link Pass-Through mode, the effect will be the same as FFA, since the link loss on Perle 10/100/1000 Ethernet Media Converter...
- Page 8 Duplex setting for its copper connection. Full: In the Up switch position; the media converter will be set to Full Duplex mode. Half: The media converter will be set to Half Duplex mode. Perle 10/100/1000 Ethernet Media Converter...
- Page 9 This will ensure that the most optimal connection parameters will be in effect. If connecting to another Perle Media Converter, this parameter should be set to Auto. The Media Converter Module will advertise 1000Mbps, Full and Half Duplex, no Pause.
- Page 10 1. Ensure the SFP module is properly seated. 2. The SFP module may be inserted before or after applying power to the media converter 3. Proceed with cable connections. Perle 10/100/1000 Ethernet Media Converter...
- Page 11 Locate a 1000Base-X compliant duplex (2 strands) fiber cable with appropriate connectors. Connect the fiber cables from one media converter to the other media converter/switch/fiber device ensuring that the RX and TX are reversed (crossed) at the opposite end. Perle 10/100/1000 Ethernet Media Converter...
-
Page 12: Installing The Copper Cable
Installing the Copper Cable 1. Locate 10/100/1000Base-T compliant copper cables with male, RJ-45 connectors installed at both ends. 2. Connect the RJ-45 cable between the Perle media converter and the device. Note: The Perle media converter supports Auto-MDIX which allows a straight-through or cross-over Ethernet cable. -
Page 13: Terminal Block Connector
Powering up the Perle Media Converter using the supplied Power Adapter Connect the Perle supplied power adapter to the Media Converter. Connect the power adapter to a power source. Check that the PWR LED light is lit. Terminal Block Connector Ensure the Power Source is off. -
Page 14: Operation
Operation Status LED The Perle 10/100/1000 Rate converting Media converters have six status LEDs located on the front panel of the unit. 100/1000 (copper speed) On – Power is applied to the unit. Green – 1000 Mbps. Blinking (slow) – Loopback Mode Yellow –... -
Page 15: Other Features
Integrated Pause signalling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed. The Perle media converter can generate and respond to Pause messages. Perle 10/100/1000 Ethernet Media Converter... -
Page 16: Troubleshooting
At the remote media converter, the data will be looped back and passed through the fiber, back to the local converter and passed to the copper link. Perle 10/100/1000 Ethernet Media Converter... -
Page 17: Technical Specifications
Power Consumption 6-30 vDC / 2.6W at 12VDC Operating Temperature -40°C to 75°C (-40°F to 167°F) Storage Temperature -40°C to 85°C (-40°F to 185°F) Operating Humidity 5% to 90% non-condensing Storage Humidity 5% to 95% non-condensing Perle 10/100/1000 Ethernet Media Converter... -
Page 18: Fiber Optic Specifications
TX: 1550 Min: -2 Min: -23 S-1110-S2SC70 RX:1550 Max: 5 Max: -3 TX: 1550 Min: -2 Min: -23 S-1110-S2ST70 RX:1550 Max: 5 Max: -3 TX: 1550 Min: Min: -23 S-1110-S2LC70 RX:1550 Max: 5 Max: -3 Perle 10/100/1000 Ethernet Media Converter... - Page 19 Max: -3 Max: -3 S-1110-SFP-XT Note 1 Fiber Cabling Requirements 50/125 microns or 62.5/125 microns 9/125 microns Ethernet Copper Cabling Requirements • Category 5 UTP or STP • 24-22 AWG • Straight through or Ethernet crossover Perle 10/100/1000 Ethernet Media Converter...
-
Page 20: Compliance Information
Warranty / Registration Perle’s standard Lifetime Warranty provides customers with return to factory repairs for Perle products that fail under the conditions of the warranty coverage. Details can be found at: http://www.perle.com/support_services/warranty.shtml...
