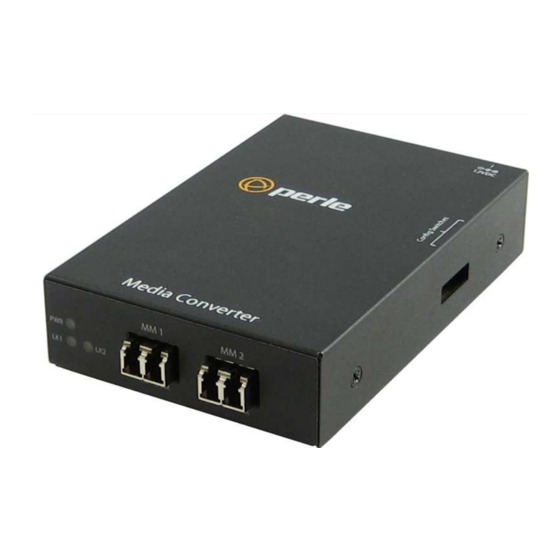

S-1000mm-xxxxxx series gigabit fiber to fiber media converters

Advertisement

Quick Links

Perle Gigabit
Fiber to Fiber
Media Converters

Installation Guide

S-1000MM-XXXXXX
P/N 5500314-11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S-1000MM-XXXXXX and is the answer not in the manual?

Questions and answers

Summary of Contents for Perle S-1000MM-XXXXXX

  • Page 1: Installation Guide

    Perle Gigabit Fiber to Fiber Media Converters Installation Guide S-1000MM-XXXXXX P/N 5500314-11...
  • Page 2 Overview This document contains instructions necessary for the installation and operation of the Perle Gigabit Standalone Fiber to Fiber Media Converters (S-1000MM). These products allow dissimilar 1000Base-X fiber interfaces to connect to one another. These are the fiber to fiber conversion models: •...
  • Page 3: Installation

    120 km/74.6 mi. 1510/1590 nm S-1000MM-S1SC120D 120 km/74.6 mi. 1590/1510 nm Visit Perle’s web site for the most up to date Installation guides, models and specifications: http://www.perle.com/ Installation The default switch setting (all switches in the UP position) will work for most installations.
  • Page 4 MM1 and MM2/SM2 (fiber ports). This will ensure the most optimal connection parameters will be in effect. If connecting to another Perle Media Converter, this parameter should be set to Auto. Off: Fiber negotiation on both fiber ports will be disabled. Fiber Negotiation should only be turned off, if the fiber link partner does not support fiber link negotiations.
  • Page 5 Fiber Negotiation is enabled this switch is ignored. Illustration of the FFA feature Media Converter A Configuration Link Mode–Standard Mode Fiber Fault Alert Media Converter B Configuration Link Mode–Smart Link Pass Through Mode Fiber Fault Alert Perle Gigabit Fiber to Fiber Media Installation Guide...
  • Page 6: Sequence Of Events

    Enabled: This is a test mode. All data received on the receive (RX) fiber connection on port MM/SM2 is looped back to the transmit (TX) fiber connection. Note: Only one fiber interface can be in loopback at a time. Perle Gigabit Fiber to Fiber Media Installation Guide...
  • Page 7 2. Connect the fiber cable from one media converter to the other media converter/switch/fiber device. Powering up the Perle Media Converter 1. Connect the Perle supplied power adapter to the media converter. 2. Turn on the power at source. 3. Check that the PWR LED light is lit.
  • Page 8: Operation

    Operation Status LED The Perle Gigabit Fiber to Fiber Media converters have three single colored status LEDs located on the front panel of the unit. PWR - Power/Test • On: Power is on and the unit is in normal operation mode.
  • Page 9: Troubleshooting

    The link LEDs between the local and remote media converter should be lit. Data should pass through the local converter then over the fiber connection to the remote media converter. Perle Gigabit Fiber to Fiber Media Installation Guide...
  • Page 10: Technical Specifications

    S-1000MM-S2xx70 RX:1550 Max: 5 Max: -3 TX: 1550 Min: 0 Min: -32 S-1000MM-S2xx120 RX: 1550 Max: 5 Max: -9 TX: 1550 Min: 2 Min: -34 S-1000MM-S2xx160 RX: 1550 Max: 5 Max: -9 Perle Gigabit Fiber to Fiber Media Installation Guide...
  • Page 11: Warranty Registration

    Max: -9 Fiber Cabling Requirements 50/125 microns 62.5/125 microns 9/125 microns Note: Please refer the product page on the Perle website for the most up to date specifications. http://www.perle.com/ Warranty / Registration Perle’s standard Lifetime Warranty provides customers with return to factory repairs for Perle products that fail under the conditions of the warranty coverage.
  • Page 12: Compliance Information

    Contacting Technical Support Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below. A Technical Support Query may be made via this web page.
